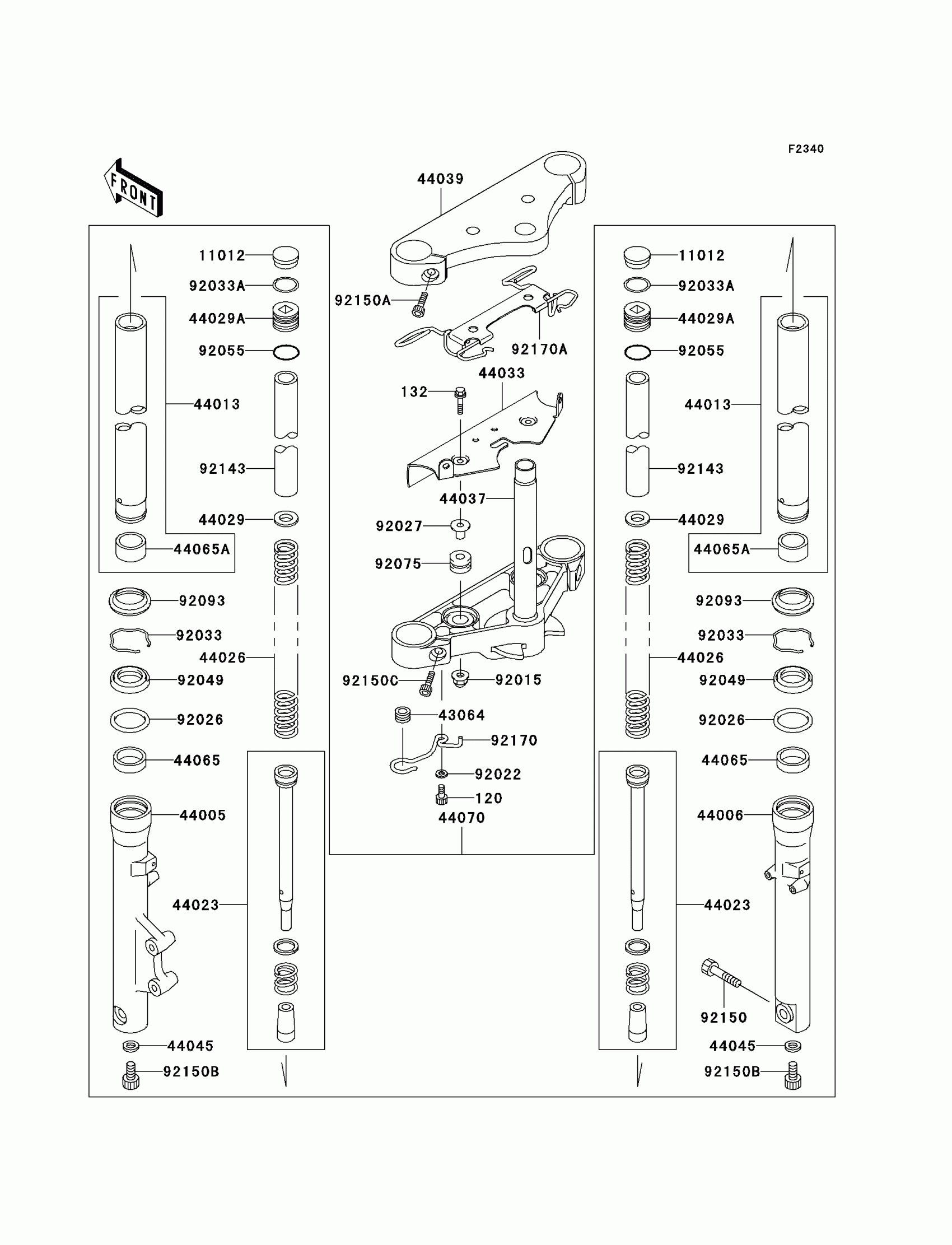

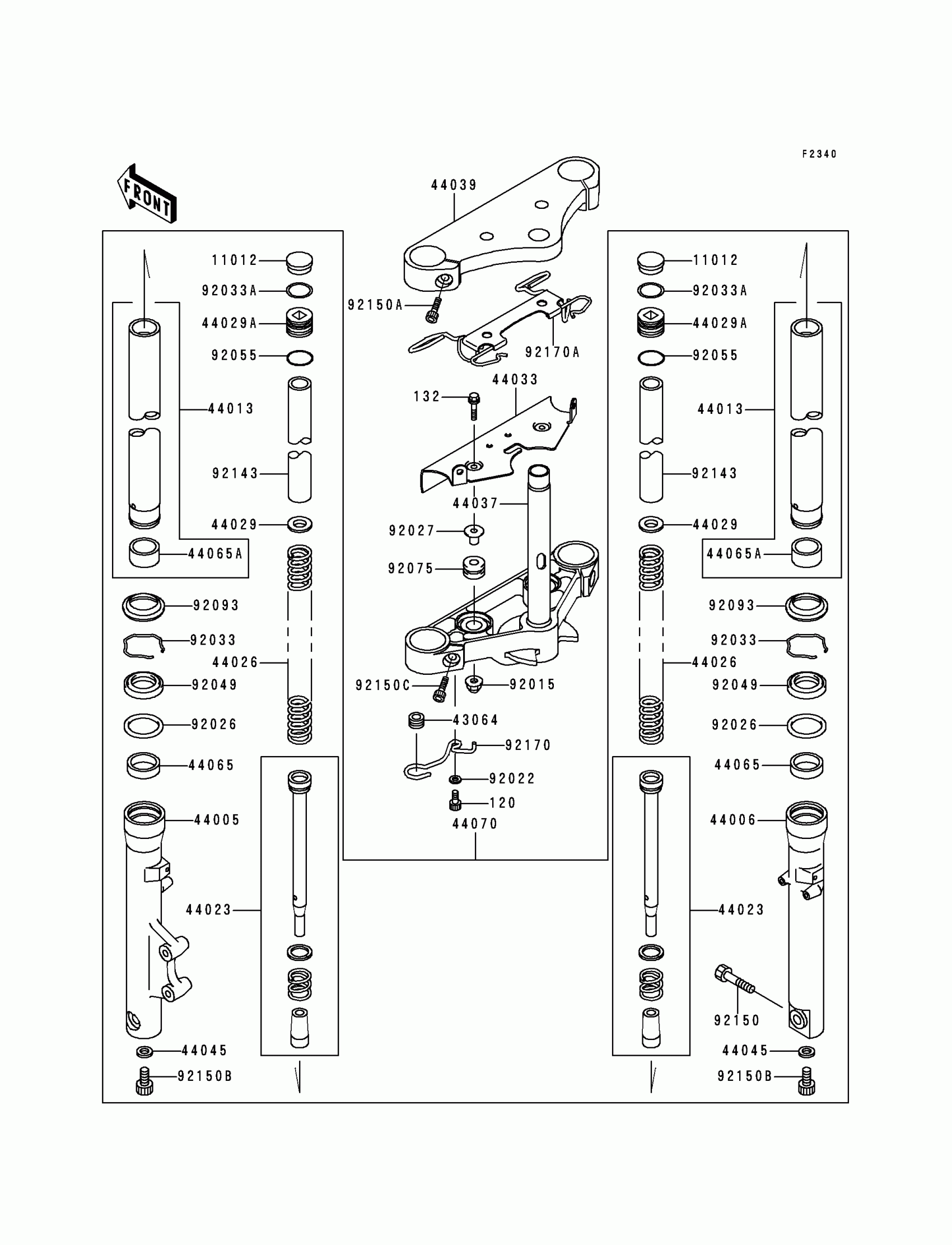

Kawasaki Vulcan 800 Front Fork Diagram

#

Description
Price

120

BOLT-SOCKET,6X14

120P0614

Unavailable

132

BOLT-FLANGED-SMALL,6X25

132E0625

Unavailable

11012

CAP,FORK TOP

11012-1618

$20.38

43064

GROMMET,HOSE CLAMP

43064-006

$3.29

44005

PIPE-LEFT FORK OUTER

44005-1357

$458.20

44006

PIPE-RIGHT FORK OUTER

44006-1356

$458.20

44013

PIPE-FORK INNER

44013-1412

Unavailable

44023

CYLINDER-COMP-FORK

44023-1097

$131.92

44026

SPRING-FRONT FORK

44026-1589

$88.57

44029

SEAT-FORK SPRING

44029-1131

$10.00

44029A

SEAT-FORK SPRING

44029-1144

Unavailable

44033

COVER-FORK

44033-1211

Unavailable

44037

HOLDER-FORK UNDER

44037-1334

$395.50

44039

HOLDER-FORK UPPER

44039-1260

$332.77

44045

GASKET,FORK CYLINDER BOLT

44045-051

$4.64

44065

BUSHING-FRONT FORK

44065-1079

$20.25

44065A

BUSHING-FRONT FORK,INNER PIPE

44065-1087

$26.61

44070

DAMPER-ASSY,FORK

44070-1429

$1,232.94

92015

NUT,CAP,6MM

92015-1385

$3.29

92022

WASHER,6.5X13X2.0

92022-1523

$0.88

92026

SPACER,FORK OUTER

92026-1276

$7.25

92027

COLLAR,L=16.1

92027-1847

$4.67

92033

RING-SNAP

92033-1222

$4.88

92033A

RING-SNAP,SPRING SEAT

92033-1223

$5.10

92049

SEAL-OIL,FORK

92049-1363

$21.55

92055

RING-O

92055-1481

$4.92

92075

DAMPER

92075-1035

$5.07

92093

SEAL,FORK

92093-1268

$20.76

92143

COLLAR,FORK,L=100

92143-1792

$7.81

92150

BOLT,SOCKET,10X40

92150-1029

Unavailable

92150A

BOLT,SOCKET,8X30

92150-1031

$9.71

92150B

BOLT,SOCKET,8X18

92150-1432

$7.54

92150C

BOLT

92150-1960

$9.56

92170

CLAMP,HOSE

92170-1545

$16.46

92170A

CLAMP

92170-1546

$79.52
