1999 Kawasaki Vulcan 800 Suspension/shock Absorber Diagram

← All diagrams

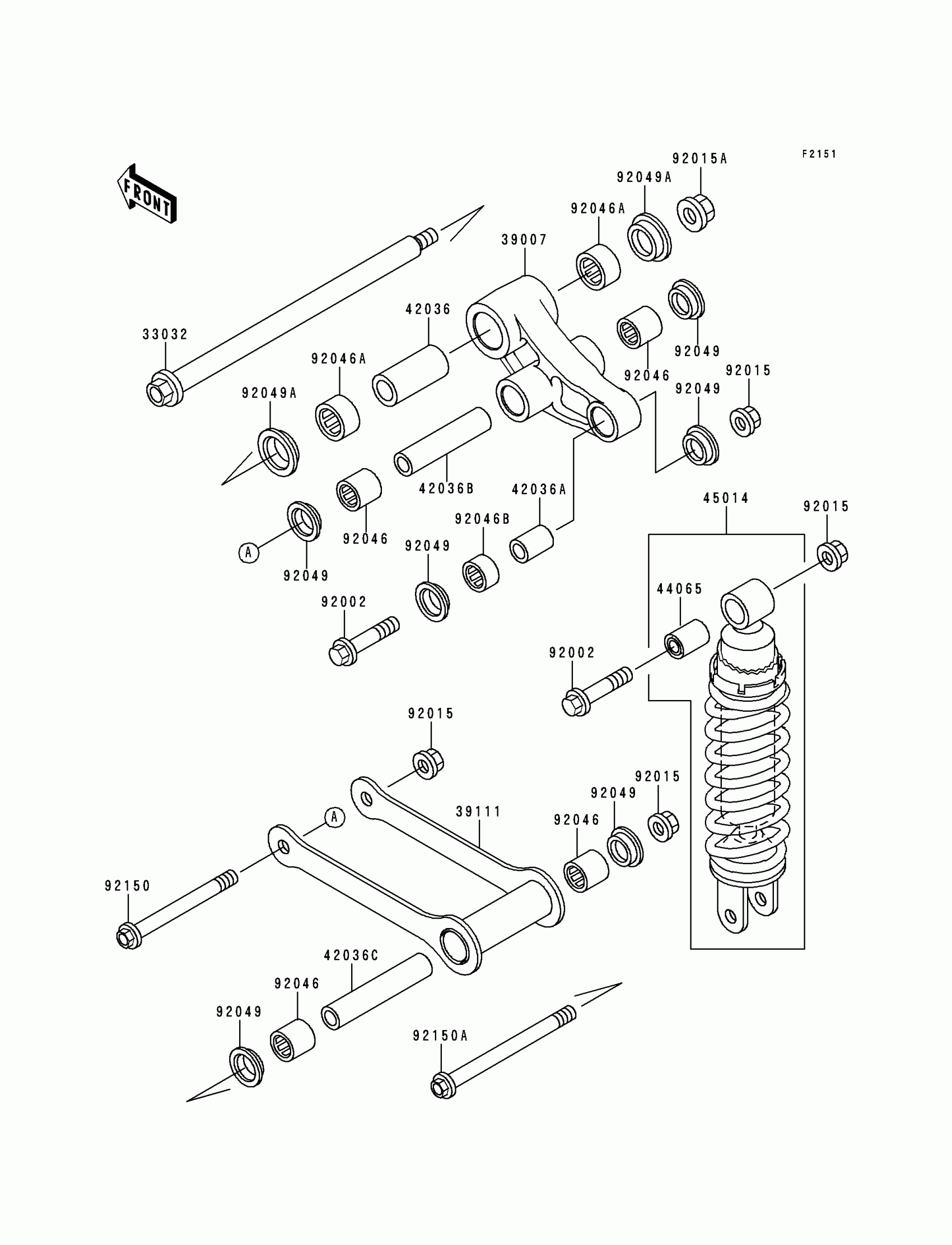

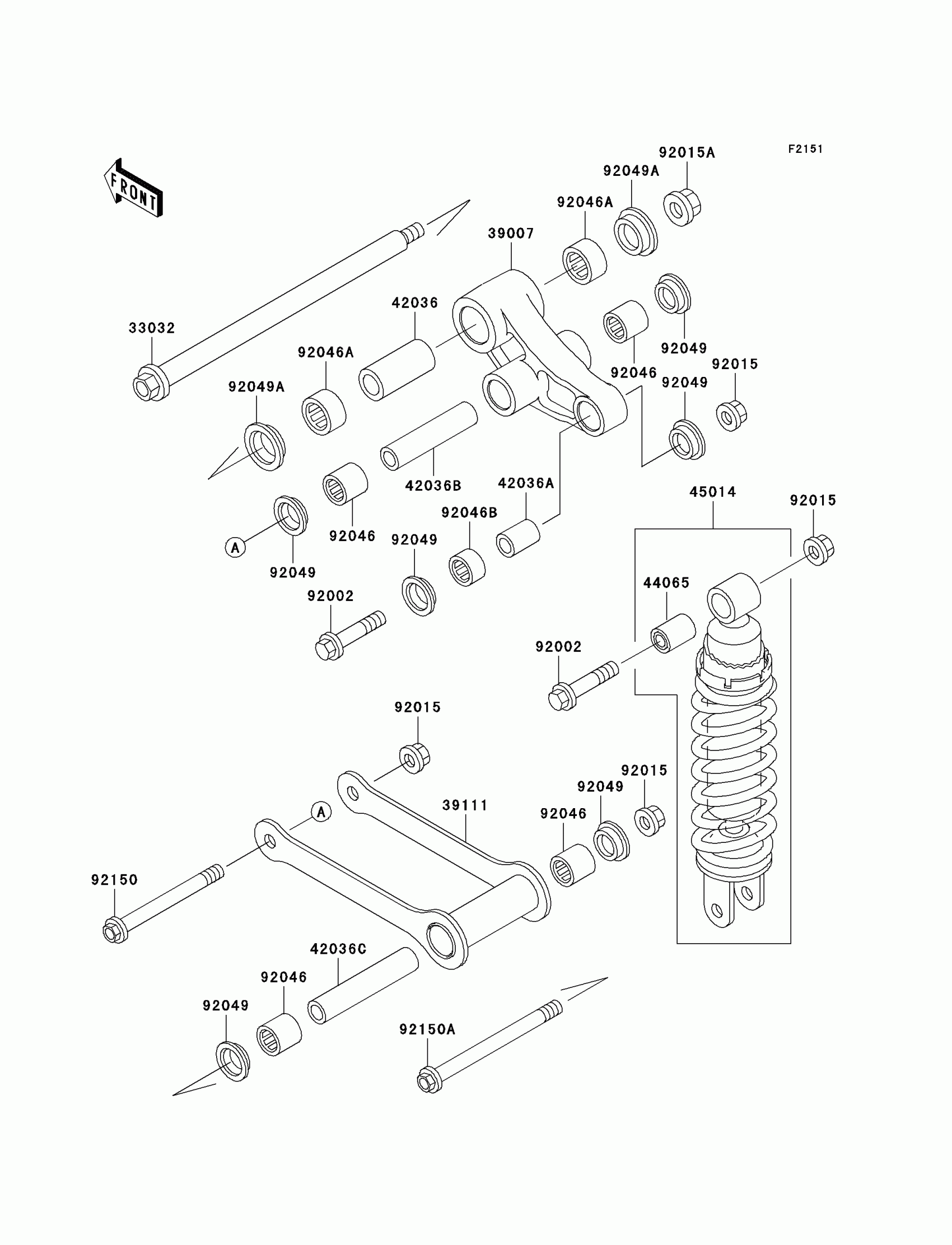

Find the part on the Suspension/shock Absorber diagram for your 1999 Kawasaki Vulcan 800, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1999 Kawasaki Vulcan 800 Suspension/shock Absorber Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

33032

SHAFT-SWING ARM

33032-1176

1
Out of stock

39007

ARM-SUSP,UNI TRAK

39007-1233

1
Out of stock

39111

ROD-TIE,SUSPENSION

39111-1141

1
Out of stock

42036

SLEEVE,20X28X60

42036-1207

1
Out of stock

42036A

SLEEVE,12.1X20X30

42036-1234

1
Out of stock

42036B

SLEEVE,12.1X20X92

42036-1322

1
Out of stock

42036C

SLEEVE,12.1X20X108

42036-1323

1
Out of stock

44065

BUSHING,SHOCKABSORBER

44065-1017

1
Out of stock

45014

SHOCKABSORBER

45014-1598

1
Out of stock

92002

BOLT,12X55

92002-1130

1
Out of stock

92015

NUT,LOCK,FLANGED,12MM

92015-1433

1
Out of stock

92015A

NUT,FLANGED,16MM

92015-1946

1
Out of stock

92046

BEARING-NEEDLE,BM202726

92046-1110

1
Out of stock

92046A

BEARING-NEEDLE,BM2817

92046-1111

1
Out of stock

92046B

BEARING-NEEDLE,BM202715

92046-1112

1
Out of stock

92049

SEAL-OIL,ARM

92049-1109

1
Out of stock

92049A

SEAL-OIL,28X34X5.7

92049-1181

1
Out of stock

92150

BOLT,FLANGED,12X117

92150-1895

1
Out of stock

92150A

BOLT,FLANGED,12X145

92150-1896

1
Out of stock
