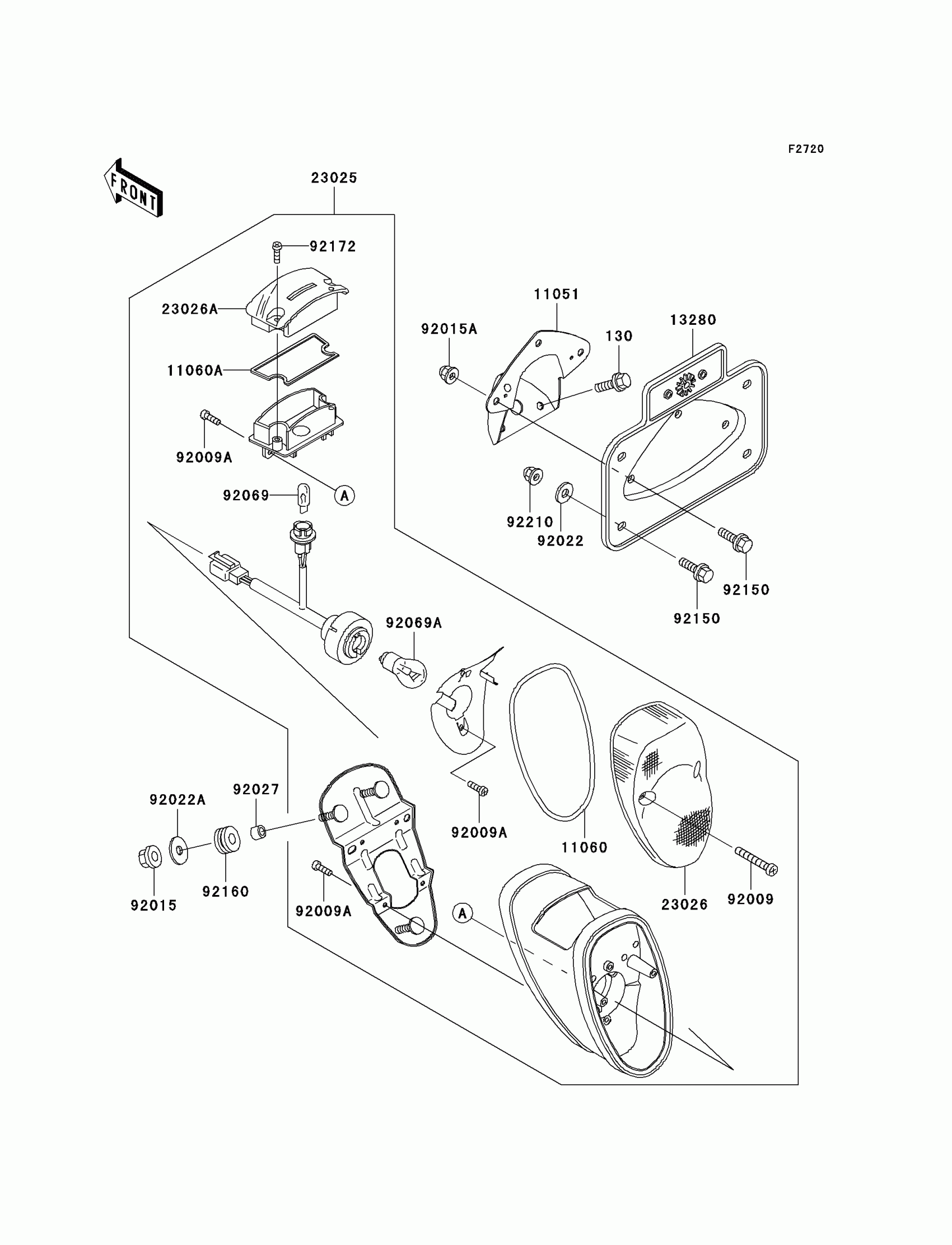

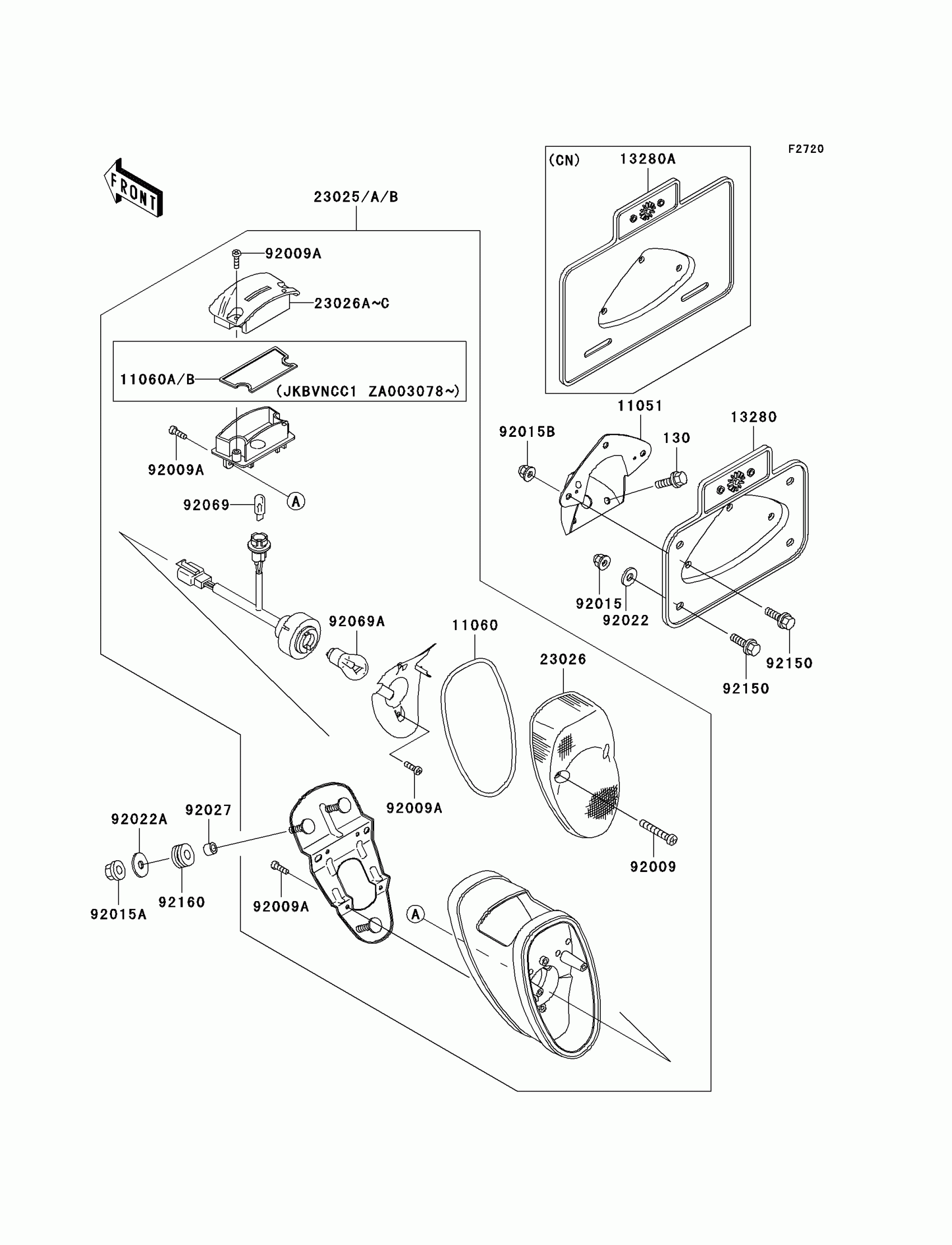

Kawasaki Vulcan 800 Drifter Taillight(s) Diagram

Description

Price

130

BOLT-FLANGED,6X12

130J0612

Unavailable

11051

BRACKET,LICENSE HOLDER

11051-1086

Unavailable

11060

GASKET,TAIL LAMP

11060-1884

$10.47

11060A

GASKET,LICENSE LENS

11060-1939

$2.80

23025A

LAMP-TAIL

23025-1293

$383.37

23026

LENS,TAIL

23026-1220

$57.85

23026B

LENS,LICENSE

23026-1224

$12.43

92009

SCREW,TAPPING,4X20

92009-1378

$3.68

92009A

SCREW,TAPPING,4X12

92009-1381

$2.42

92015A

NUT,FLANGED,6MM

92015-1367

$2.53

92015B

NUT,CAP,6MM

92015-1385

$3.29

92022A

WASHER,6.5X20X1.6

92022-1557

$1.08

92027

COLLAR,6.8X10X12

92027-162

$4.93

92069

BULB,12V 5W

92069-1016

$4.88

92069A

BULB,12V 21/5W

92069-1084

$5.61

92160

DAMPER

92160-1162

$3.81

13280

HOLDER,LICENSE PLATE

13280-1103

$20.25

13280A

HOLDER,LICENSE PLATE

13280-1130

Unavailable

92015

NUT,CAP,6MM,BLACK

92015-1170

$0.60

92015

NUT,CAP,6MM,BLACK

92015-1170

$0.60

92022

WASHER,6.5X20X1.6,BLACK

92022-1346

$0.48

92022

WASHER,6.5X20X1.6,BLACK

92022-1346

$0.48

92150

BOLT,6X14

92150-1133

$3.43

92150

BOLT,6X14

92150-1133

$3.43
