2000 Kawasaki Vulcan 800 Drifter Ignition System Diagram

← All diagrams

Find the part on the Ignition System diagram for your 2000 Kawasaki Vulcan 800 Drifter, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

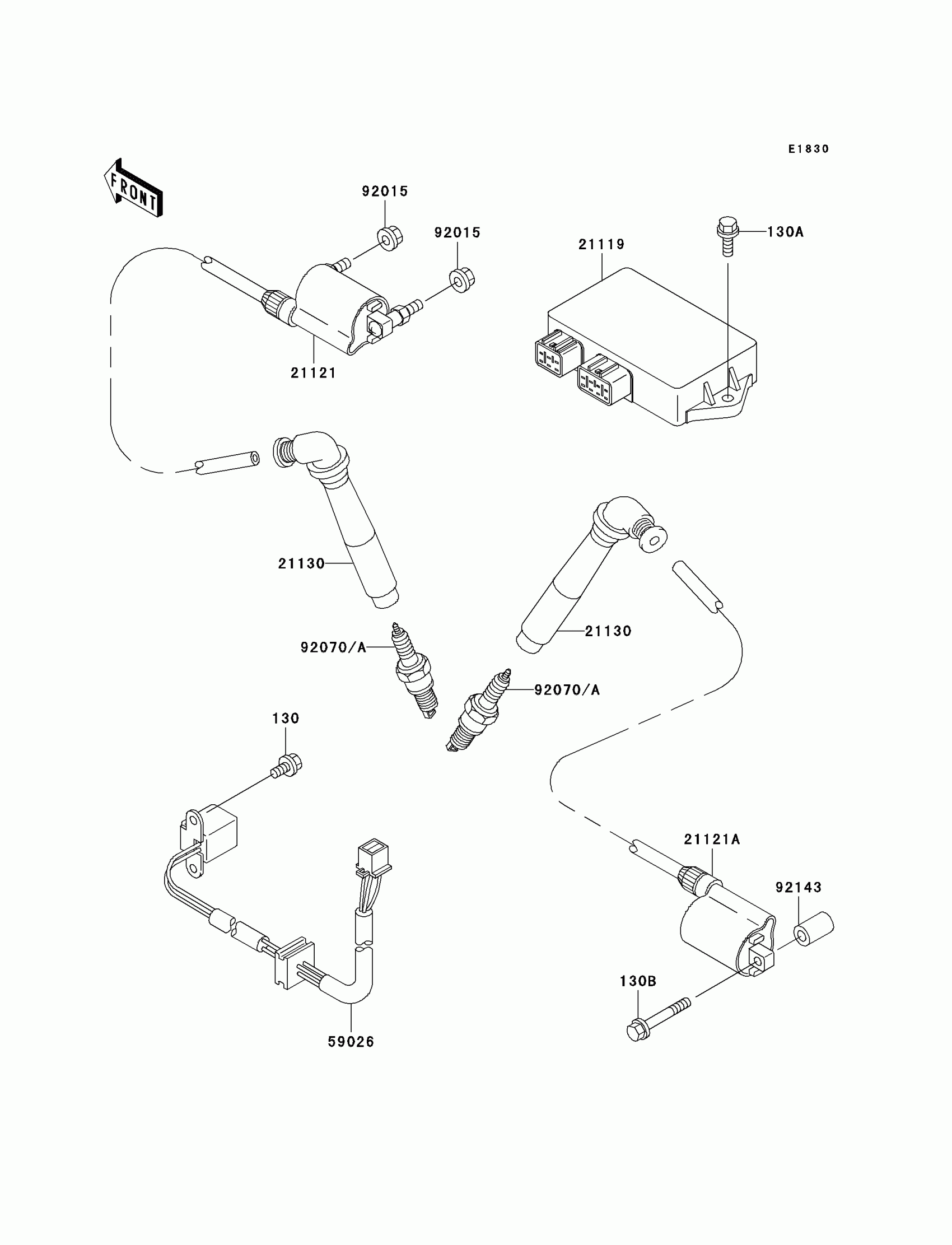

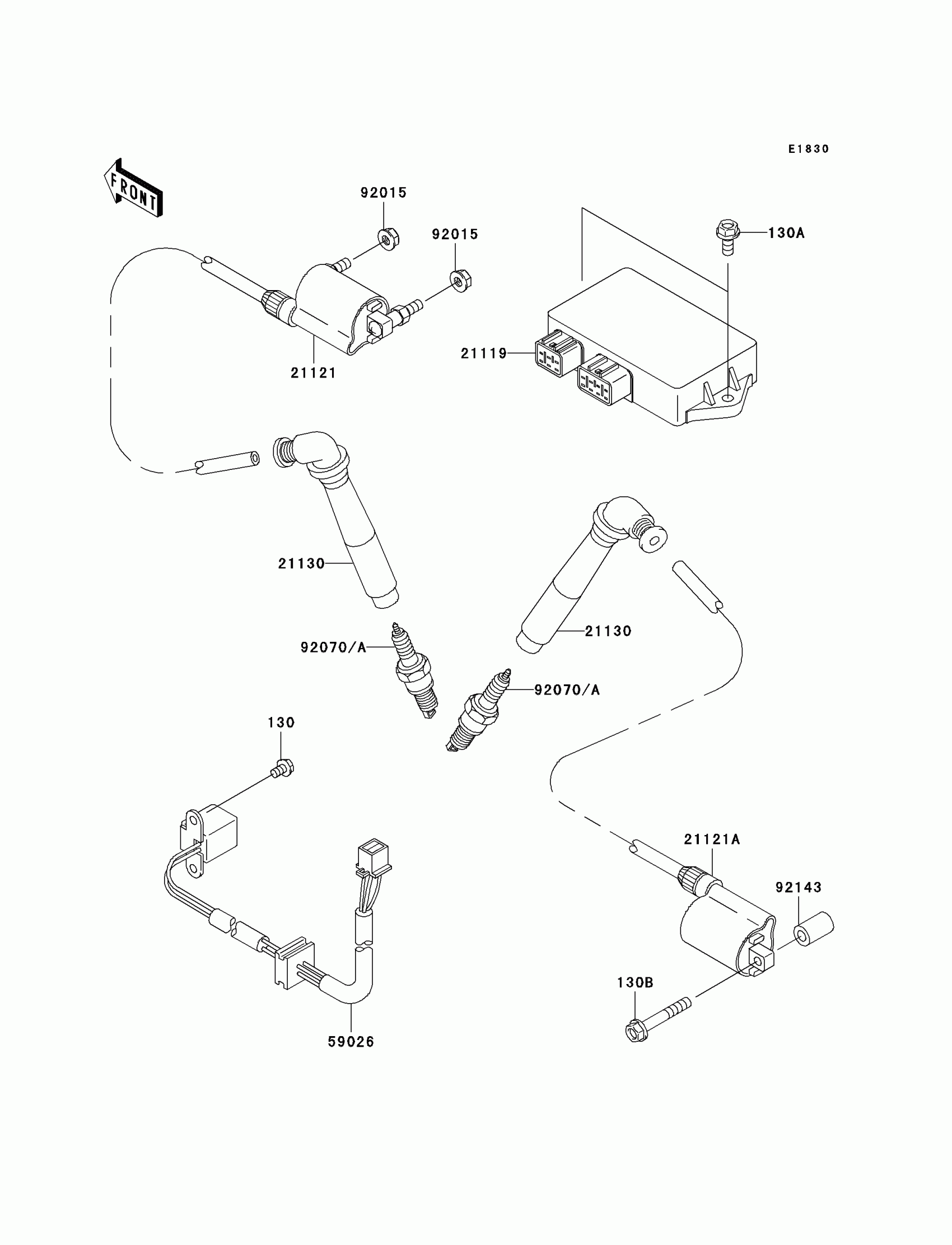

2000 Kawasaki Vulcan 800 Drifter Ignition System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,5X10

130G0510

1
Out of stock

130A

BOLT,FLANGED,6X14

130G0614

1
Out of stock

130B

BOLT-FLANGED,6X40

130V0640

1
Out of stock

21119

IGNITER

21119-1535

1

$674.97

In stock

21121

COIL-IGNITION,FR

21121-1245

1

$152.92

In stock

21121A

COIL-IGNITION,RR

21121-1246

1

$152.92

In stock

21130

CAP-SPARK PLUG

21130-1075

1

$51.24

In stock

59026

COIL-PULSING

59026-1130

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1367

1

$2.93

In stock

92070

—

$6.44

In stock

92070A

1

$6.44

In stock

92143

COLLAR,6.8X13X20

92143-1773

1

$4.32

In stock
