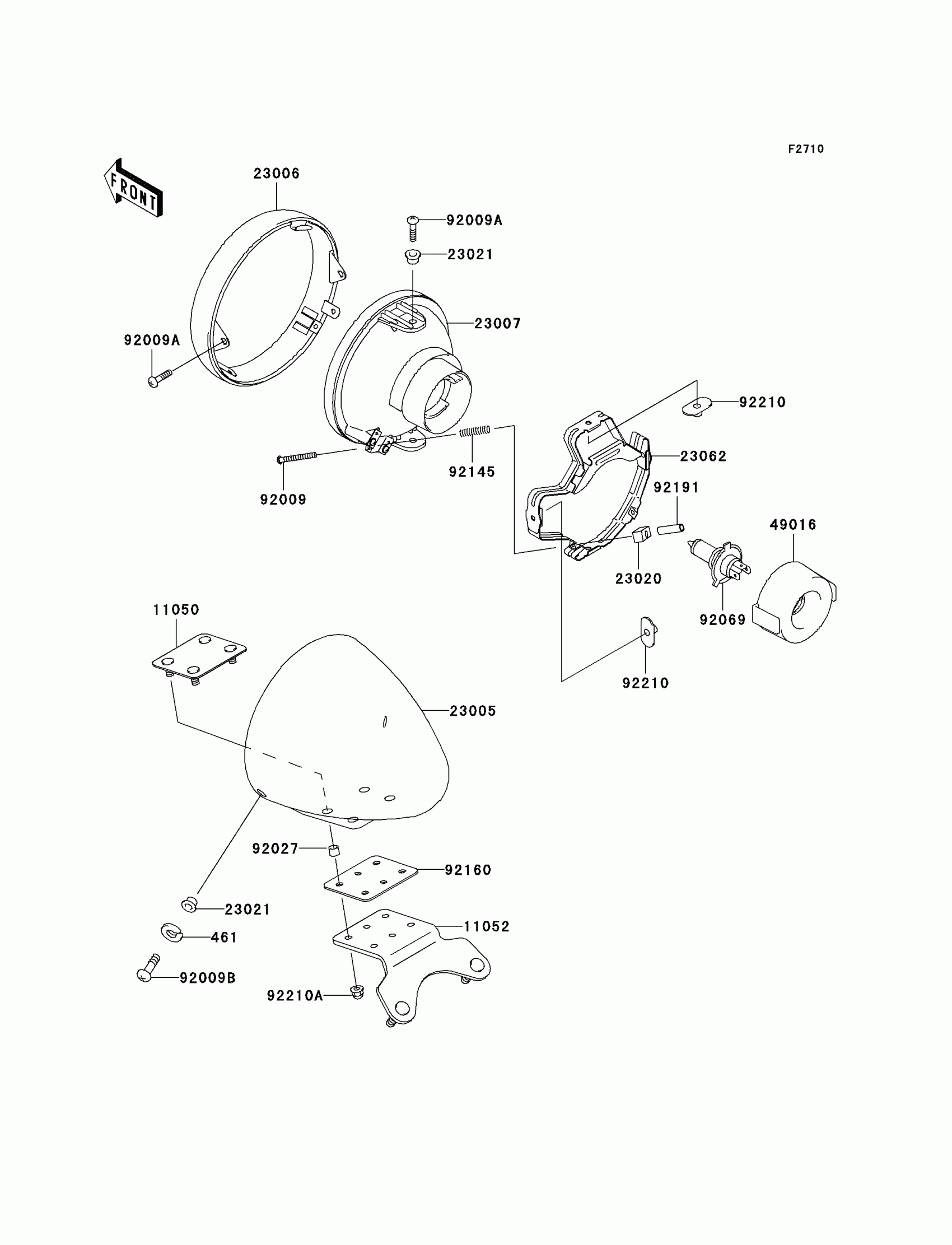

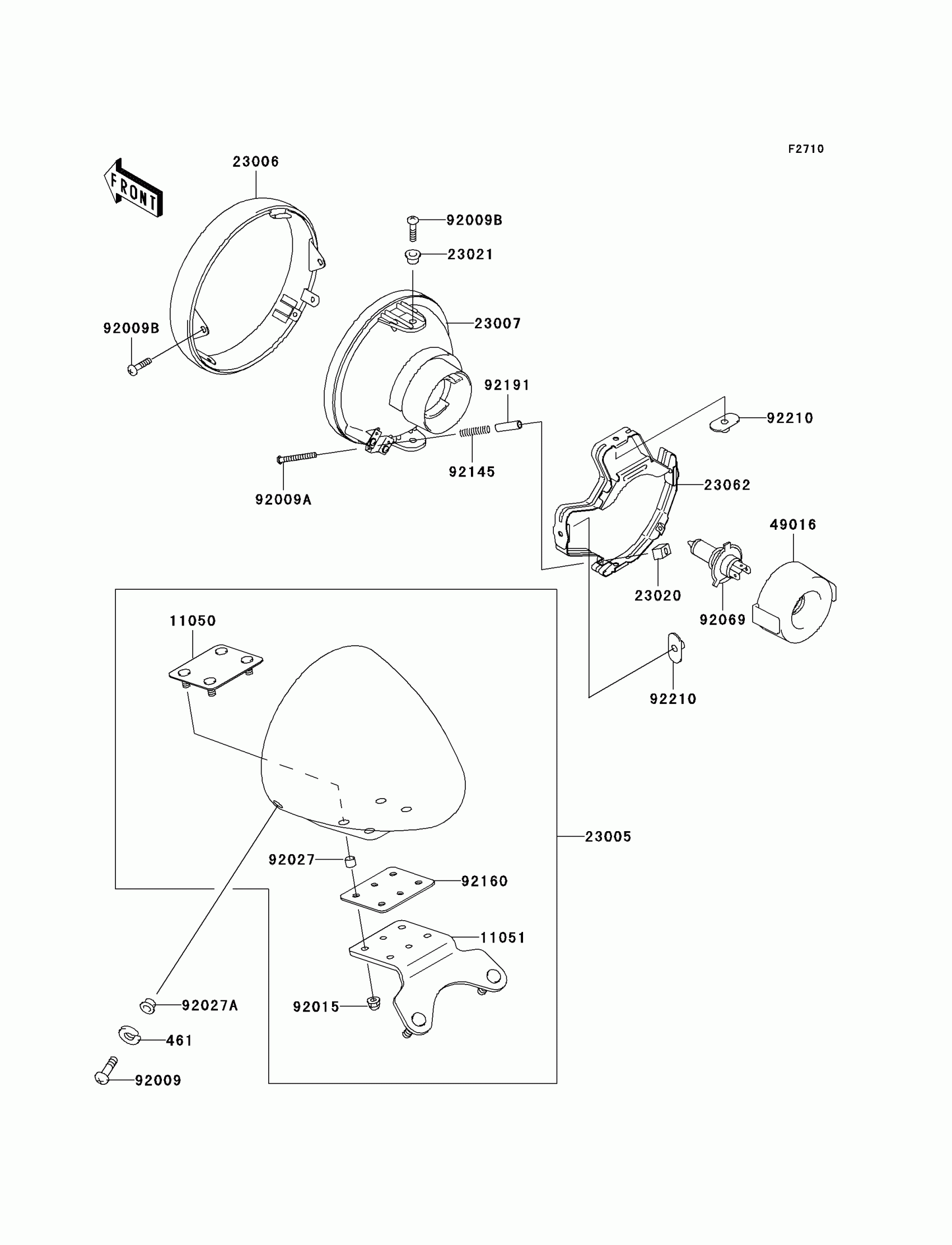

Kawasaki Vulcan 800 Drifter Headlight(s) Diagram

Description

Price

461

WASHER-SPRING,5MM,BLACK

461K0500

Unavailable

11050

BRACKET,HEAD LAMP BODY

11050-1978

$64.75

11051

BRACKET,HEAD LAMP BODY

11051-1085

Unavailable

23005

BODY-COMP-HEAD LAMP,BLACK

23005-1172-10

$488.36

23006

RIM-LAMP

23006-1079

$98.71

23007

LENS-COMP,HEAD LAMP

23007-1359

$180.47

23020

NUT,4MM,FOCUS ADJUST

23020-018

$3.54

23021

WASHER

23021-010

$3.29

23062

BRACKET-COMP,HEAD LAMP

23062-1131

$63.86

49016

COVER-SEAL,SOCKET

49016-1203

$11.61

92009

SCREW,5X16

92009-1693

$3.92

92009A

SCREW,FOCUS ADJUST,4X60

92009-1816

$5.17

92009B

SCREW,5X16

92009-1879

$0.86

92015

NUT,CAP,6MM,BLACK

92015-1170

$0.60

92027

COLLAR

92027-103

$2.39

92027A

COLLAR,HEAD LAMP,BLACK

92027-1503

$3.92

92069

BULB,12V 60/55W,H4

92069-1002

Unavailable

92145

SPRING,HEAD LAMP LENS

92145-1268

$4.39

92160

DAMPER

92160-1960

$10.22

92191

TUBE,3.5X5.5X19

92191-1217

$2.02

92210

NUT,SPECIAL,5MM

92210-1060

$2.03
