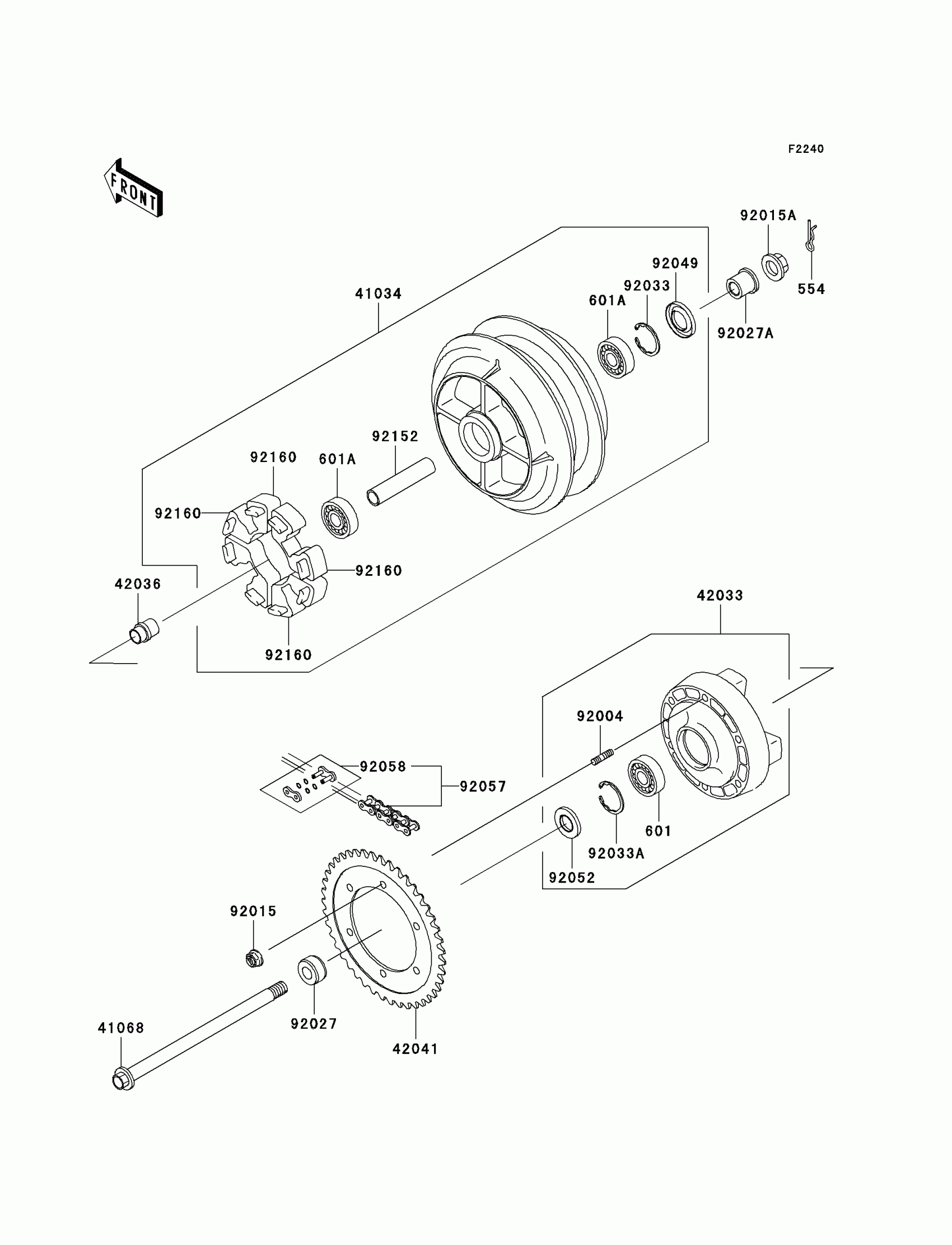

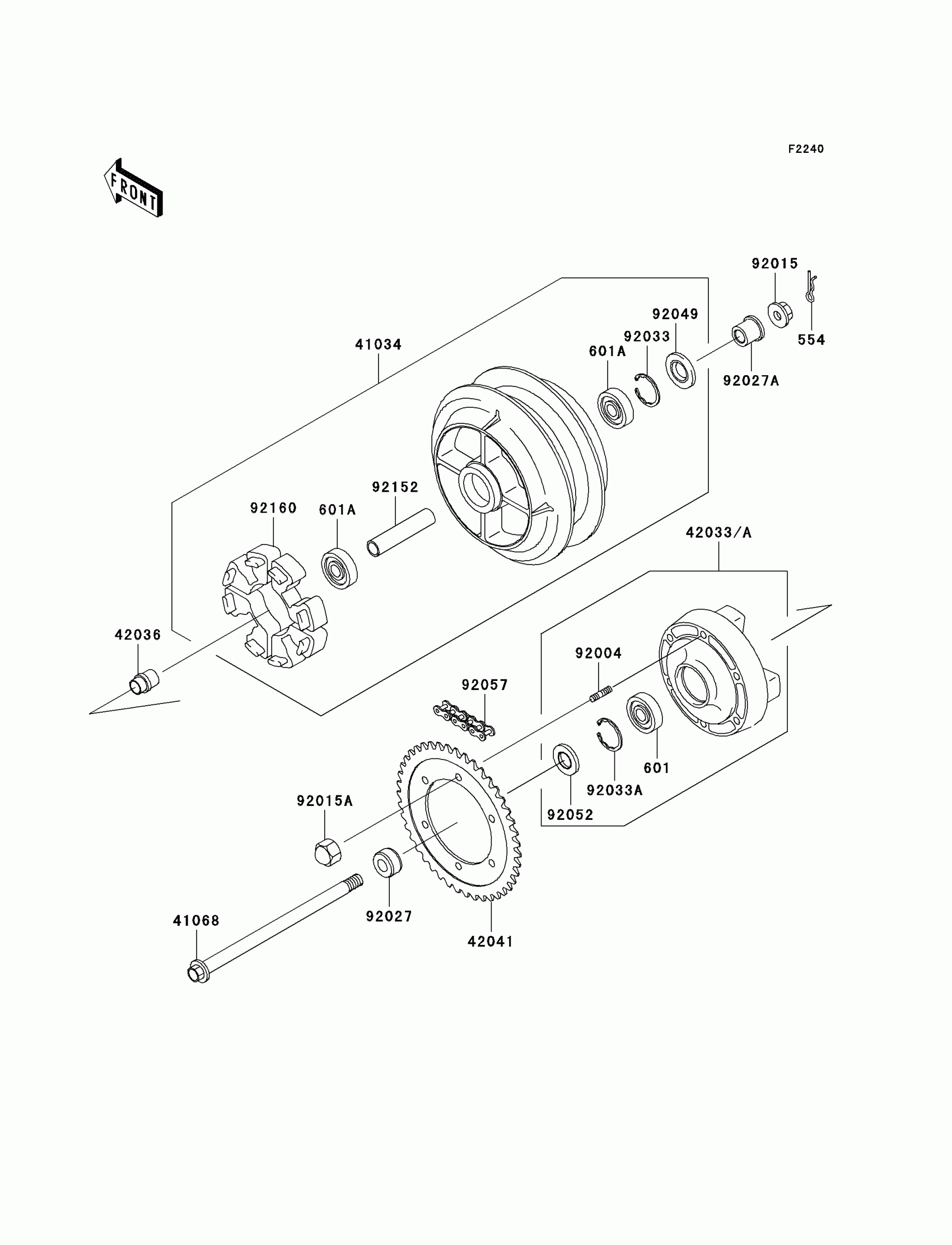

2000 Kawasaki Vulcan 800 Drifter Rear Wheel/chain Diagram

← All diagrams

Find the part on the Rear Wheel/chain diagram for your 2000 Kawasaki Vulcan 800 Drifter, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2000 Kawasaki Vulcan 800 Drifter Rear Wheel/chain Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

554

PIN-SNAP,10MM

554A1000

1
Out of stock

601

BEARING-BALL,#6205UG

601B6205UG

1
Out of stock

601A

BEARING-BALL,6303LLUC3/2ASU68

601B6303UU

1
Out of stock

41034

DRUM-ASSY,REAR BRAKE

41034-1299

1
Out of stock

41068

AXLE,RR

41068-1365

1
Out of stock

42033A

COUPLING-ASSY,RR HUB

42033-1204

1
Out of stock

42036

SLEEVE,RR HUB,L=33

42036-1146

1
Out of stock

42041

SPROCKET-HUB,40T

42041-1519

1
Out of stock

92004

STUD,10X19

92004-1151

1
Out of stock

92015

NUT,FLANGED,16MM

92015-1946

1
Out of stock

92015A

NUT,CAP,10MM

92015-1961

1
Out of stock

92027

COLLAR,REAR AXLE,LH,L=18.5

92027-1321

1
Out of stock

92027A

COLLAR,RR AXLE,L=28

92027-1875

1
Out of stock

92033

RING-SNAP,47MM

92033-1042

1
Out of stock

92033A

RING-SNAP,52MM

92033-1043

1
Out of stock

92049

SEAL-OIL,BJN28475

92049-1056

1
Out of stock

92052

SEAL-OIL,TWC35527

92052-006

1
Out of stock

92057

CHAIN,DRIVE,EK50MV-OX112L

92057-1284

1
Out of stock

92152

COLLAR,RR HUB,L=101

92152-1117

1
Out of stock

92160

DAMPER,SHOCK,RR HUB

92160-1697

1
Out of stock
