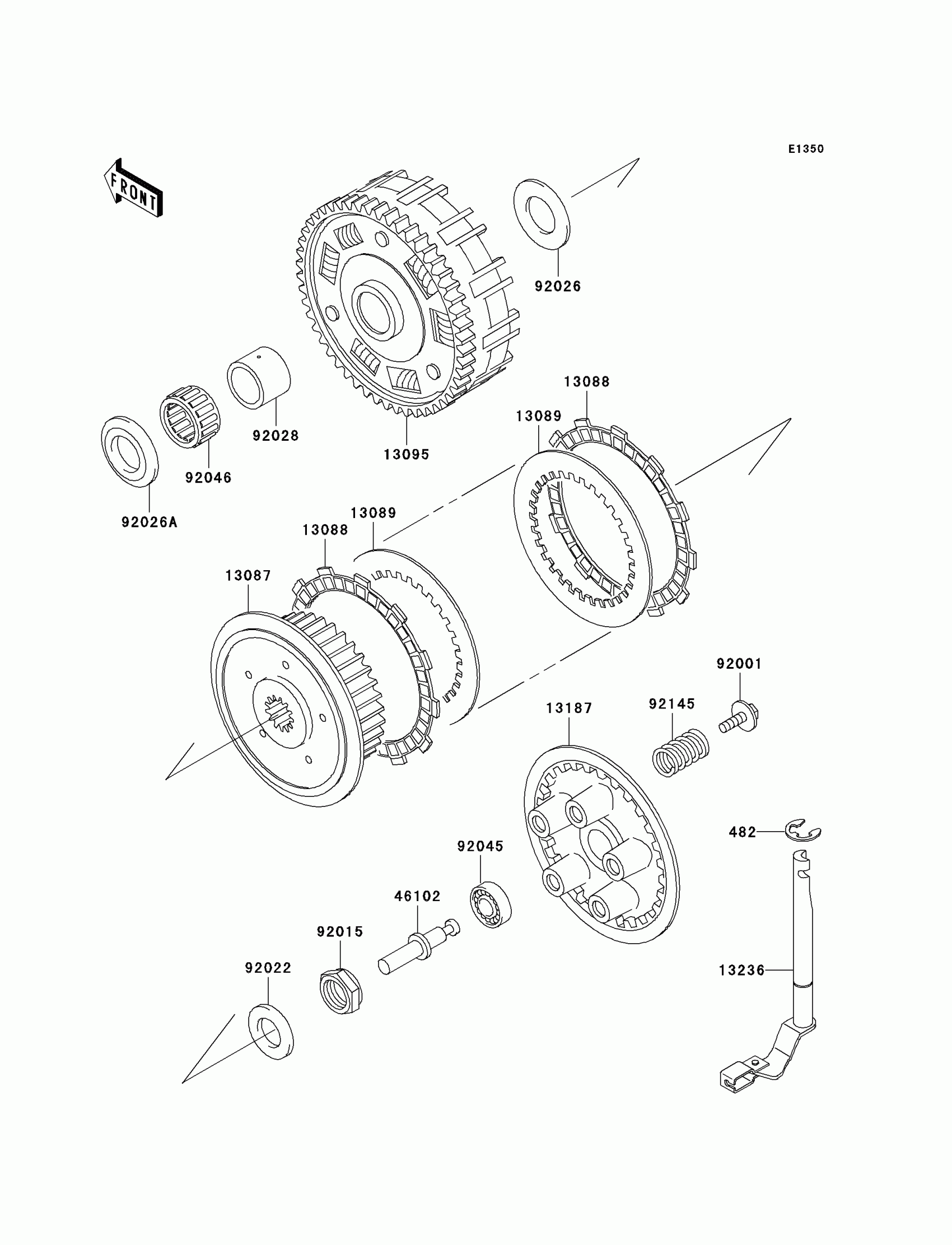

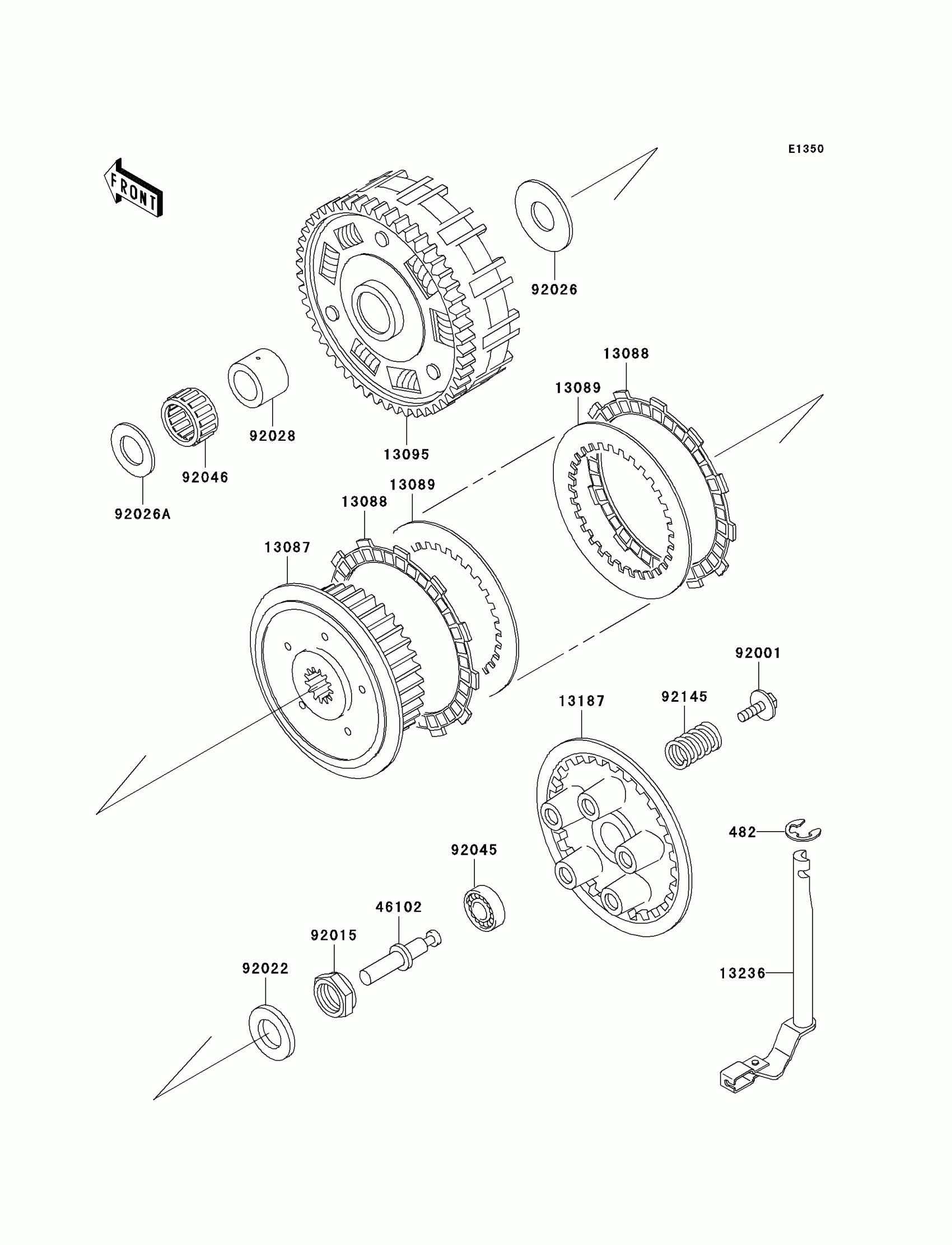

Kawasaki Vulcan 800 Drifter Clutch Diagram

Description

Price

482

CIRCLIP-TYPE-E,10MM

482J0100

$0.65

13087

HUB-CLUTCH

13087-042

Unavailable

13088

PLATE-FRICTION

13088-1133

$11.66

13089

PLATE-CLUTCH

13089-027

$9.73

13095

HOUSING-COMP-CLUTCH

13095-1375

$595.23

13187

PLATE-CLUTCH OPERATING

13187-1006

$76.98

13236

LEVER-COMP,CLUTCH RELEASE

13236-1269

$33.13

46102

ROD,PULL

46102-1374

$14.81

92001

BOLT,FLANGED,6X18

92001-1066

$4.67

92015

NUT,20MM

92015-1555

$9.95

92022

WASHER,20.3X36X3.7

92022-1868

$7.25

92026

SPACER,25.5X47X2.5

92026-022

$9.58

92026A

SPACER,THRUST,T=5.5

92026-116

$16.49

92028

BUSHING,25X32X23.6

92028-178

$23.53

92045

BEARING-BALL,6001C3ML01

92045-1235

$12.33

92046

BEARING-NEEDLE,KTV323723

92046-028

$19.92

92145

SPRING,CLUTCH

92145-1264

$7.46
