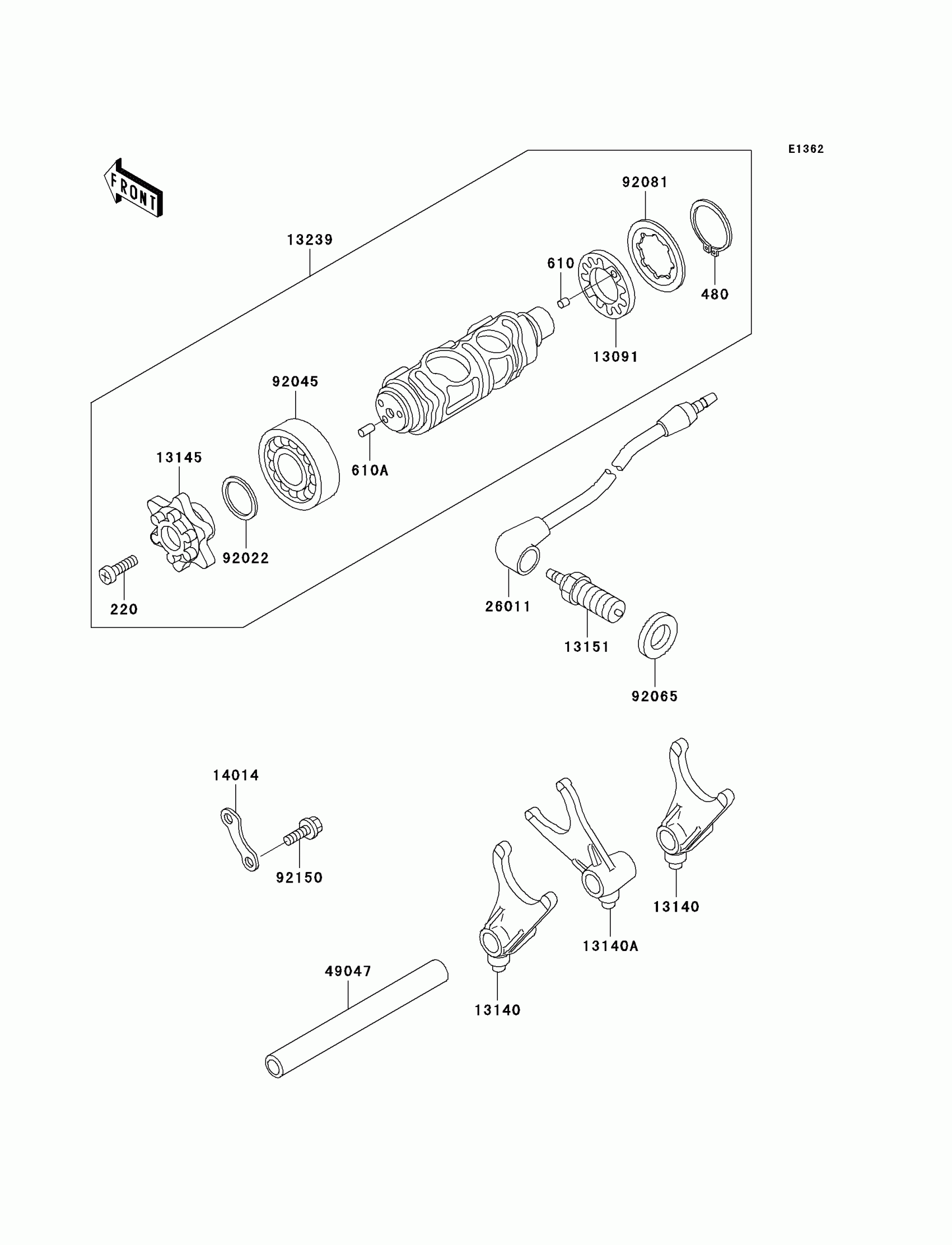

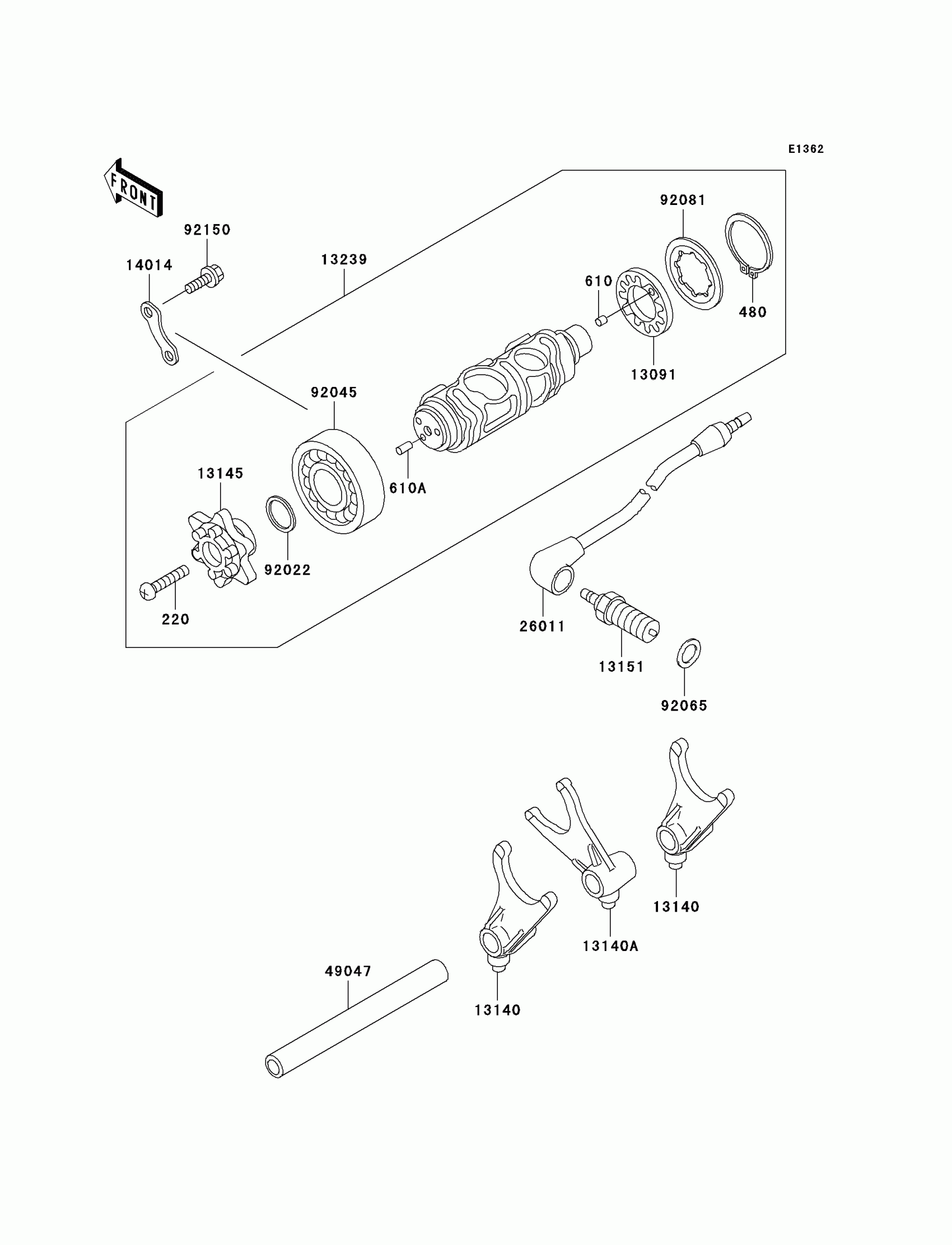

Kawasaki Vulcan 800 Drifter Gear Change Drum/Shift Fork(s) Diagram

Description

Price

220

SCREW PAN HEAD 6X30

220B0630

Unavailable

480

CIRCLIP-TYPE-C,22MM

480J2200

$3.81

610

ROLLER,4X4

610A0404

$4.17

610A

ROLLER,4X10

610A0410

$3.29

13091

HOLDER,CHANGE DRUM

13091-1389

$21.76

13140

FORK-SHIFT

13140-1126

$101.56

13140A

FORK-SHIFT

13140-1138

$99.73

13145

CAM-CHANGE DRUM

13145-1051

Unavailable

13151

SWITCH-COMP

13151-1085

$18.09

13239

DRUM-ASSY-CHANGE

13239-1126

$224.64

14014

PLATE-POSITION

14014-1014

$4.17

26011

WIRE-LEAD

26011-1627

$9.69

49047

ROD-SHIFT

49047-1059

$38.58

92022

WASHER,25.3X30X1

92022-161

$8.10

92045

BEARING-BALL,16005Z

92045-1030

Unavailable

92065

GASKET,10.5X16X1

92065-058

$3.03

92081

SPRING

92081-1895

$7.01

92150

BOLT,6X12

92150-1868

$2.66
