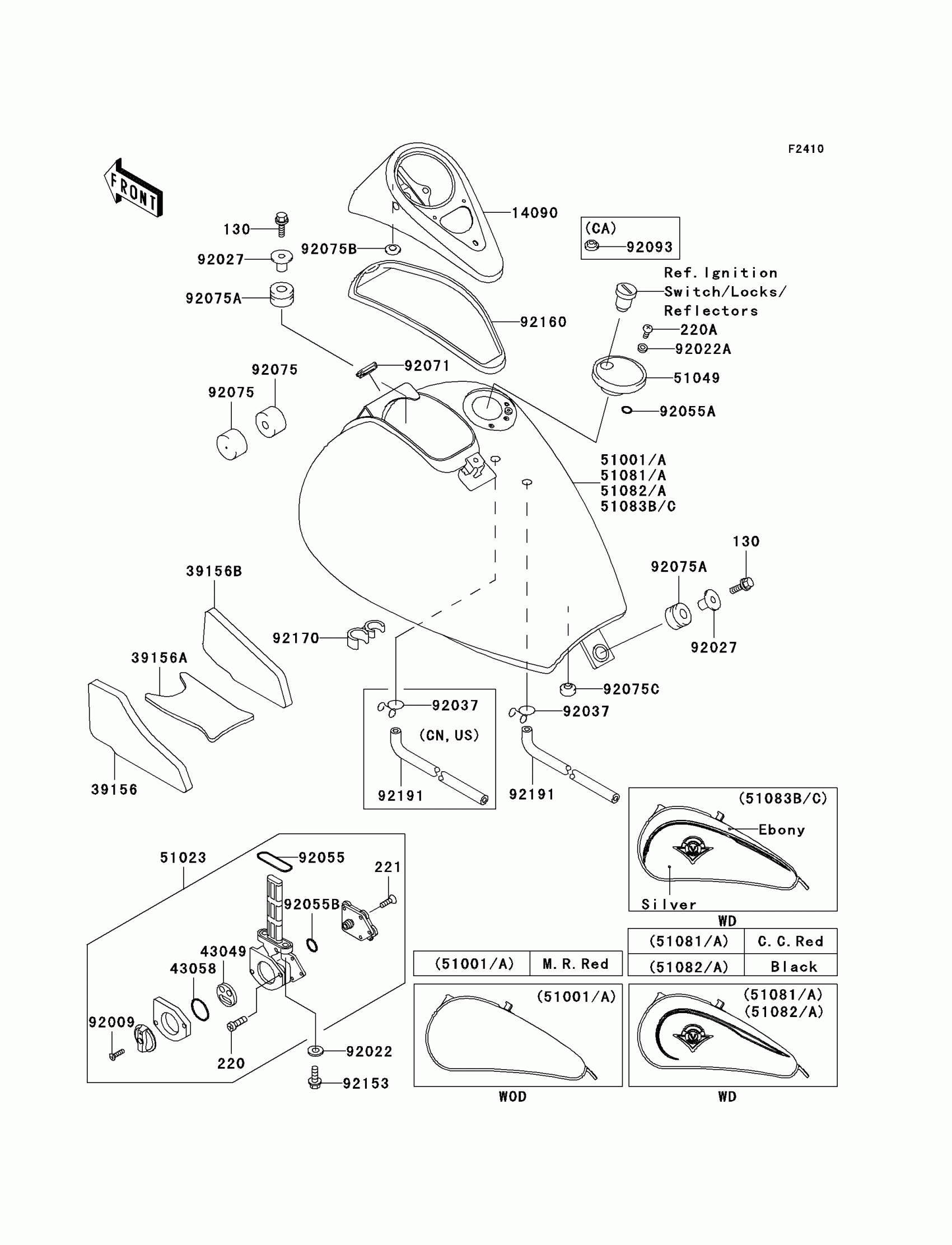

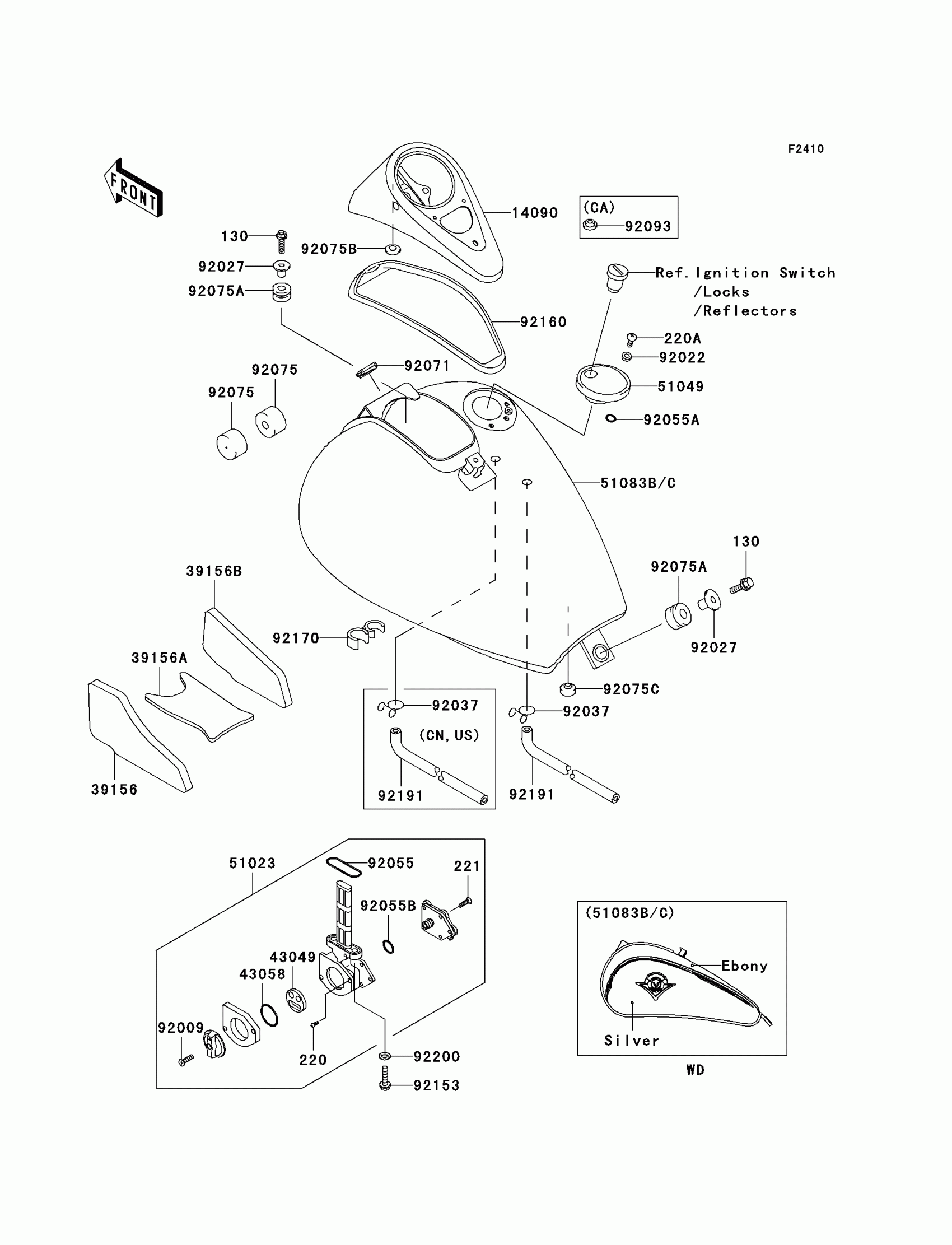

Kawasaki Vulcan 800 Drifter Fuel Tank Diagram

#

Description
Price

14090

COVER,METER

14090-1560

$124.13

39156

PAD,FUEL TANK,LH

39156-1512

Unavailable

39156A

PAD,FUEL TANK,CNT

39156-1513

Unavailable

39156B

PAD,FUEL TANK,RH

39156-1629

Unavailable

43049

PACKING,TAP VALVE

43049-1075

Unavailable

43058

RING,TAP LEVER

43058-1083

$6.62

51023

TAP-ASSY,FUEL

51023-1260

$119.44

51049

CAP-TANK,FUEL

51049-0003

$97.97

92009

SCREW,4X12

92009-1742

$1.87

92022

WASHER-PLAIN

92022-183

$2.99

92022A

WASHER,5.1X10X1.0

92022-1977

$2.76

92027

COLLAR,L=19.3

92027-1780

$4.93

92055

RING-O,FUEL TAP PACKING

92055-1112

$3.81

92055A

RING-O,ID=9

92055-1552

$2.41

92055B

RING-O

92055-1649

$4.84

92071

GROMMET

92071-0013

$4.85

92075

DAMPER,FUEL TANK

92075-125

$4.67

92075A

DAMPER

92075-1736

$4.93

92075B

DAMPER,RUBBER

92075-261

$3.85

130

BOLT-FLANGED,8X30

130H0830

Unavailable

220

SCREW-PAN-CROS,3X8

220B0308

$0.54

220A

SCREW-PAN-CROS,5X10

220D0510

Unavailable

221

SCREW-CSK-CROS,4X14

221B0414

Unavailable

92075C

DAMPER,9X24X14

92075-281

$4.67

92153

BOLT,FLANGED,6X25

92153-0514

$1.54

92160

DAMPER,METER COVER

92160-1593

$43.60

92170

CLAMP,TUBE

92170-1353

$4.08

51083B

TANK-COMP-FUEL,SILVER/EBONY

51083-5228-686

$1,328.48

51083C

TANK-COMP-FUEL,SILVER/EBONY

51083-5284-686

$1,328.48

92037

CLAMP,TUBE

92037-147

$5.61

92037

CLAMP,TUBE

92037-147

$5.61

92093

SEAL,FUEL TANK CAP

92093-1030

$5.93

92191

TUBE

92191-1015

$28.83

92191

TUBE

92191-1015

$28.83
