2005 Kawasaki Vulcan 800 Classic Fuel Tank Diagram

← All diagrams

Find the part on the Fuel Tank diagram for your 2005 Kawasaki Vulcan 800 Classic, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

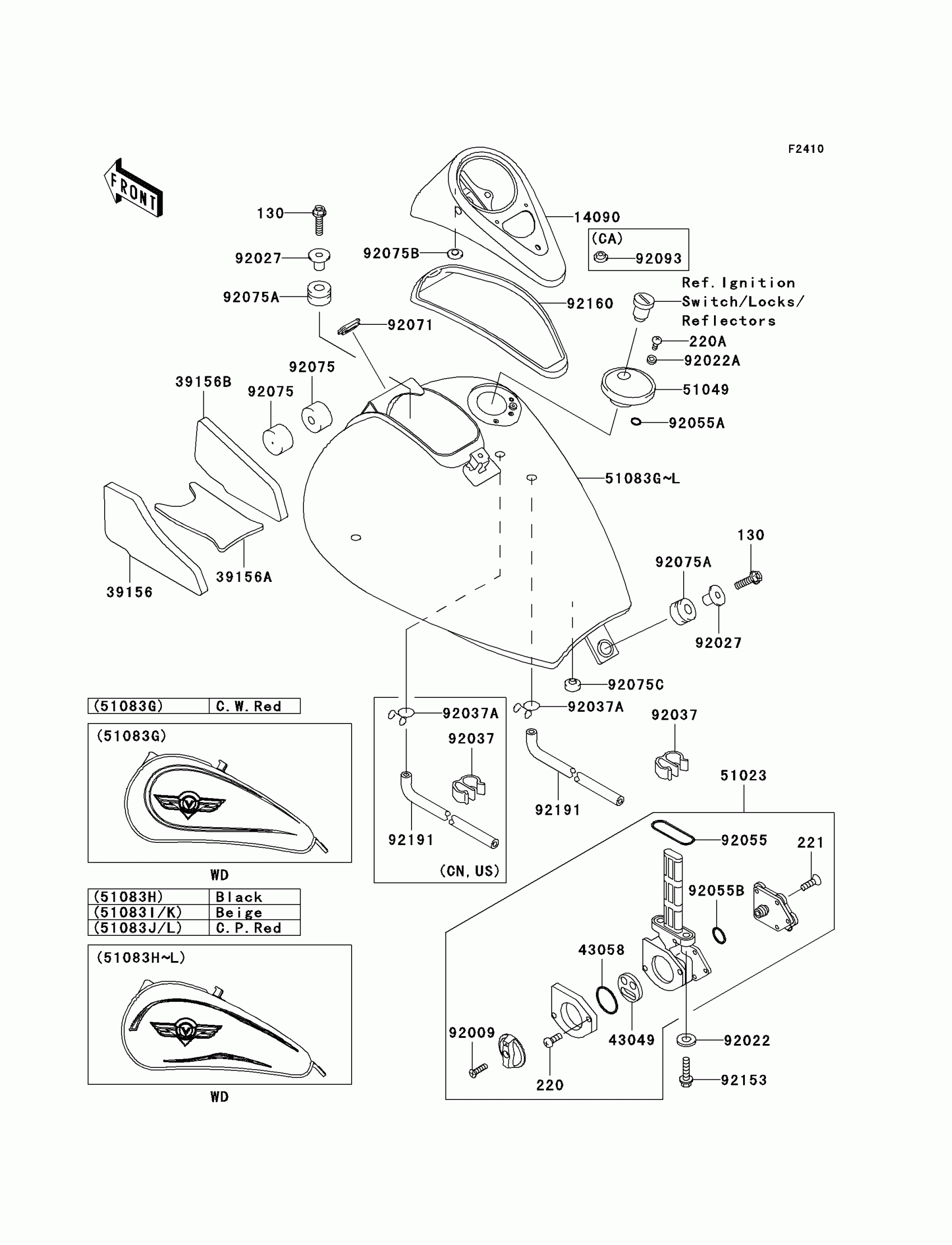

2005 Kawasaki Vulcan 800 Classic Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14090

COVER,METER

14090-1560

1
Out of stock

39156

PAD,FUEL TANK,LH

39156-1512

1
Out of stock

39156A

PAD,FUEL TANK,CNT

39156-1513

1
Out of stock

39156B

PAD,FUEL TANK,RH

39156-1629

1
Out of stock

43049

PACKING,TAP VALVE

43049-1075

1
Out of stock

43058

RING,TAP LEVER

43058-1083

1
Out of stock

51023

TAP-ASSY,FUEL

51023-1260

1
Out of stock

51049

CAP-TANK,FUEL

51049-0003

1
Out of stock

130

BOLT-FLANGED,8X30

130H0830

1
Out of stock

220

SCREW-PAN-CROS,3X8

220B0308

1
Out of stock

220A

SCREW-PAN-CROS,5X10

220D0510

1
Out of stock

221

SCREW-CSK-CROS,4X14

221B0414

1
Out of stock

92009

SCREW,4X12

92009-1742

1
Out of stock

92022

WASHER-PLAIN

92022-183

1
Out of stock

92022A

WASHER,5.1X10X1.0

92022-1977

1
Out of stock

92027

COLLAR,L=19.3

92027-1780

1
Out of stock

92055

RING-O,FUEL TAP PACKING

92055-1112

1
Out of stock

92055A

RING-O,ID=9

92055-1552

1
Out of stock

92055B

RING-O

92055-1649

1
Out of stock

92071

GROMMET

92071-0013

1
Out of stock

92075

DAMPER,FUEL TANK

92075-125

1
Out of stock

92075A

DAMPER

92075-1736

1
Out of stock

92075B

DAMPER,RUBBER

92075-261

1
Out of stock

92075C

DAMPER,9X24X14

92075-281

1
Out of stock

92153

BOLT,FLANGED,6X25

92153-0514

1
Out of stock

92160

DAMPER,METER COVER

92160-1593

1
Out of stock

51083G

TANK-COMP-FUEL,C.W.RED

51083-5366-H3

1
Out of stock

51083H

TANK-COMP-FUEL,M.S.BLACK

51083-5367-660

1
Out of stock

51083I

TANK-COMP-FUEL,P.L.BEIGE

51083-5383-IR

1
Out of stock

51083J

TANK-COMP-FUEL,C.P.RED

51083-5384-V9

1
Out of stock

51083K

TANK-COMP-FUEL,P.L.BEIGE

51083-5385-IR

1
Out of stock

51083L

TANK-COMP-FUEL,C.P.RED

51083-5386-V9

1
Out of stock

92037

CLAMP

92037-1458

1
Out of stock

92037

CLAMP

92037-1458

1
Out of stock

92037A

CLAMP,TUBE

92037-147

1
Out of stock

92037A

CLAMP,TUBE

92037-147

1
Out of stock

92093

SEAL,FUEL TANK CAP

92093-1030

1
Out of stock

92191

TUBE

92191-1015

1
Out of stock

92191

TUBE

92191-1015

1
Out of stock
