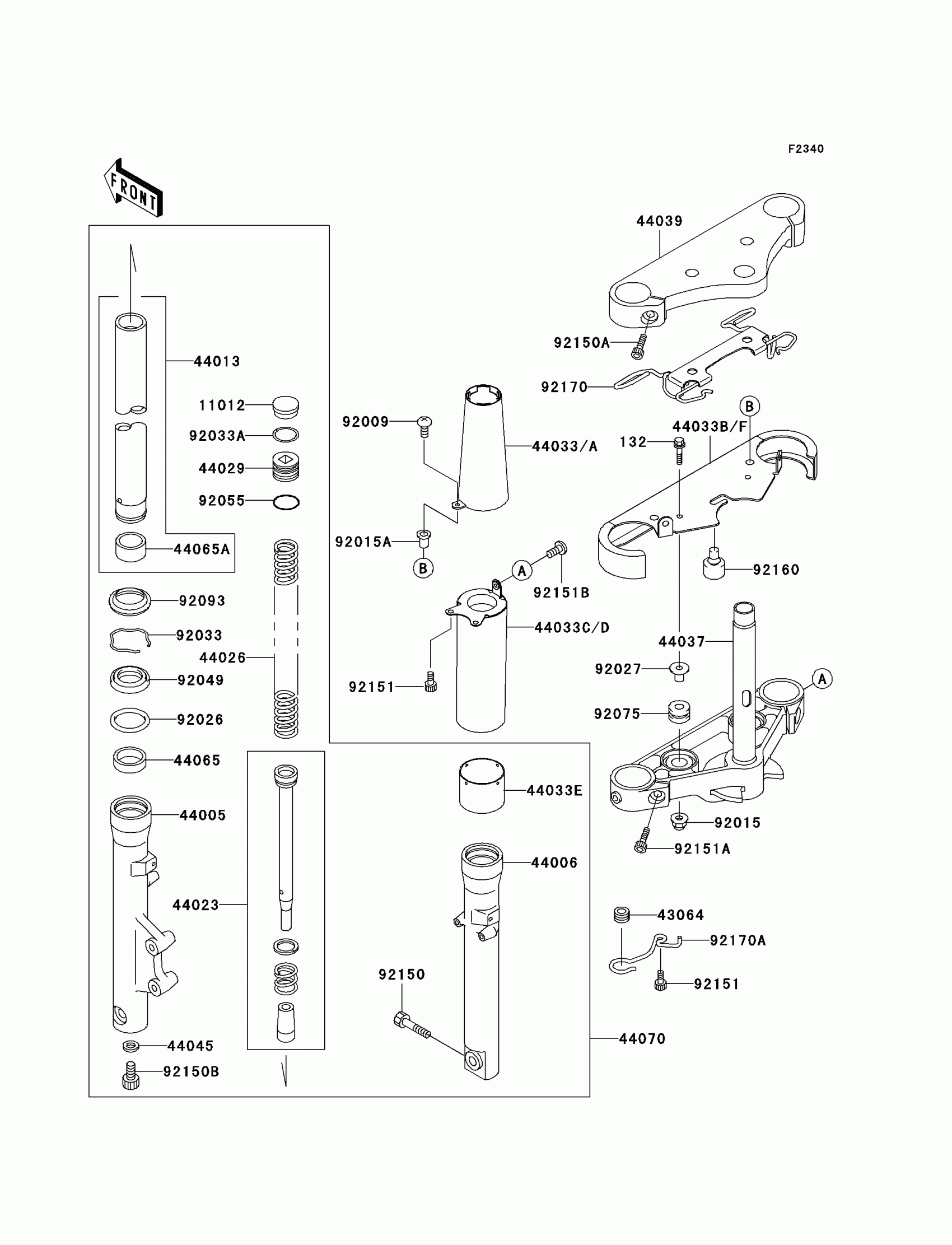

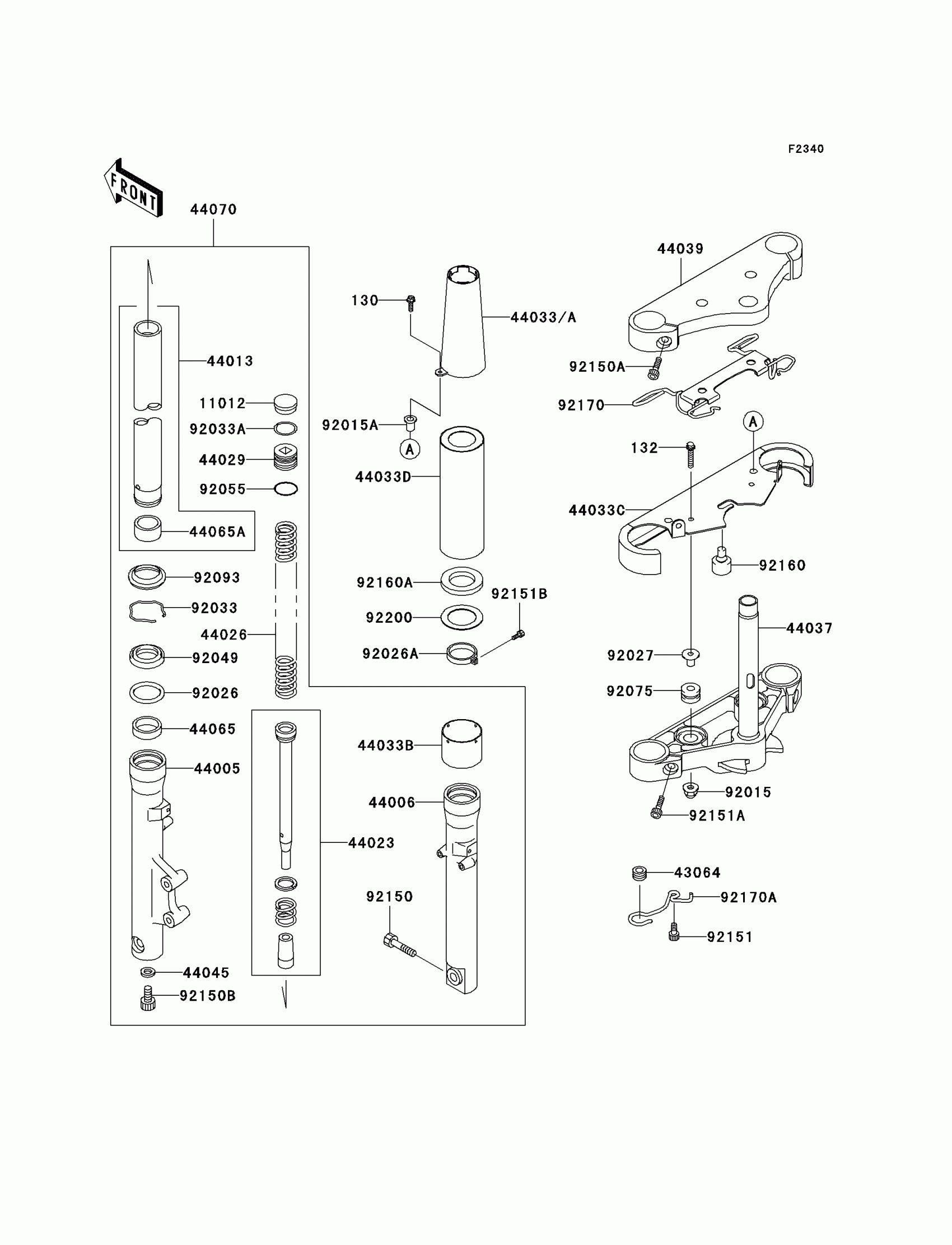

Kawasaki Vulcan 800 Classic Front Fork Diagram

#

Description
Price

11012

CAP,FORK TOP

11012-1618

$20.38

43064

GROMMET,HOSE CLAMP

43064-006

$3.29

44005

PIPE-LEFT FORK OUTER

44005-1366

$470.61

44006

PIPE-RIGHT FORK OUTER

44006-1365

$470.61

44013

PIPE-FORK INNER

44013-1426

$383.12

44023

CYLINDER-COMP-FORK

44023-1103

$129.56

44026

SPRING-FRONT FORK

44026-1615

$97.24

44029

SEAT-FORK SPRING

44029-1125

$44.89

44033

COVER-FORK,UPP,LH

44033-1215

$110.23

44033A

COVER-FORK,UPP,RH

44033-1216

$110.23

44033C

COVER-FORK,UNDER,LH

44033-1221

$124.53

44033D

COVER-FORK,UNDER,RH

44033-1222

$124.53

44033E

COVER-FORK

44033-1223

$22.85

44033F

COVER-FORK,LWR

44033-1235

$219.19

44037

HOLDER-FORK UNDER

44037-1344

$414.47

44039

HOLDER-FORK UPPER

44039-1260

$332.77

44045

GASKET,FORK CYLINDER BOLT

44045-051

$4.64

44065

BUSHING-FRONT FORK

44065-1079

$20.25

44065A

BUSHING-FRONT FORK,INNER PIPE

44065-1087

$26.61

44070

DAMPER-ASSY,FORK

44070-1511

$1,232.94

92009

SCREW,5X16,BLACK

92009-1654

$2.17

92015

NUT,CAP,6MM

92015-1385

$3.29

92015A

NUT,WELL,5MM

92015-1757

$5.58

92026

SPACER,FORK OUTER

92026-1276

Unavailable

92027

COLLAR,L=16.1

92027-1847

$4.67

92033

RING-SNAP

92033-1222

$4.88

92033A

RING-SNAP,SPRING SEAT

92033-1223

$5.10

92049

SEAL-OIL,FORK

92049-1363

$21.55

92055

RING-O,SPRING SEAT

92055-1363

$5.61

92075

DAMPER

92075-1035

$5.07

92093

SEAL,FORK

92093-1268

$20.76

92150

BOLT,SOCKET,10X40

92150-1029

Unavailable

92150A

BOLT,SOCKET,8X30

92150-1031

Unavailable

92150B

BOLT,SOCKET,8X18

92150-1432

$7.54

92151

BOLT,SOCKET,6X14

92151-1068

$4.25

92151A

BOLT,SOCKET,10X25

92151-1083

$9.56

92151B

BOLT,SOCKET,5X10

92151-1097

$2.63

92160

DAMPER

92160-1555

$8.03

92170

CLAMP

92170-1546

$79.52

92170A

CLAMP,CABLE

92170-1658

$15.78

132

BOLT-FLANGED-SMALL,6X30

132E0630

$5.42
