2000 Kawasaki Vulcan 800 Classic Cables Diagram

← All diagrams

Find the part on the Cables diagram for your 2000 Kawasaki Vulcan 800 Classic, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

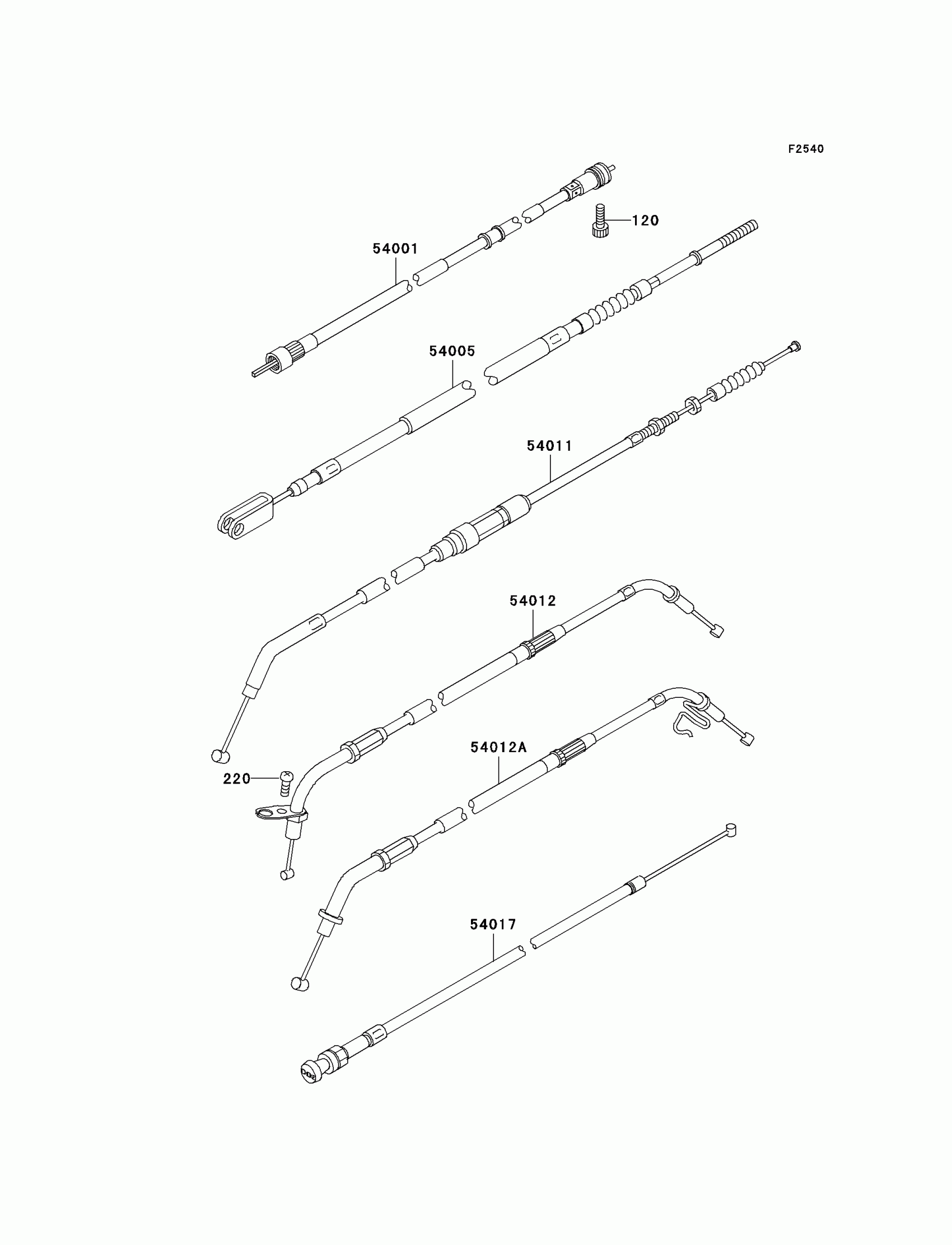

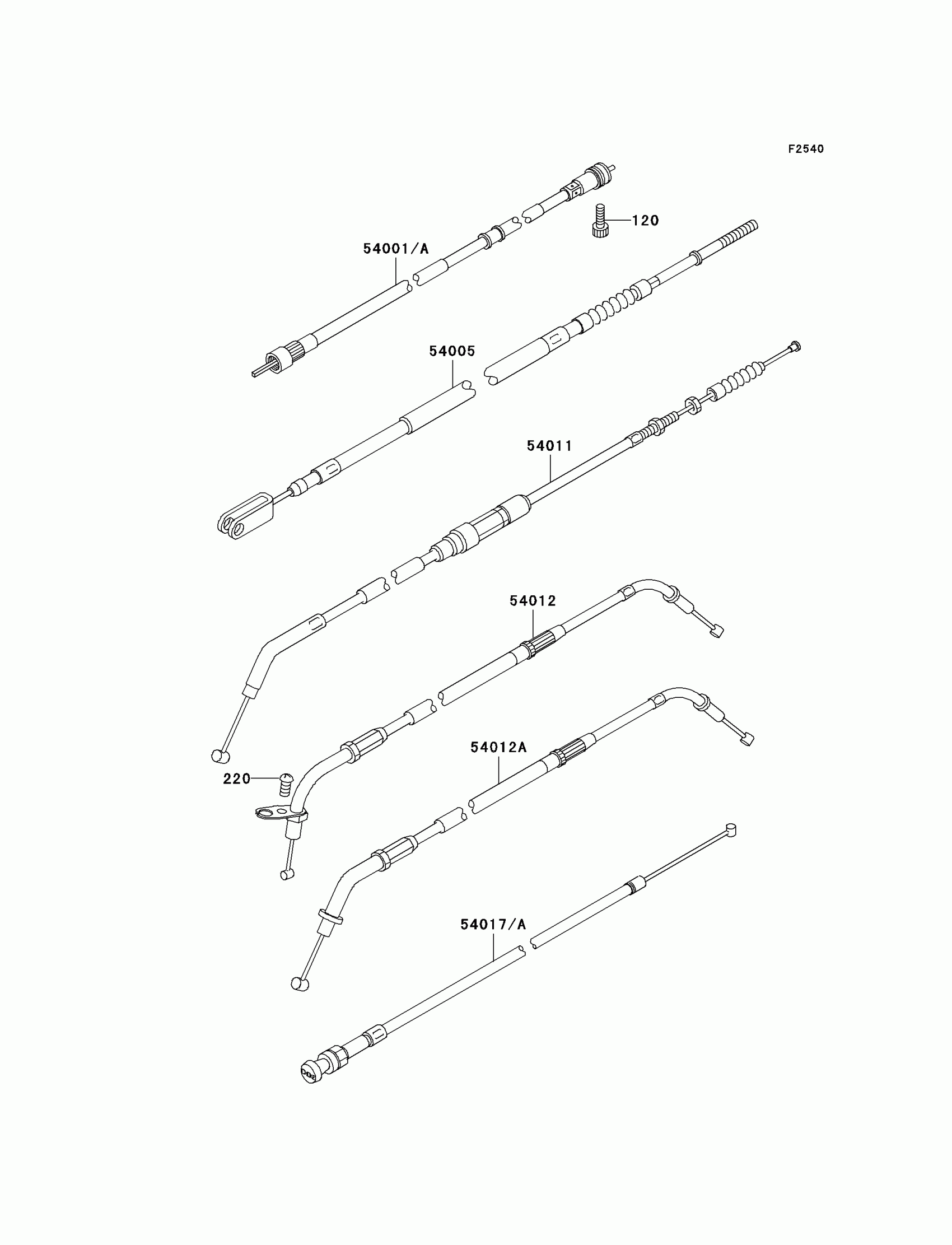

2000 Kawasaki Vulcan 800 Classic Cables Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,5X20

120P0520

1
Out of stock

220

SCREW-PAN-CROS

220C0514

1

$1.54

In stock

54001A

CABLE-SPEEDMETER

54001-1219

1
Out of stock

54005

CABLE-BRAKE

54005-1182

1

$53.18

In stock

54011

CABLE-CLUTCH

54011-1356

1

$32.22

In stock

54012

1

$35.55

In stock

54012A

1

$35.49

In stock

54017A

CABLE-STARTER

54017-1201

1

$33.97

In stock
