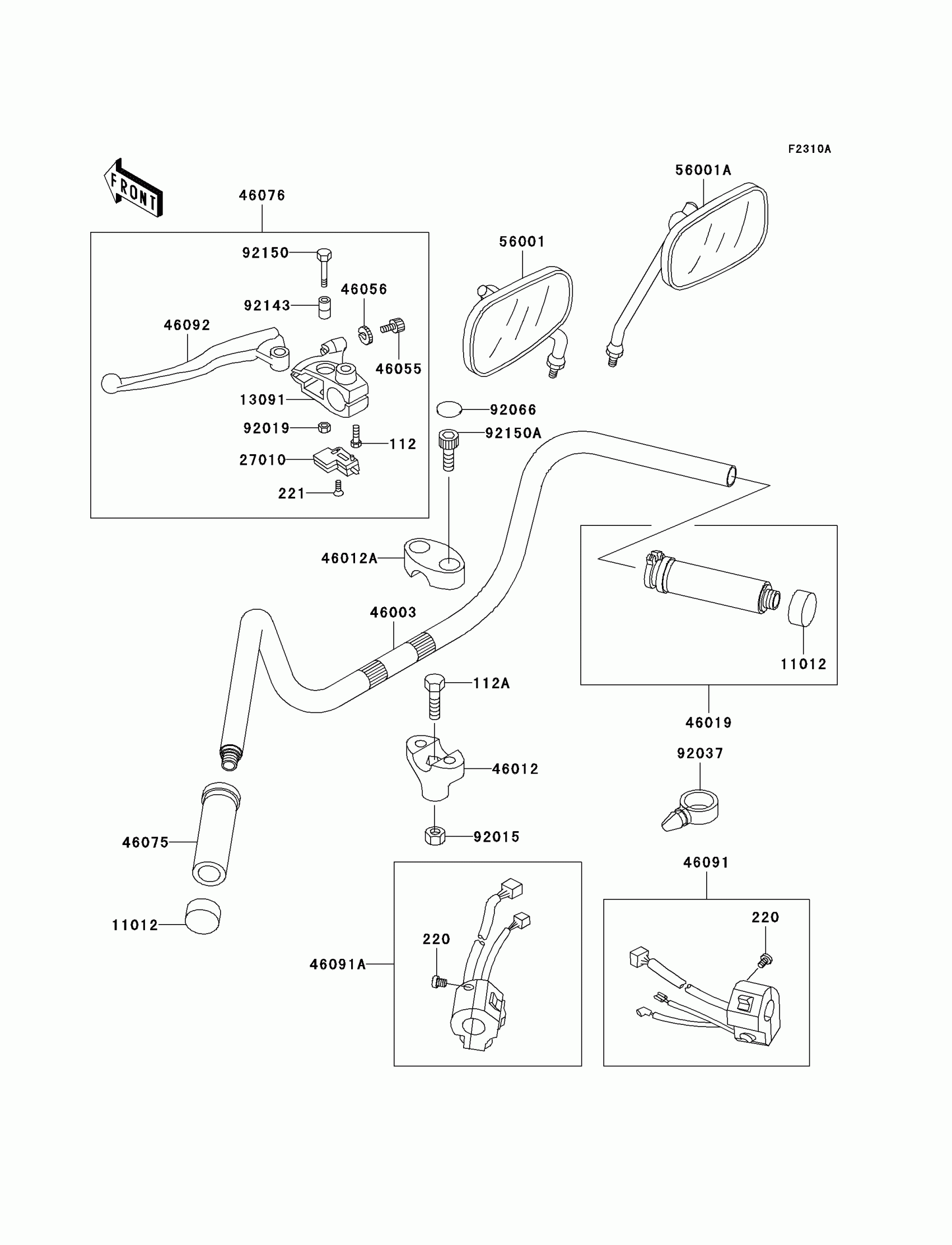

Kawasaki Vulcan 800 Classic Handlebar(VN800-B2/B3/B4/B5) Diagram

Description

Price

112

BOLT-UPSET,6X20

112G0620

Unavailable

112A

BOLT-UPSET,10X65

112H1065

Unavailable

220

SCREW-PAN-CROS,5X16

220E0516

$3.68

221

SCREW-CSK-CROS,3X20

221B0320

$4.66

11012

CAP,GRIP END

11012-1975

$19.19

13091

HOLDER,CLUTCH LEVER,SILVER

13091-1671

$60.25

27010

SWITCH,CLUTCH

27010-1268

$26.29

46003

HANDLE

46003-1458

$152.39

46012

HOLDER-HANDLE,LWR

46012-1272

Unavailable

46012A

HOLDER-HANDLE,UPP

46012-1273

$52.72

46019

GRIP-ASSY,THROTTLE

46019-1109

$63.56

46055

SCREW,CABLE ADJUST,8MM

46055-003

$12.92

46056

NUT,CABLE ADJUST LOCK,8MM

46056-005

$7.04

46075

GRIP,LH

46075-1074

$22.67

46076

LEVER-ASSY-GRIP,CLUTCH,SILVER

46076-1174

$89.65

46091

HOUSING-ASSY-CONTROL,RH

46091-1637

Unavailable

46091A

HOUSING-ASSY-CONTROL,LH

46091-1638

Unavailable

46092

LEVER-GRIP,CLUTCH

46092-1164

$25.53

56001

MIRROR-ASSY,LH

56001-1451

$85.41

56001A

MIRROR-ASSY,RH

56001-1452

$85.41

92015

NUT,LOCK,FLANGED,10MM

92015-1717

$7.86

92019

NUT,LOCK,6MM

92019-008

$3.36

92037

CLAMP,HOSE

92037-1827

$5.93

92066

PLUG

92066-1285

$6.18

92143

COLLAR

92143-1351

$16.78

92150

BOLT,LEVER SET

92150-1330

$13.03

92150A

BOLT,SOCKET,10X23

92150-1942

$5.84
