1989 Kawasaki Vulcan 750 Stand Diagram

← All diagrams

Find the part on the Stand diagram for your 1989 Kawasaki Vulcan 750, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

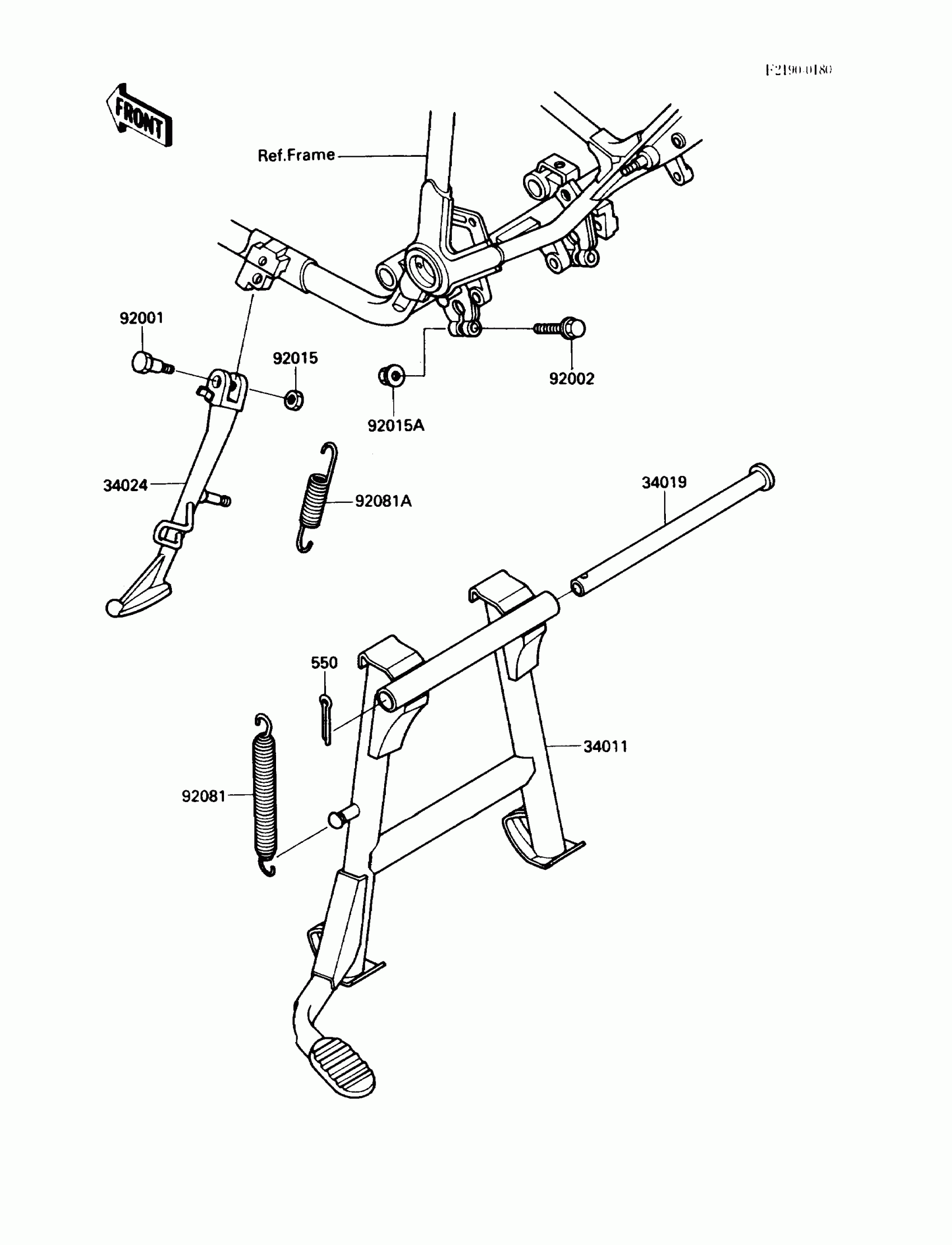

1989 Kawasaki Vulcan 750 Stand Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

34011

STAND-CENTER

34011-1126

1

$154.66

In stock

34019

SHAFT-STAND

34019-1051

1

$19.78

In stock

34024

STAND-SIDE

34024-1201

1

$107.18

In stock

92001

1

$12.47

In stock

92002

BOLT,FLANGED,8X40

92002-1113

1

$3.72

In stock

92015

NUT,LOCK,10MM,BLACK

92015-1188

1
Out of stock

92015A

NUT,FLANGED,8MM

92015-1409

1
Out of stock

92081

SPRING,CNT STAND

34023-012

1
Out of stock

92081A

SPRING,SIDE STAND

92081-1894

1
Out of stock

550

1

$2.08

In stock
