1989 Kawasaki Vulcan 750 Footrests Diagram

← All diagrams

Find the part on the Footrests diagram for your 1989 Kawasaki Vulcan 750, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

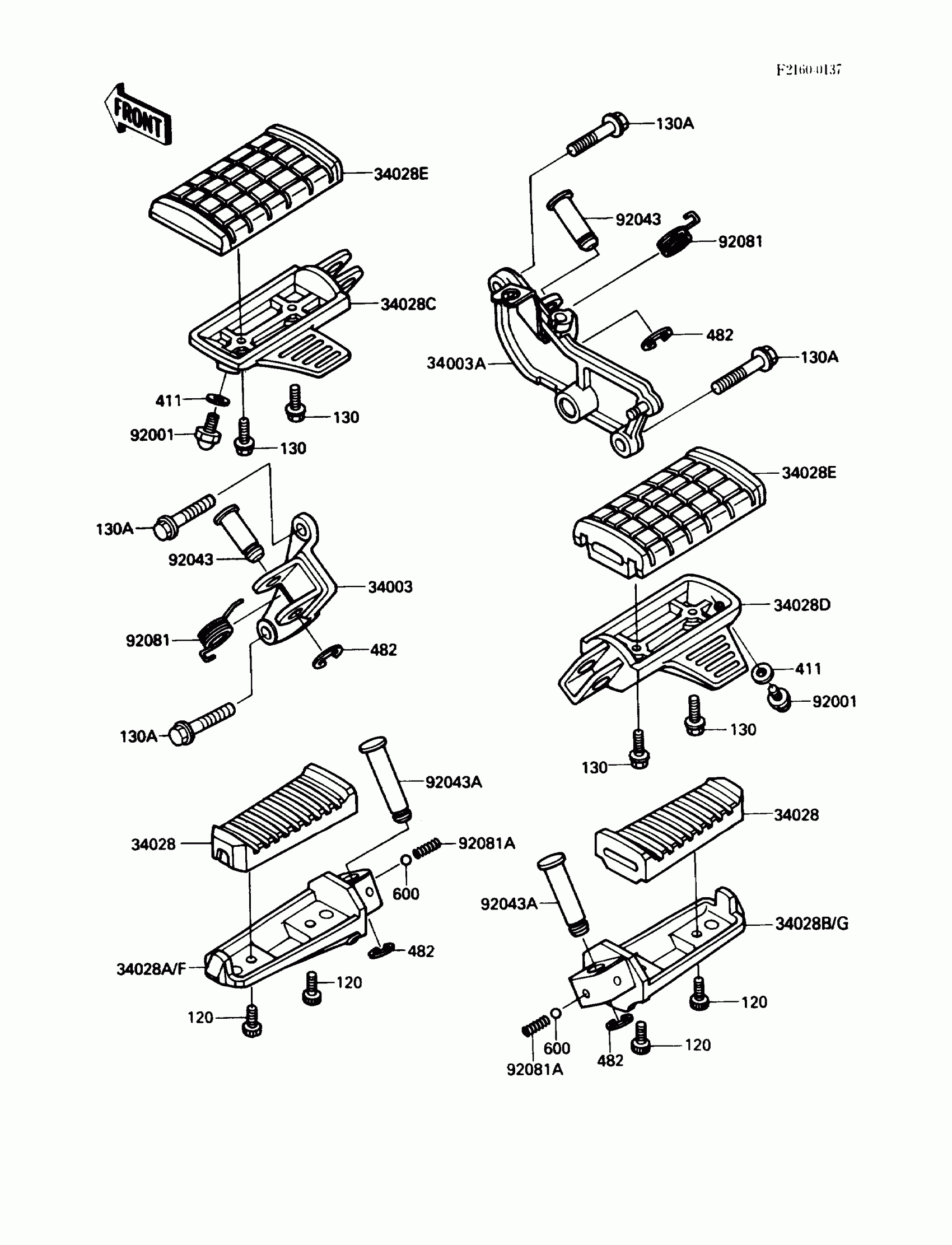

1989 Kawasaki Vulcan 750 Footrests Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

34003

HOLDER-STEP,FR,LH

34003-1225

1

$89.46

In stock

34003A

HOLDER-STEP,FR,RH

34003-1226

1

$243.23

In stock

34028

STEP,RR,RUBBER

34028-1060

1

$21.98

In stock

34028C

STEP,FR,LH

34028-1147

1

$74.26

In stock

34028D

STEP,FR,RH

34028-1148

1

$53.48

In stock

34028E

STEP,FR,RUBBER

34028-1149

1

$22.45

In stock

34028F

STEP,RR,LH

34028-1175

1

$83.98

In stock

34028G

STEP,RR,RH

34028-1176

1

$83.98

In stock

92001

BOLT,BANK SENSOR

92001-1905

1

$7.22

In stock

92043

PIN,12X37

92043-1144

1

$8.90

In stock

92043A

PIN,12X42.5

92043-1145

1

$9.27

In stock

92081

1

$5.15

In stock

92081A

SPRING,COIL,STEP,RR

92081-1588

1
Out of stock

120

BOLT-SOCKET,5X14

120Z0514

1
Out of stock

130

BOLT-FLANGED,5X12

130D0512

1
Out of stock

130A

BOLT-FLANGED,10X30

130J1030

1
Out of stock

411

WASHER PLAIN 6MM

411B0600

1
Out of stock

482

1

$0.98

In stock

600

BALL-STEEL,1/4

600A0800

1

$0.67

In stock
