1989 Kawasaki Vulcan 750 Fenders Diagram

← All diagrams

Find the part on the Fenders diagram for your 1989 Kawasaki Vulcan 750, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

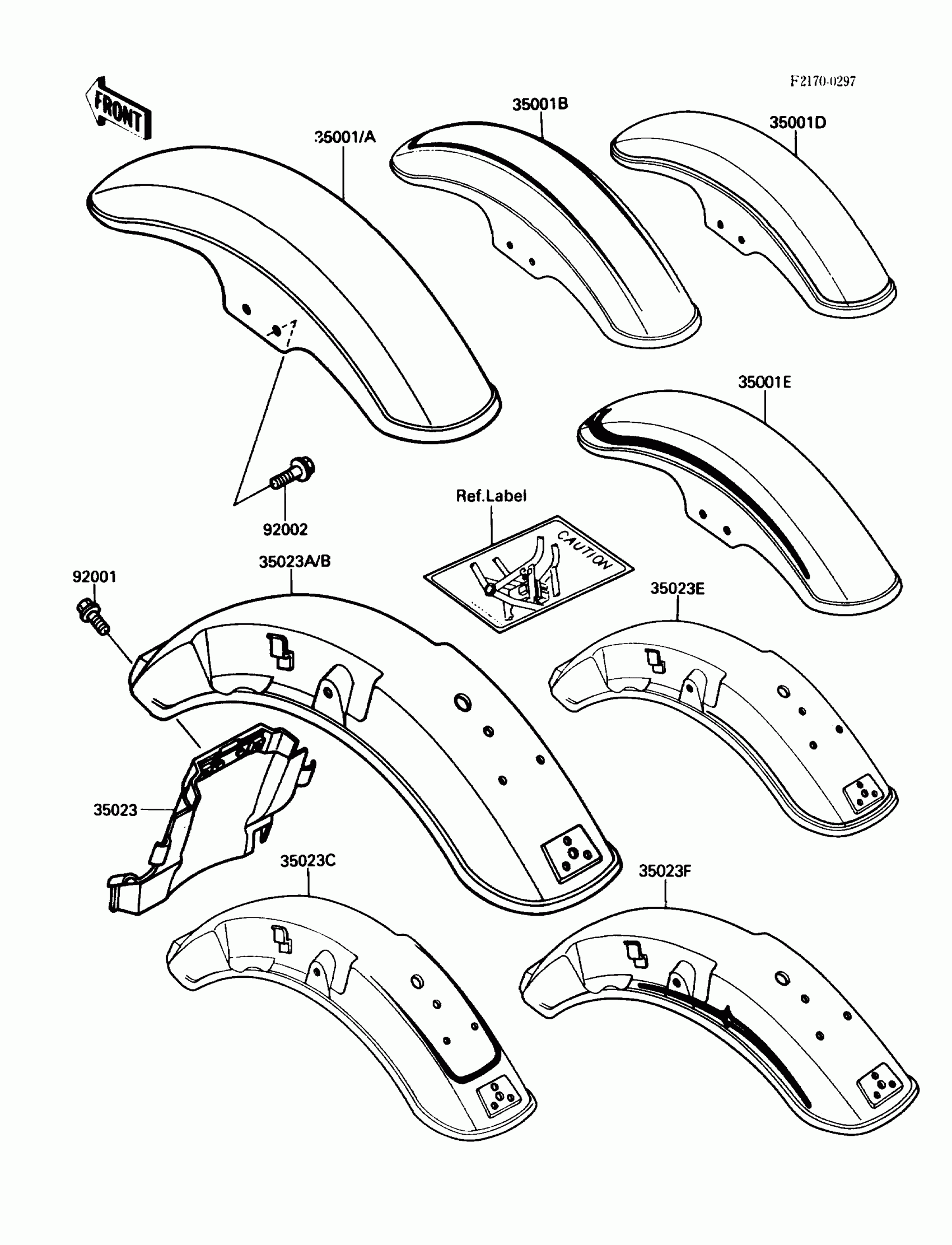

1989 Kawasaki Vulcan 750 Fenders Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

35001E

FENDER-ASSY-FRONT,EBONY

35001-5043-H8

1
Out of stock

35023

FENDER-REAR,FR

35023-1123

1
Out of stock

35023F

FENDER-REAR,RR,EBONY

35023-5043-H8

1
Out of stock

92001

BOLT,6X20

92001-1773

1
Out of stock

92002

BOLT,FLANGED,8X16

92002-1200

1
Out of stock
