1994 Kawasaki Vulcan 500 Crankcase Bolt Pattern Diagram

← All diagrams

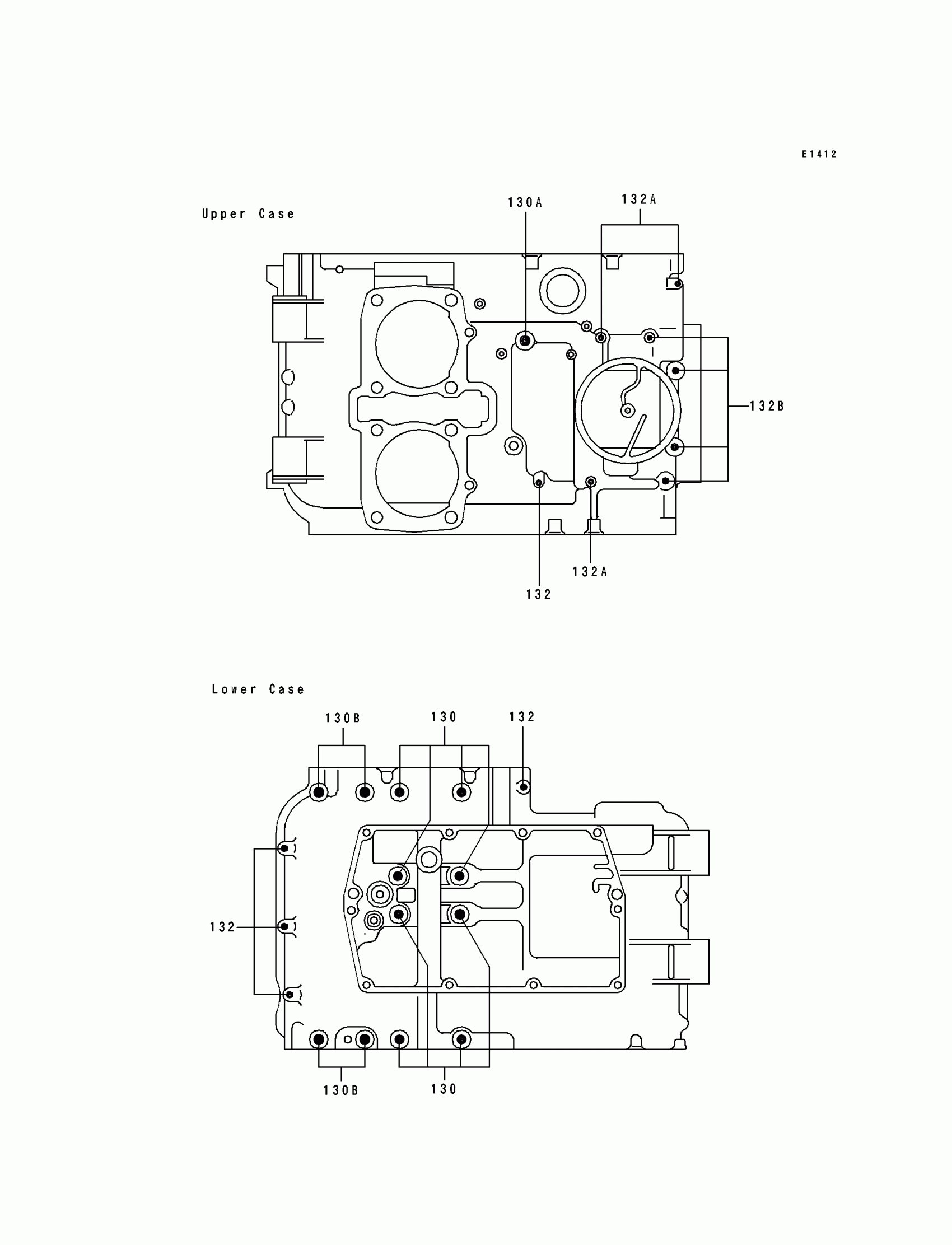

Find the part on the Crankcase Bolt Pattern diagram for your 1994 Kawasaki Vulcan 500, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1994 Kawasaki Vulcan 500 Crankcase Bolt Pattern Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED

130Z08100

1
Out of stock

130A

BOLT-FLANGED

130Z0855

1
Out of stock

130B

BOLT-FLANGED

130Z0875

1
Out of stock

132

BOLT-FLANGED-SMALL,6X40

132Y0640

1
Out of stock

132A

BOLT-FLANGED-SMALL,6X60

132Y0660

1
Out of stock

132B

BOLT-FLANGED-SMALL,6X80

132Y0680

1
Out of stock
