2000 Kawasaki Vulcan 500 LTD Swingarm Diagram

← All diagrams

Find the part on the Swingarm diagram for your 2000 Kawasaki Vulcan 500 LTD, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

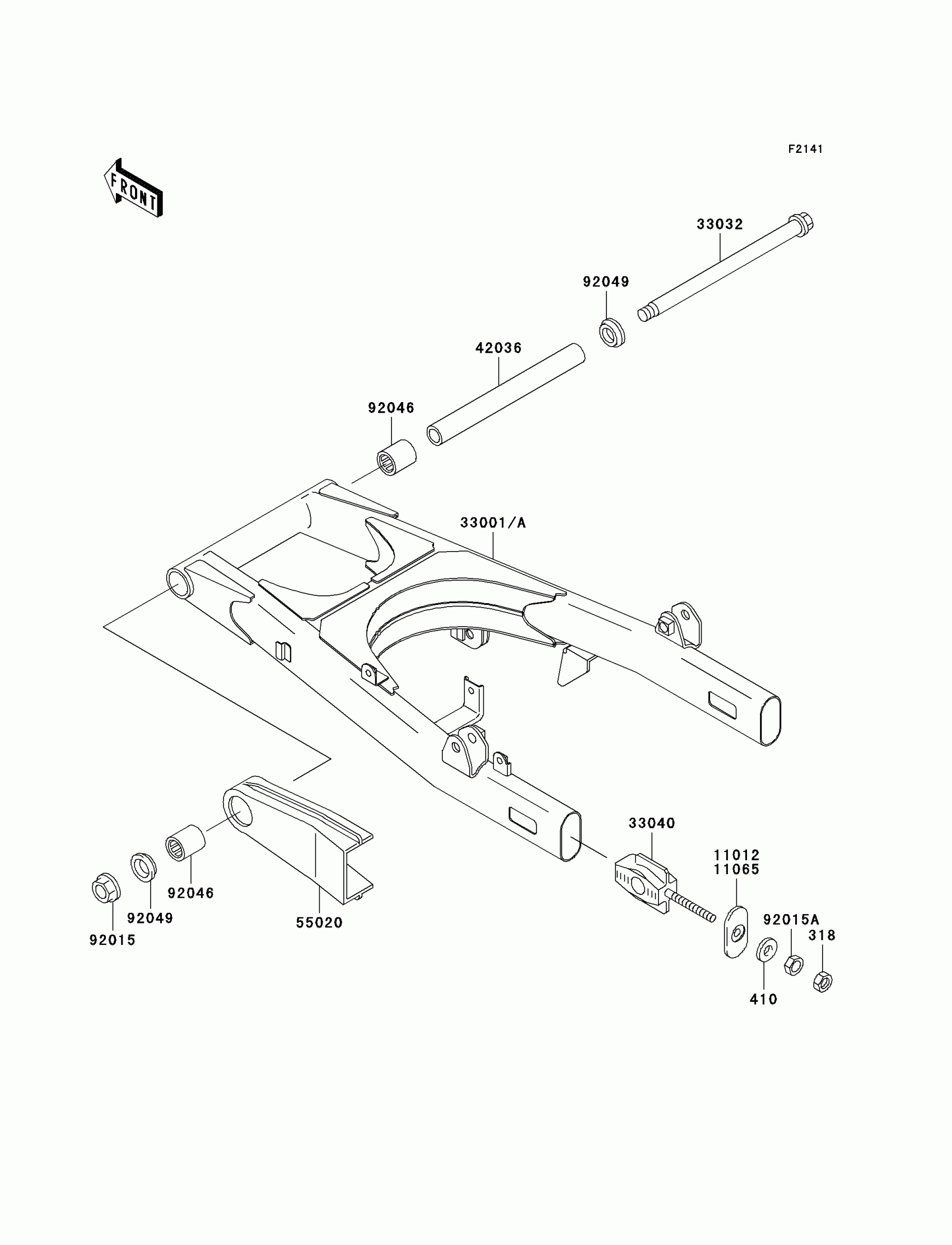

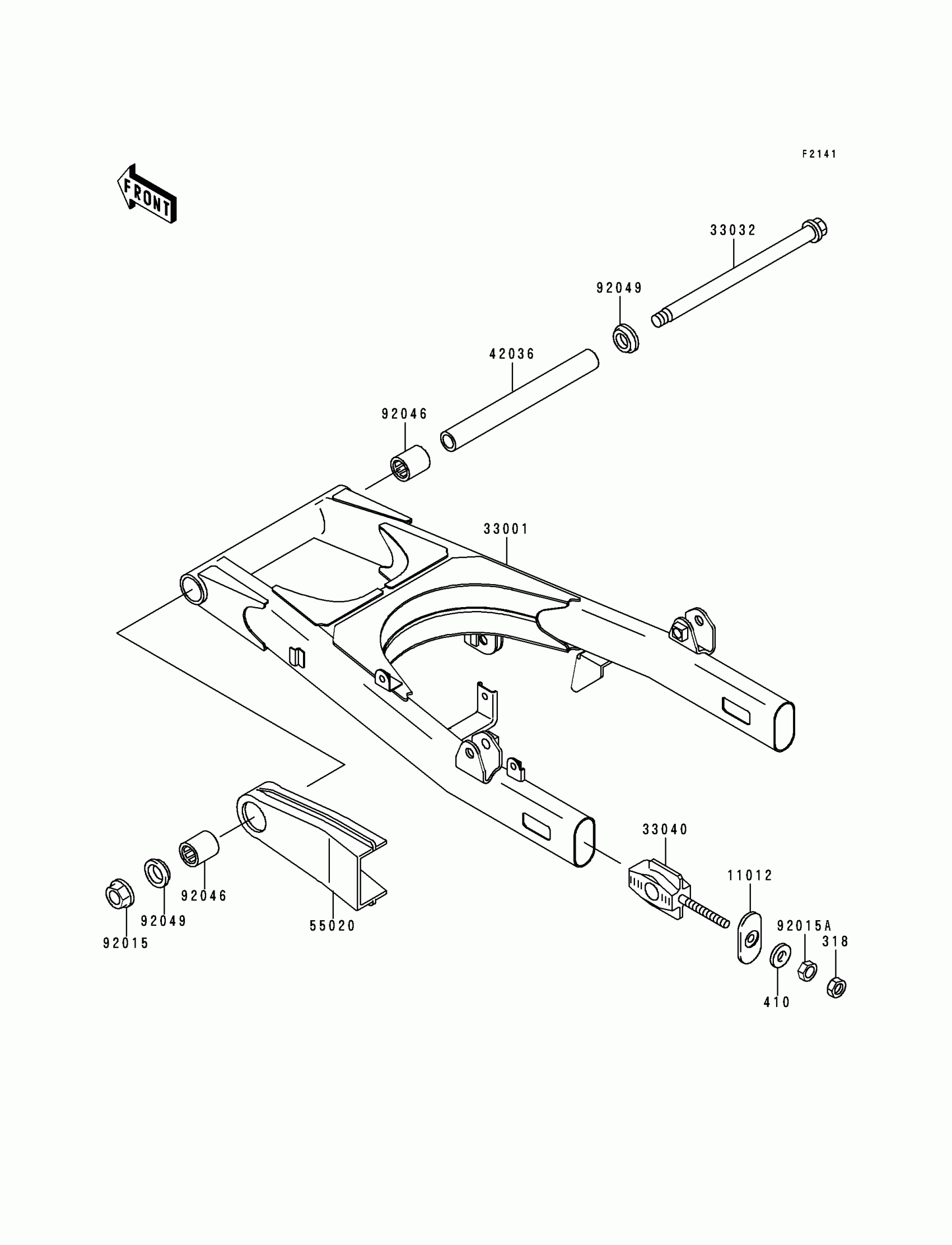

2000 Kawasaki Vulcan 500 LTD Swingarm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

318

NUT-HEX-SMALL

318C0800

1
Out of stock

410

WASHER-PLAIN-SMALL,8MM,BLACK

410F0800

1
Out of stock

11012

CAP,CHAIN ADJUSTER

11012-1819

1

$21.17

In stock

33001

ARM-COMP-SWING

33001-1499

1

$487.96

In stock

33032

SHAFT-SWING ARM

33032-1180

1

$72.17

In stock

33040

1

$36.90

In stock

42036

1

$65.89

In stock

55020

GUARD,CHAIN

55020-1559

1

$50.12

In stock

92015

NUT,14MM

92015-1407

1

$7.86

In stock

92015A

NUT,8MM

92015-1959

1

$5.25

In stock

92046

BEARING-NEEDLE,TA2230Z

92046-1174

1
Out of stock

92049

SEAL-OIL,MHA22X29X5.7F

92049-1289

1
Out of stock
