2000 Kawasaki Vulcan 500 LTD Cables Diagram

← All diagrams

Find the part on the Cables diagram for your 2000 Kawasaki Vulcan 500 LTD, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

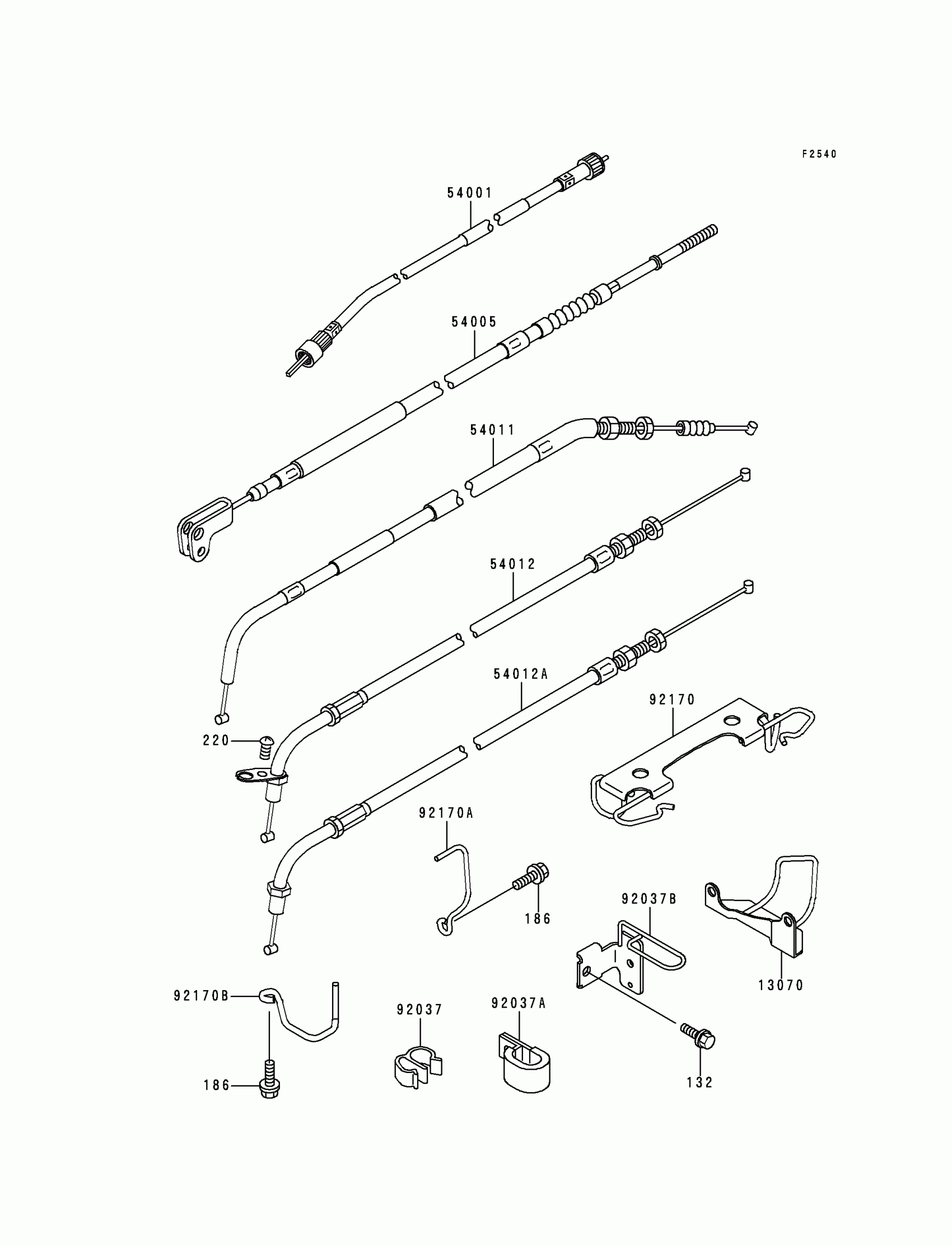

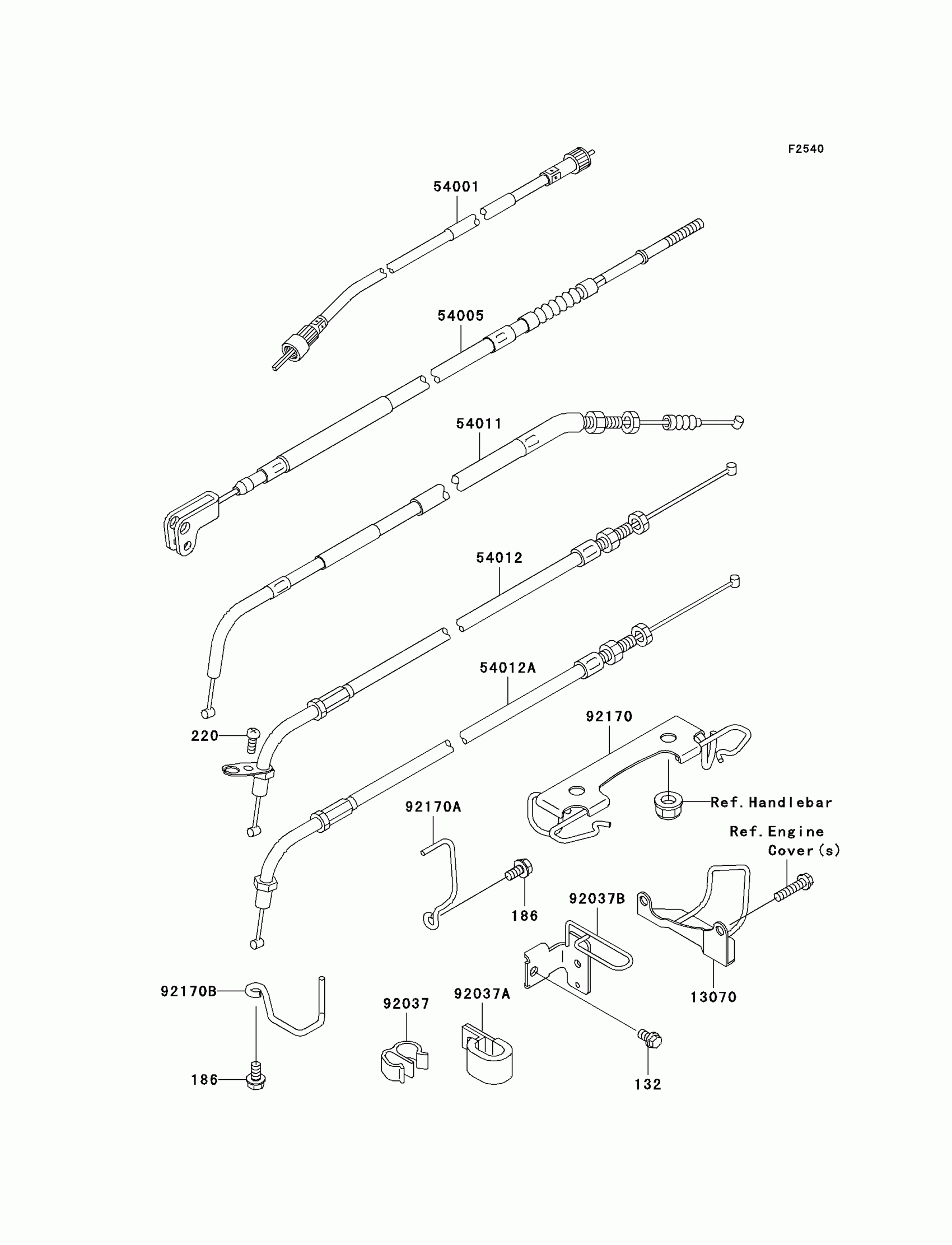

2000 Kawasaki Vulcan 500 LTD Cables Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

1

$3.72

In stock

186

BOLT-UPSET-WP

186J0614

1
Out of stock

220

SCREW-PAN-CROS

220C0514

1

$1.54

In stock

13070

GUIDE,CABLE

13070-1297

1

$25.44

In stock

54001

CABLE-SPEEDMETER

54001-1217

1

$22.81

In stock

54005

CABLE-BRAKE

54005-1185

1

$51.66

In stock

54011

CABLE-CLUTCH

54011-1362

1

$27.36

In stock

54012

1

$33.09

In stock

54012A

1

$33.09

In stock

92037

CLAMP

92037-1458

1

$5.66

In stock

92037A

CLAMP

92037-1608

1

$6.44

In stock

92037B

CLAMP,CABLE

92037-1885

1

$19.97

In stock

92170

CLAMP,CABLE&HOSE

92170-1648

1

$66.35

In stock

92170A

CLAMP,CABLE

92170-1663

1

$14.24

In stock

92170B

CLAMP,CABLE

92170-1690

1

$17.31

In stock
