2000 Kawasaki Vulcan 500 LTD Fuel Tank Diagram

← All diagrams

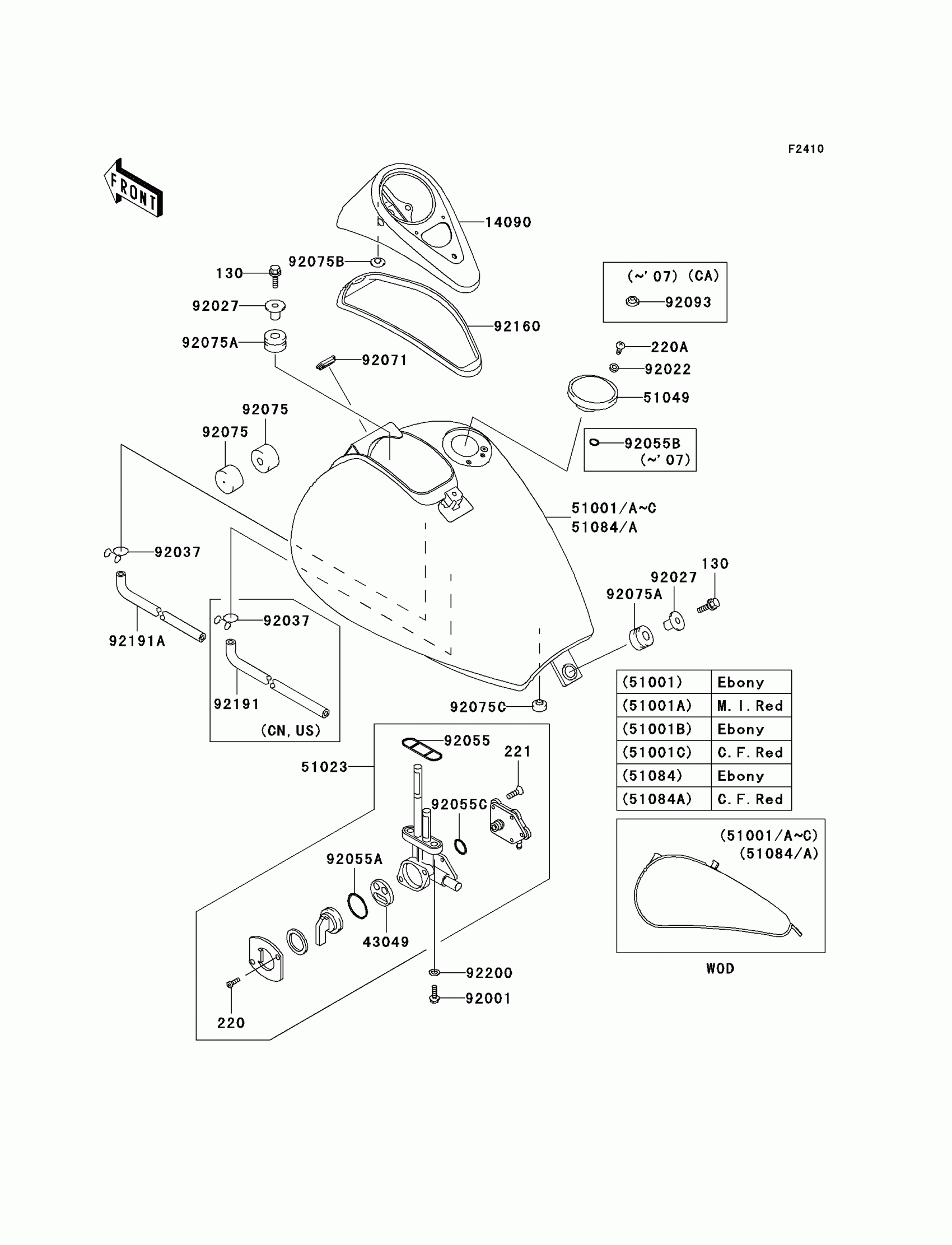

Find the part on the Fuel Tank diagram for your 2000 Kawasaki Vulcan 500 LTD, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2000 Kawasaki Vulcan 500 LTD Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14090

COVER,METER

14090-1560

1
Out of stock

43049

PACKING,TAP VALVE

43049-1066

1
Out of stock

51023

TAP-ASSY,FUEL

51023-1223

1
Out of stock

51049

CAP-TANK,FUEL

51049-1103

1
Out of stock

92022

WASHER-PLAIN

92022-183

1
Out of stock

92022A

WASHER,5.1X10X1.0

92022-1977

1
Out of stock

92027

COLLAR,L=19.3

92027-1780

1
Out of stock

92055

RING-O

92055-1023

1
Out of stock

92055A

RING-O,FUEL TAP PACKING

92055-1112

1
Out of stock

92055B

RING-O,TAP LEVER

92055-1419

1
Out of stock

92071

GROMMET

92071-1187

1
Out of stock

92075

DAMPER,FUEL TANK

92075-125

1
Out of stock

92075A

DAMPER

92075-1736

1
Out of stock

92075B

DAMPER

92075-1876

1
Out of stock

92075C

DAMPER,RUBBER

92075-261

1
Out of stock

92150

BOLT,FLANGED,6X16

92150-1358

1
Out of stock

92160

DAMPER,METER COVER

92160-1593

1
Out of stock

130

BOLT,FLANGED,8X30

130G0830

1
Out of stock

220

SCREW-PAN-CROS,3X8

220B0308

1
Out of stock

220A

SCREW-PAN-CROS,5X10

220D0510

1
Out of stock

221

SCREW-CSK-CROS,4X14

221B0414

1
Out of stock

670

O RING,4MM

670B1504

1
Out of stock

51001B

TANK-COMP-FUEL,EBONY/RED

51001-1503-2N

1
Out of stock

51001G

TANK-COMP-FUEL,EBONY/RED

51001-1504-2N

1
Out of stock

92037

CLAMP,TUBE

92037-147

1
Out of stock

92093

SEAL,FUEL TANK CAP

92093-1030

1
Out of stock

92191

TUBE

92191-1015

1
Out of stock
