2000 Kawasaki Vulcan 500 LTD Air Cleaner Diagram

← All diagrams

Find the part on the Air Cleaner diagram for your 2000 Kawasaki Vulcan 500 LTD, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

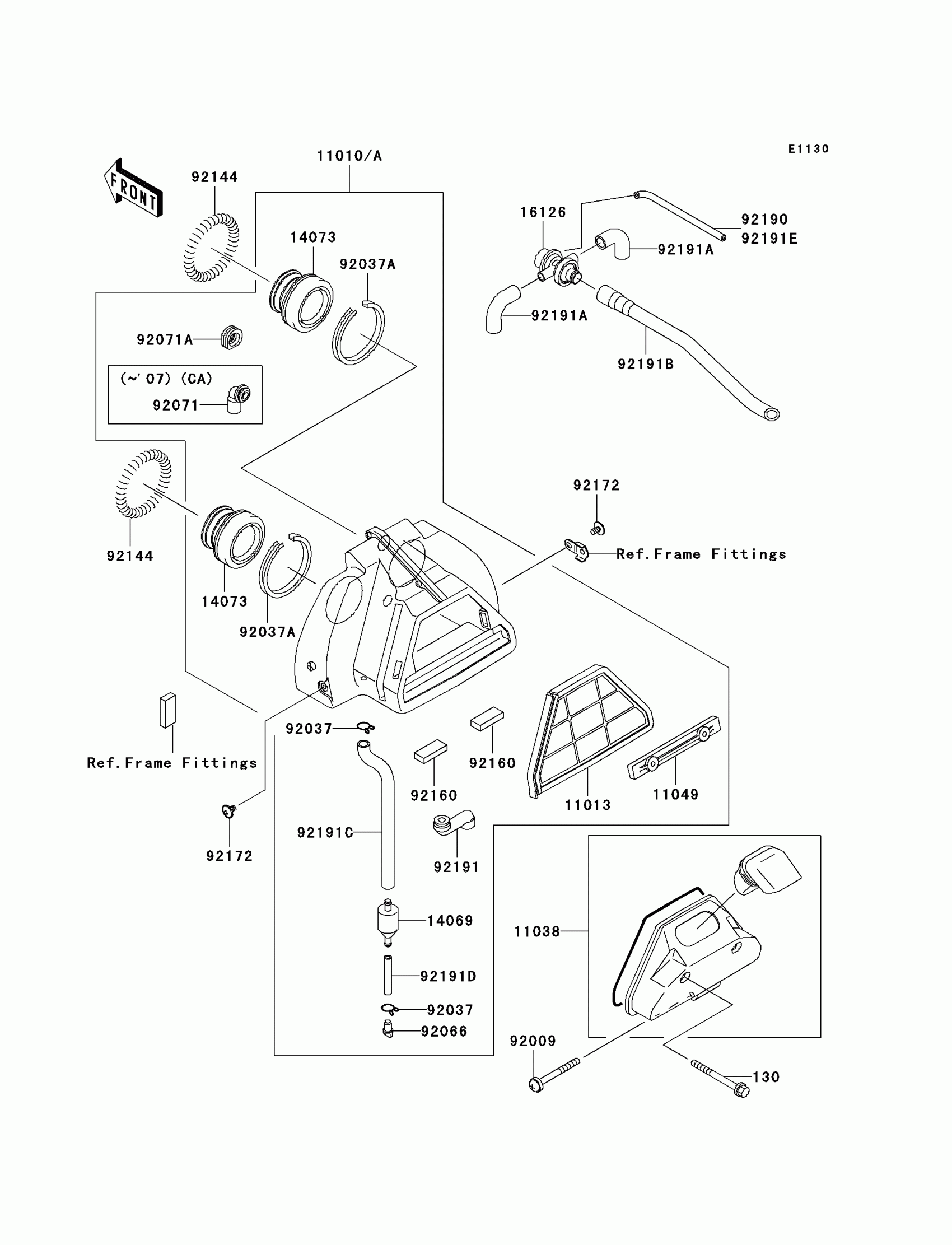

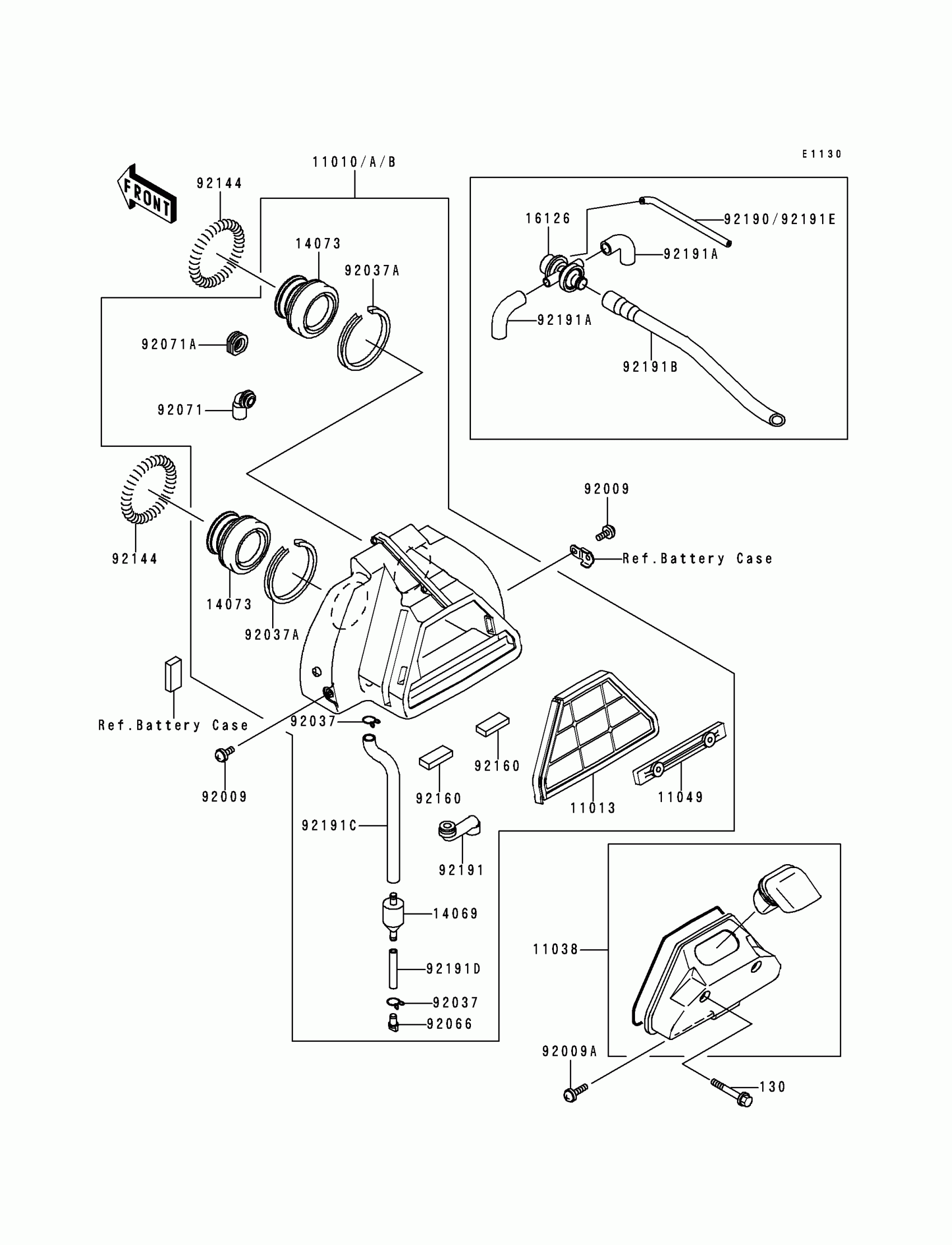

2000 Kawasaki Vulcan 500 LTD Air Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED

130H0660

1
Out of stock

11013

ELEMENT-AIR FILTER

11013-1250

1
Out of stock

11038

CASE-ASSY-AIR FILTER

11038-1107

1
Out of stock

11049

BRACKET

11049-1456

1
Out of stock

14069

BREATHER

14069-1051

1
Out of stock

14073

DUCT,AIR FILTER

14073-1651

1
Out of stock

16126

VALVE,AIR SWITCH

16126-1318

1
Out of stock

92009

SCREW,6X10

92009-1402

1
Out of stock

92009A

SCREW,6X55

92009-1754

1
Out of stock

92037

CLAMP,TUBE

92037-147

1
Out of stock

92037A

CLAMP,69MM

92037-1631

1
Out of stock

92066

PLUG,DRAIN

92066-1211

1
Out of stock

92071A

GROMMET

92071-1165

1
Out of stock

92144

SPRING,AIR FILTER DUCT

92144-1771

1
Out of stock

92160

DAMPER

92160-1689

1
Out of stock

92191

TUBE,BREATHER

92191-1044

1
Out of stock

92191A

TUBE

92191-1045

1
Out of stock

92191B

TUBE

92191-1046

1
Out of stock

92191C

TUBE,AIR FILTER

92191-1074

1
Out of stock

92191D

TUBE,6X10X60

92191-1075

1
Out of stock

11010A

FILTER-ASSY-AIR

11010-1570

1
Out of stock

11010B

FILTER-ASSY-AIR

11010-1577

1
Out of stock

92071

GROMMET,AIR FILTER

92071-1114

1
Out of stock

92190

TUBE,4X9X336

92190-1444

1
Out of stock

92191E

TUBE,4X9X266

92191-1077

1
Out of stock
