2000 Kawasaki Vulcan 500 LTD Carburetor Diagram

← All diagrams

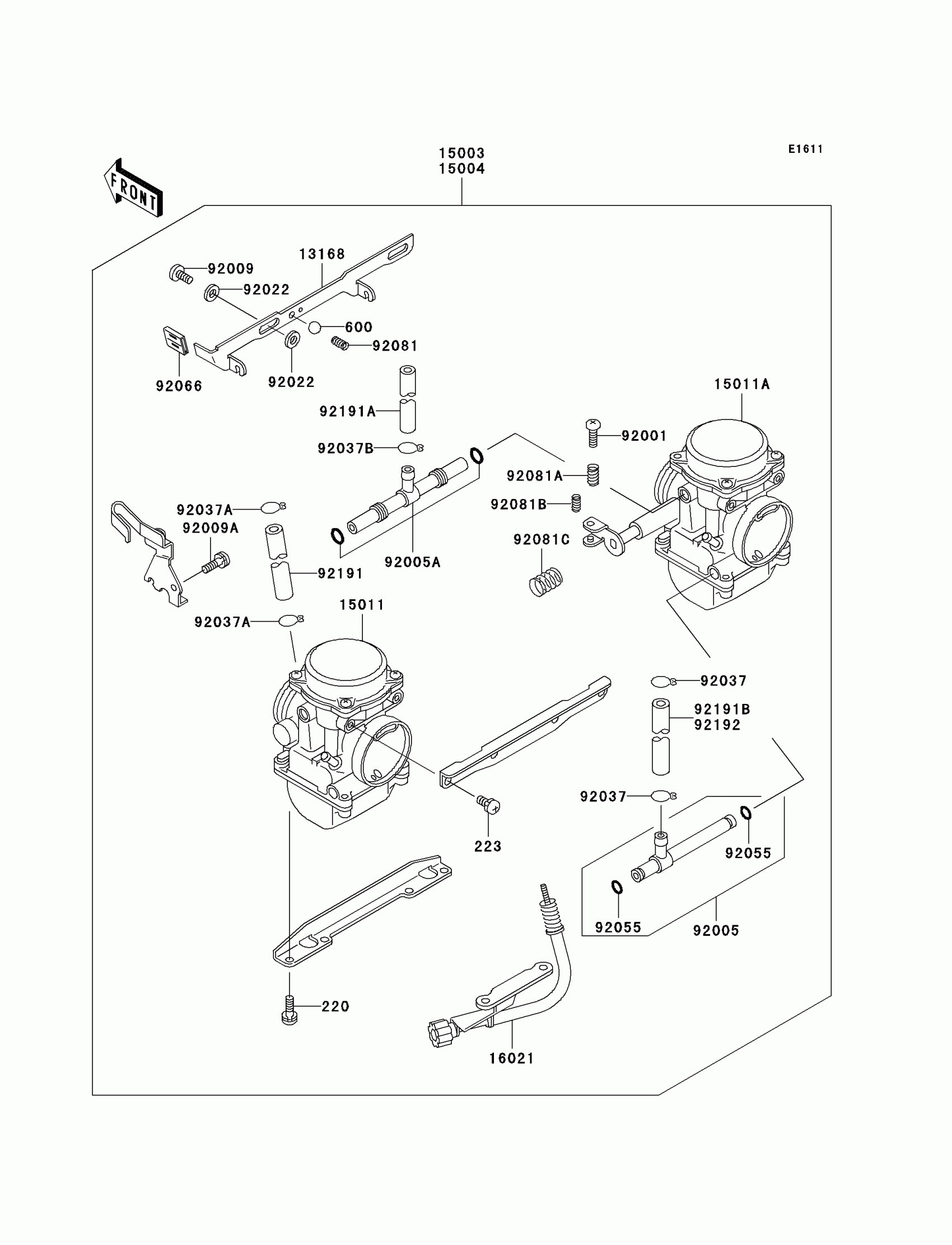

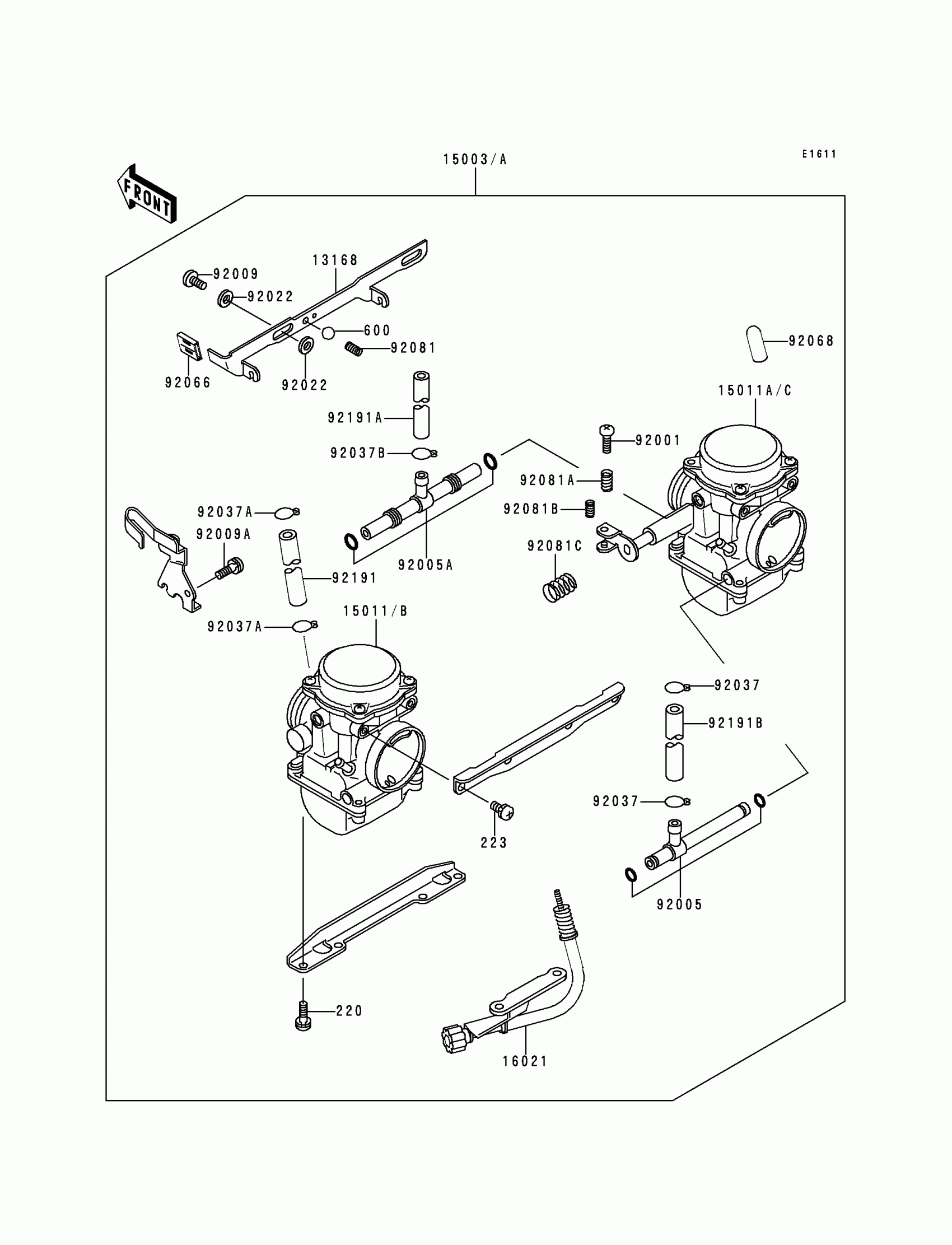

Find the part on the Carburetor diagram for your 2000 Kawasaki Vulcan 500 LTD, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2000 Kawasaki Vulcan 500 LTD Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

220

SCREW-PAN-CROS,6X16

220B0616

1
Out of stock

223

1

$3.28

In stock

600

BALL-STEEL,3/16

600A0600

1

$1.02

In stock

13168

LEVER,STARTER

13168-1444

1

$83.77

In stock

15003

CARBURETOR-ASSY

15003-1235

1
Out of stock

15011

CARBURETOR,LH

15011-1252

1

$741.13

In stock

15011A

CARBURETOR,RH

15011-1253

1
Out of stock

16021

SCREW-THROTTLE STOP

16021-1175

1

$122.62

In stock

92001

1

$15.88

In stock

92005

FITTING

92005-1325

1
Out of stock

92005A

FITTING

92005-1326

1
Out of stock

92009

SCREW

92009-1262

1
Out of stock

92009A

SCREW,5X10

92009-1365

1
Out of stock

92022

1

$3.82

In stock

92037

CLAMP,FUEL TUBE

92037-1075

1

$3.16

In stock

92037A

CLAMP,TUBE

92037-1477

1

$3.43

In stock

92037B

CLAMP,TUBE

92037-1531

1

$4.37

In stock

92066

PLUG,STARTER LEVER

92066-1157

1

$17.44

In stock

92068

PLUG,12X25

92068-006

1

$3.39

In stock

92081

SPRING,SHAFT STOP

92081-1619

1
Out of stock

92081A

SPRING

92081-1620

1

$3.94

In stock

92081B

1

$4.12

In stock

92081C

SPRING

92081-1876

1

$10.93

In stock

92191

TUBE,5X9X230

92191-1103

1

$18.27

In stock

92191A

TUBE,7X11X330

92191-1104

1

$34.92

In stock

92191B

TUBE,7.3X12.5X320

92191-1110

1

$32.80

In stock
