2000 Kawasaki Vulcan Fuel Tank Diagram

← All diagrams

Find the part on the Fuel Tank diagram for your 2000 Kawasaki Vulcan, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

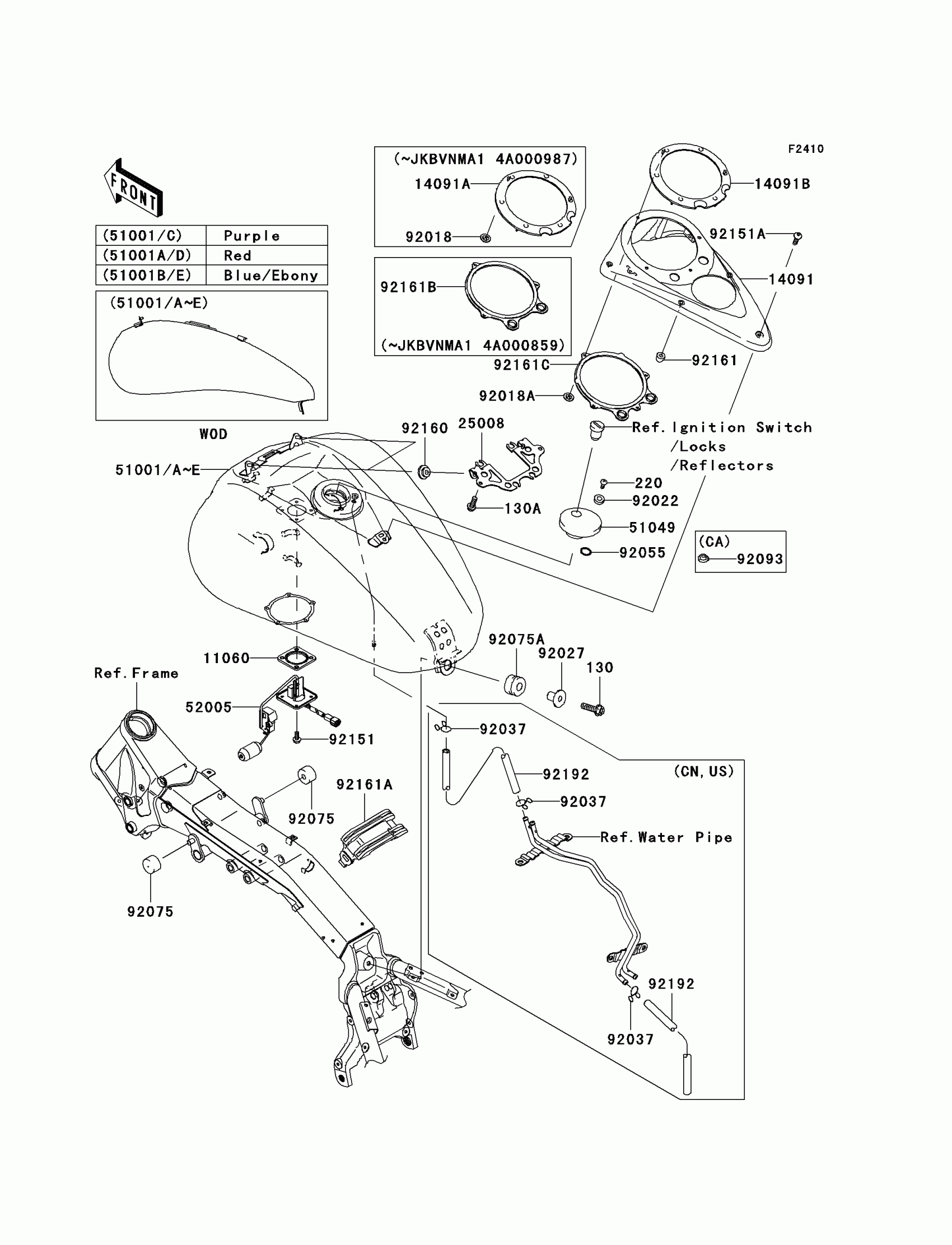

2000 Kawasaki Vulcan Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11060

GASKET,FUEL GAUGE

11060-1952

1

$19.64

In stock

14091

COVER,METER,LWR

14091-0187

1

$866.62

In stock

14091A

COVER,METER,UPP

14091-0278

1
Out of stock

14091B

COVER,METER,UPP

14091-0284

1

$51.88

In stock

25008

BRACKET-METER

25008-0001

1

$25.68

In stock

51049

CAP-TANK,FUEL

51049-0003

1

$107.25

In stock

52005

GAUGE,FUEL

52005-0002

1

$208.50

In stock

92018

NUT,PUSH,3MM

92018-005

1

$2.25

In stock

92018A

NUT,PUSH,3MM

92018-005

1

$2.25

In stock

92022

WASHER,5.1X10X1.0

92022-1977

1
Out of stock

92027

COLLAR,L=19.3

92027-1780

1

$5.21

In stock

92055

RING-O,ID=9

92055-1552

1

$2.80

In stock

92075

DAMPER,FUEL TANK

92075-125

1

$4.93

In stock

92075A

DAMPER

92075-1736

1

$5.21

In stock

92151

BOLT,5X12

92151-1599

1

$1.28

In stock

92151A

BOLT,SOCKET,6X12

92151-1940

1

$2.97

In stock

92160

DAMPER

92160-1613

1

$2.97

In stock

92161

DAMPER,METER COVER

92161-0040

1

$3.59

In stock

92161A

1

$20.10

In stock

92161B

DAMPER,METER

92161-0159

1

$21.41

In stock

92161C

DAMPER,METER

92161-0173

1

$20.10

In stock

130

BOLT-FLANGED,8X30

130H0830

1
Out of stock

130A

BOLT-FLANGED,6X16

130L0616

1
Out of stock

220

SCREW-PAN-CROS,5X10

220D0510

1
Out of stock

51001

TANK-COMP-FUEL,M.D.PURPLE

51001-0040-664

1
Out of stock

51001A

TANK-COMP-FUEL,M.M.RED

51001-0040-665

1
Out of stock

51001B

TANK-COMP-FUEL,BLUE/EBONY

51001-0040-705

1
Out of stock

51001C

TANK-COMP-FUEL,M.D.PURPLE

51001-0041-664

1

$1,511.60

In stock

51001D

TANK-COMP-FUEL,M.M.RED

51001-0041-665

1

$1,368.44

In stock

51001E

TANK-COMP-FUEL,BLUE/EBONY

51001-0041-705

1

$1,665.00

In stock

92037

CLAMP,TUBE

92037-147

1

$5.84

In stock

92093

SEAL,FUEL TANK CAP

92093-1030

1

$6.18

In stock

92192

TUBE,BLUE

92192-0037

1
Out of stock
