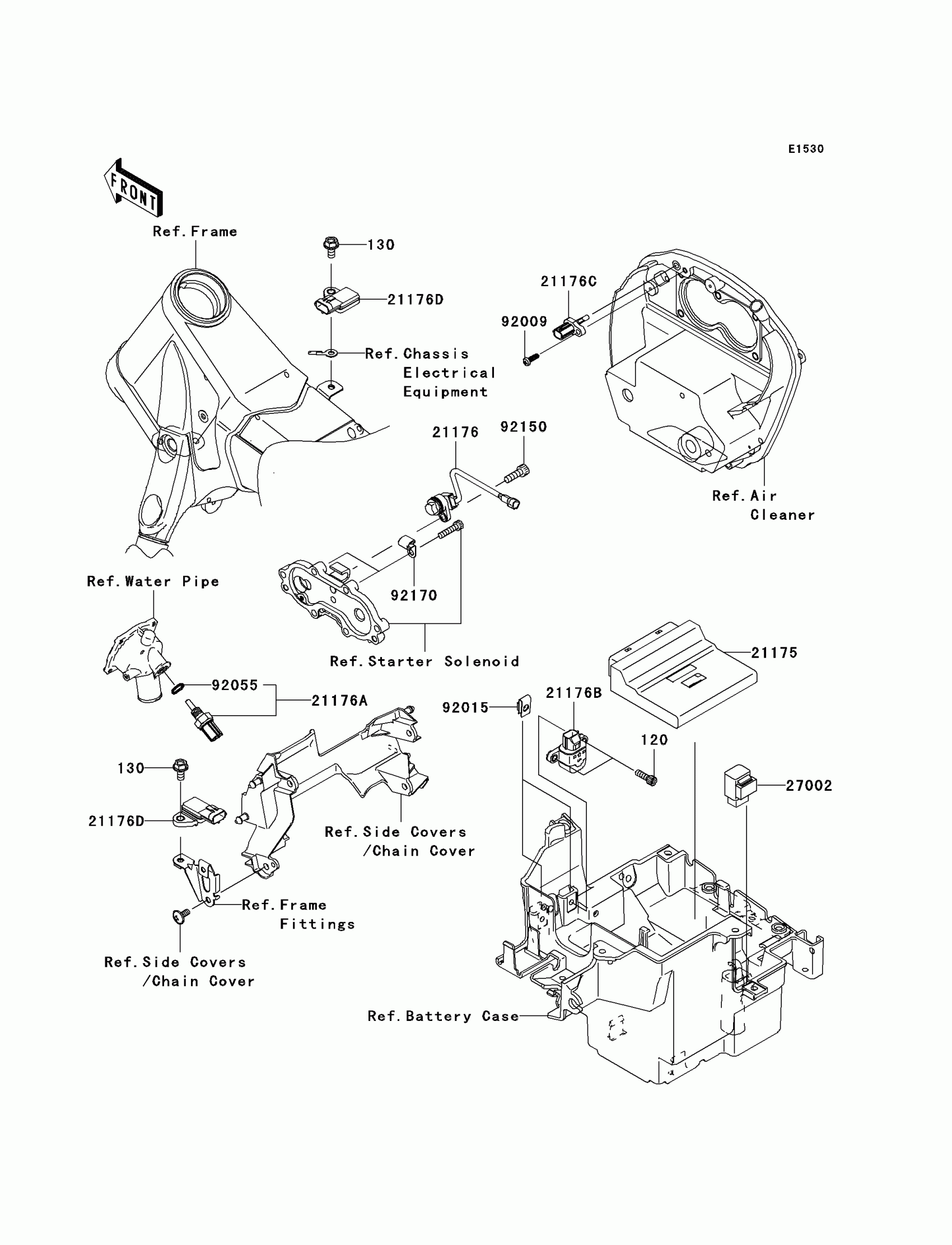

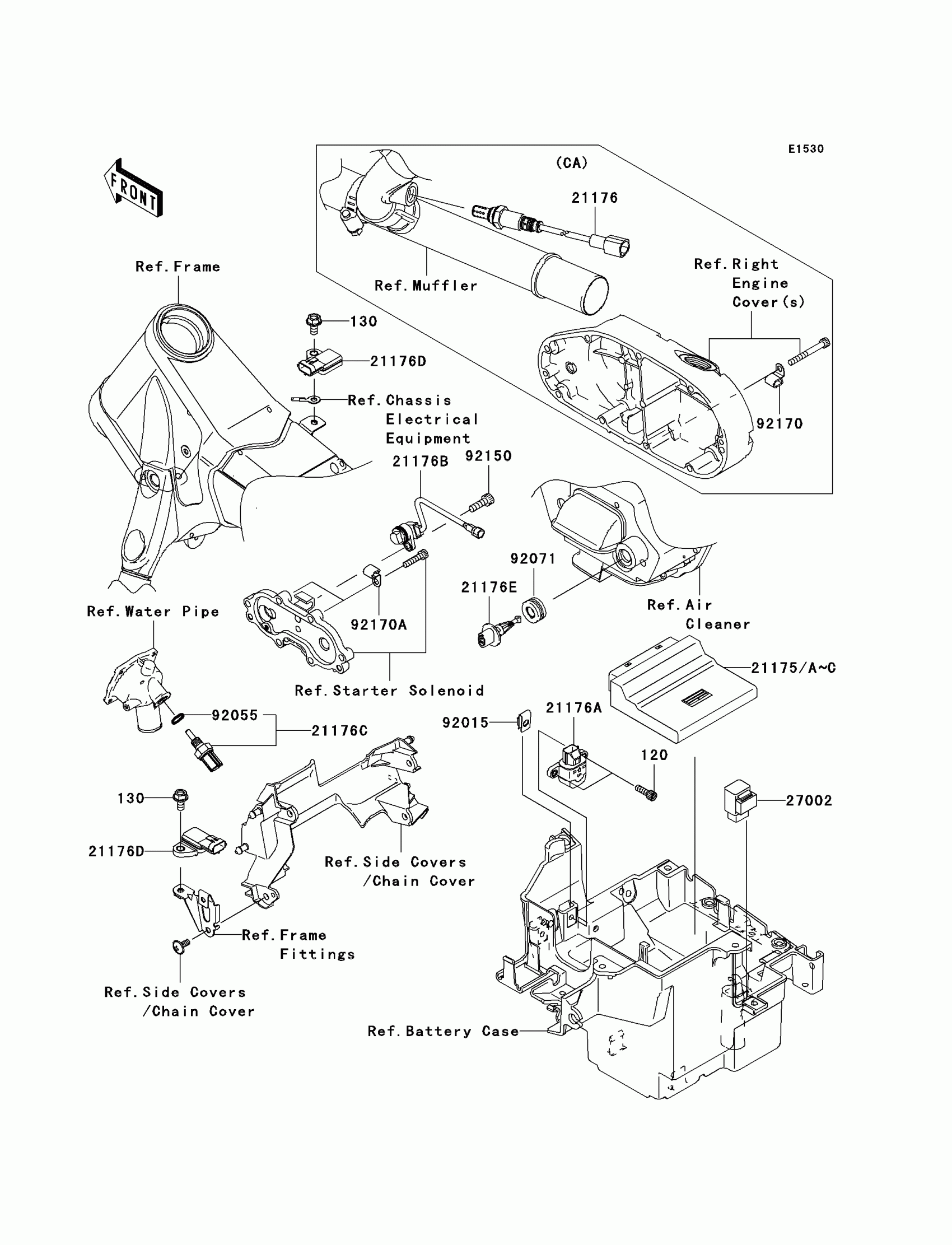

Kawasaki Vulcan 2000 Fuel Injection Diagram

Description

Price

120

BOLT-SOCKET,5X16

120S0516

Unavailable

130

BOLT-FLANGED,6X12

130L0612

Unavailable

21176A

SENSOR

21176-0006

Unavailable

21176B

SENSOR,CAM ANGLE

21176-0007

Unavailable

21176C

SENSOR,WATER TEMP

21176-0009

$61.96

21176D

SENSOR

21176-1118

$126.04

21176E

SENSOR,AIR TEMP

21176-2106

$19.69

27002

RELAY-ASSY

27002-1062

$40.25

92015

NUT,5MM

92015-1710

$4.67

92055

RING-O,9.5X1.9

92055-0016

$6.77

92071

GROMMET

92071-2140

$3.28

92150

BOLT,SOCKET,6X18

92150-3775

$3.57

92170A

CLAMP

92170-1804

$4.02

21175B

CONTROL UNIT-ELECTRONIC

21175-0059

$1,195.98

21175C

CONTROL UNIT-ELECTRONIC

21175-0060

$1,326.25

21176

SENSOR,OXYGEN

21176-0005

$351.80

92170

CLAMP

92170-1577

$2.85
