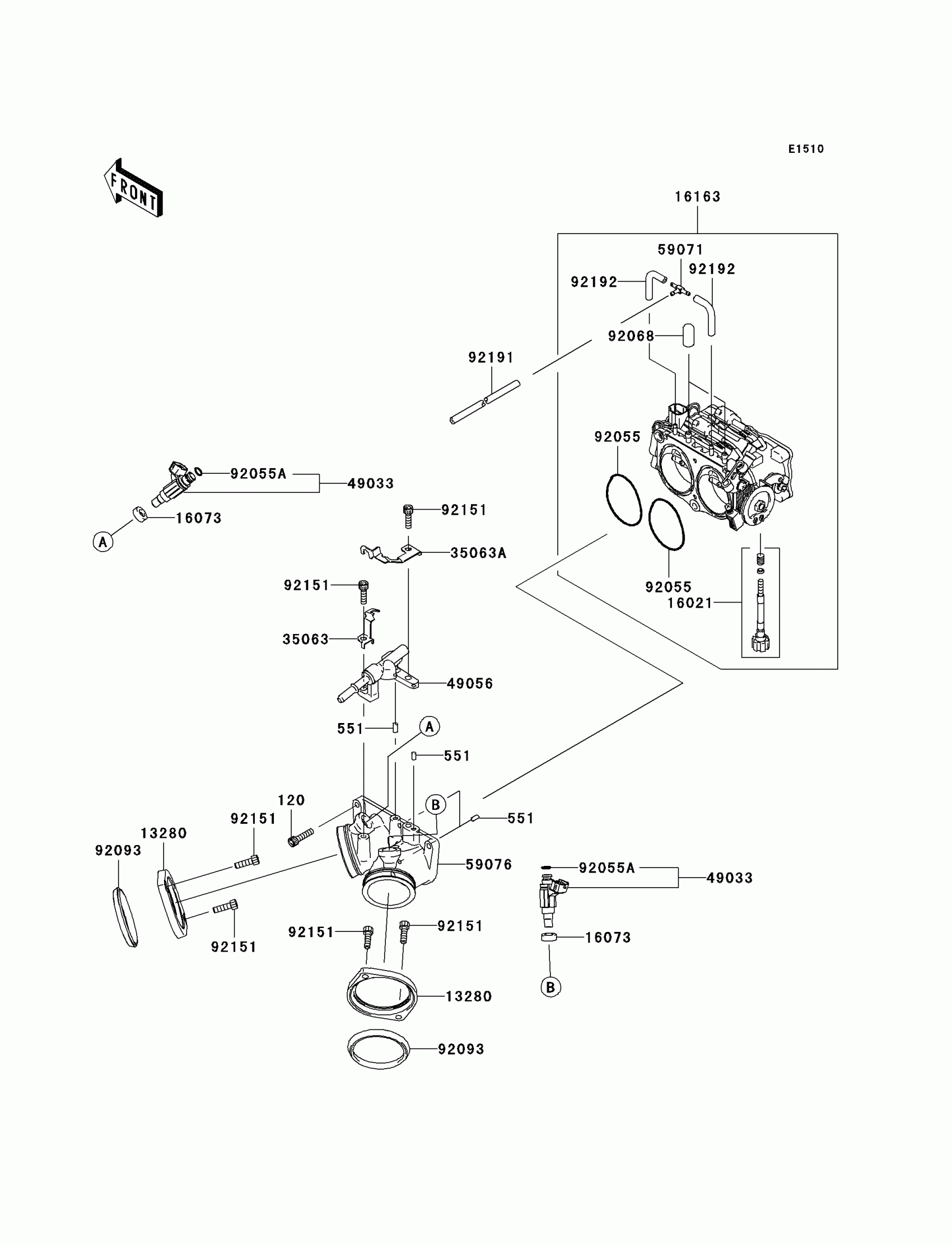

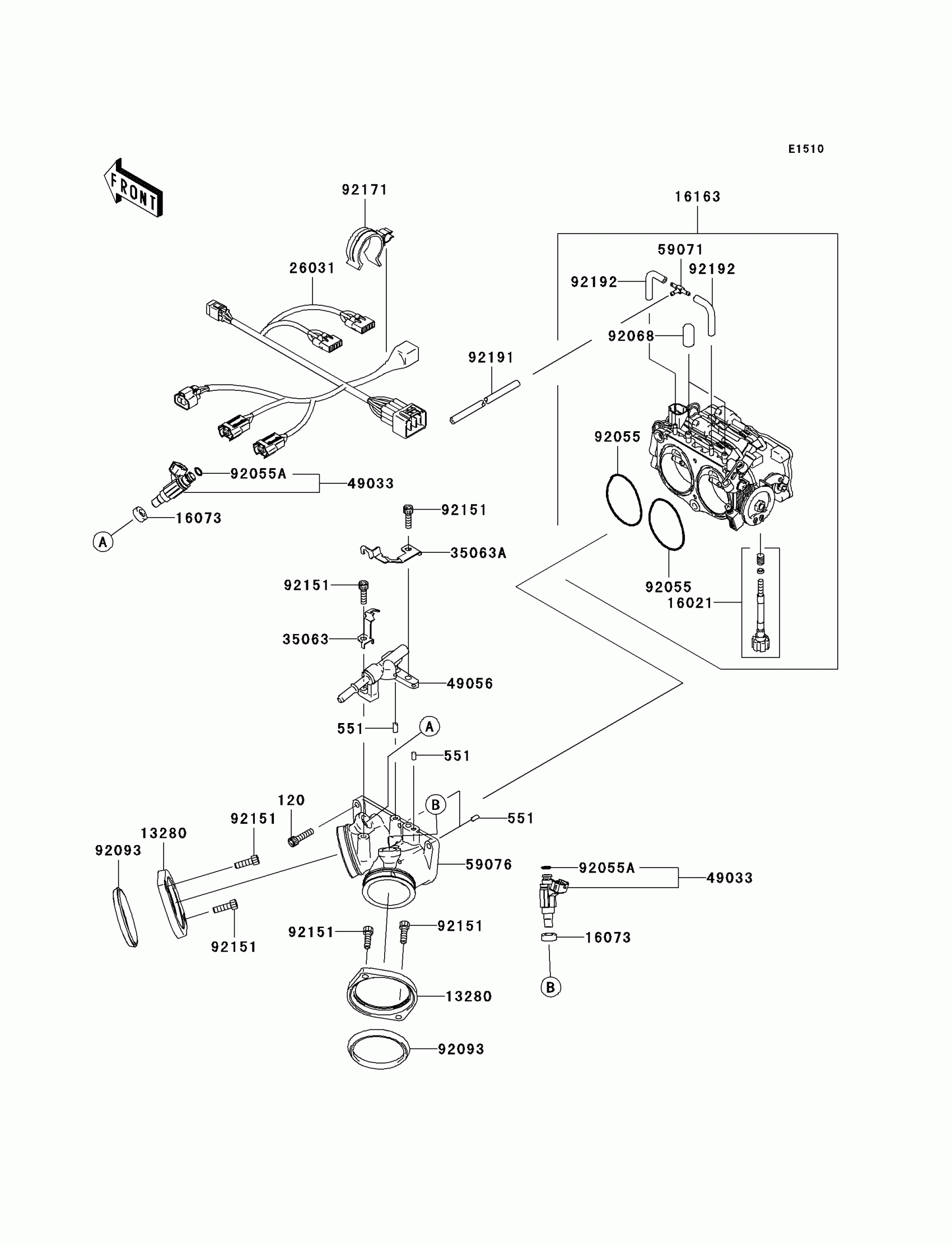

Kawasaki Vulcan 2000 Throttle Diagram

#

Description
Price

120

BOLT-SOCKET,6X25

120W0625

Unavailable

551

PIN-DOWEL

551R0408

$4.09

13280

HOLDER,INTAKE MANIFOLD

13280-0007

$32.93

16021

SCREW-THROTTLE STOP

16021-0006

$130.99

16073

INSULATOR

16073-3707

$4.65

16163

THROTTLE-ASSY

16163-0001

$1,112.13

26031

HARNESS

26031-0179

$172.37

35063

STAY

35063-0075

$7.61

35063A

STAY

35063-0076

$7.61

49033

NOZZLE-INJECTION

49033-0003

$117.60

49056

PIPE-INJECTION

49056-0004

$195.38

59071

JOINT,3WAY,T

59071-3752

$7.76

59076

MANIFOLD-INTAKE

59076-0001

$263.71

92055

RING-O

92055-0056

$9.59

92055A

RING-O,INJECTION NOZZLE

92055-1622

$1.42

92068

PLUG,12X25

92068-006

$3.25

92093

SEAL

92093-0006

$20.93

92151

BOLT,SOCKET,6X20

92151-3774

$1.35

92171

CLAMP

92171-0130

$5.63

92191

TUBE,3X7X300

92191-0032

$11.22

92192

TUBE,3X7X55

92192-0106

$7.88
