2000 Kawasaki Vulcan Front Master Cylinder Diagram

← All diagrams

Find the part on the Front Master Cylinder diagram for your 2000 Kawasaki Vulcan, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

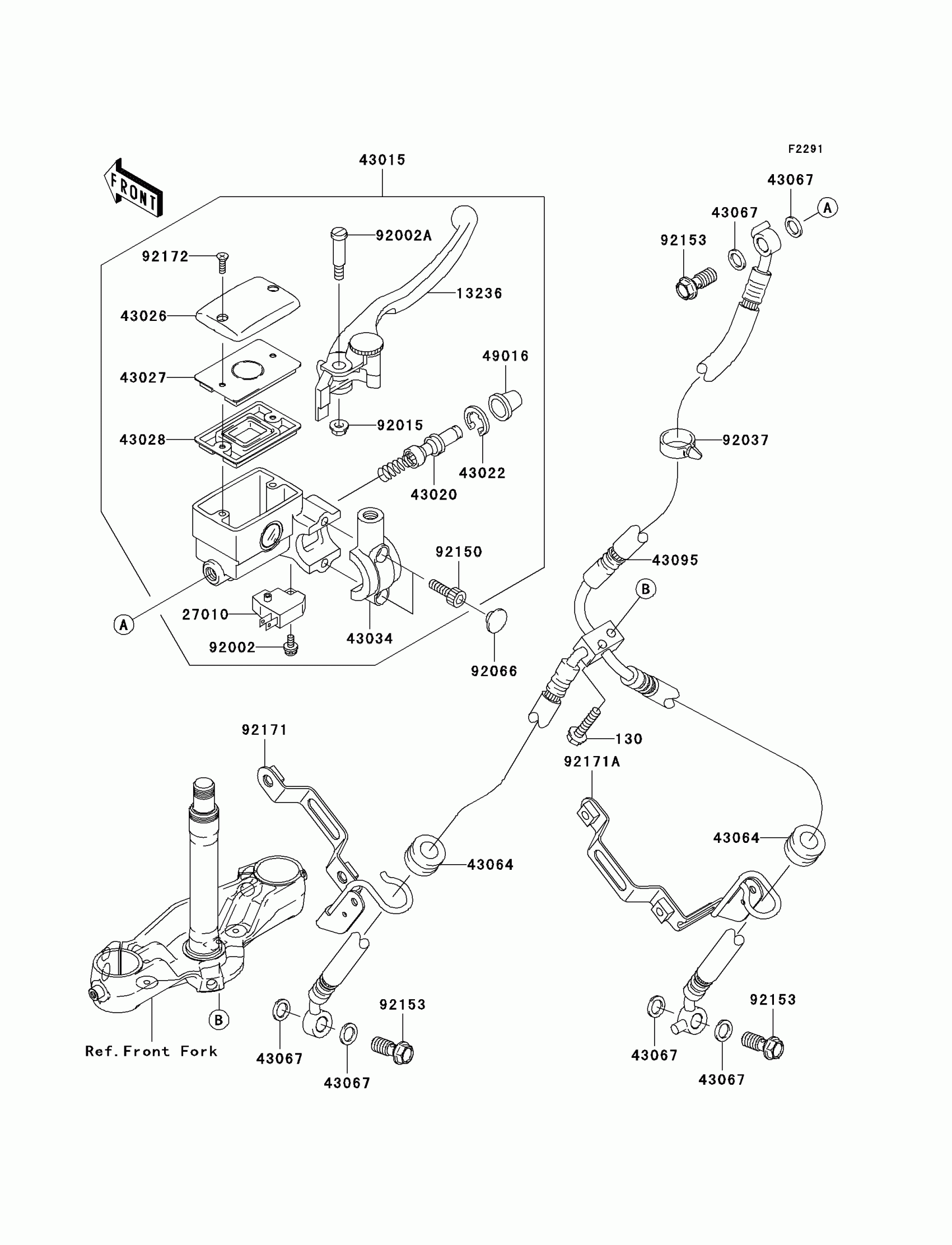

2000 Kawasaki Vulcan Front Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X25

130L0625

1
Out of stock

13236

LEVER-COMP,FRONT BRAKE

13236-1315

1
Out of stock

27010

SWITCH,BRAKE

27010-1170

1

$33.39

In stock

43015

1

$452.78

In stock

43020

1

$59.90

In stock

43022

1

$3.69

In stock

43026

CAP-BRAKE

43026-0003

1
Out of stock

43027

PLATE-DIAPHRAGM

43027-1059

1

$6.02

In stock

43028

1

$21.24

In stock

43034

HOLDER-BRAKE

43034-1172

1

$39.09

In stock

43064

GROMMET,HOSE CLAMP

43064-006

1

$3.43

In stock

43067

WASHER,10.5X15X1.5

43067-001

1

$1.81

In stock

43095

HOSE-BRAKE,FR

43095-0059

1

$172.50

In stock

49016

1

$6.90

In stock

92002

BOLT,SCREW,4X12

92002-1323

1

$3.12

In stock

92002A

BOLT,LEVER SET

92002-1561

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1528

1

$4.37

In stock

92037

CLAMP,HOSE

92037-1827

1

$5.93

In stock

92066

PLUG

92066-1301

1

$4.83

In stock

92150

BOLT,SOCKET,6MM

92150-1025

1

$7.56

In stock

92153

BOLT,OIL,L=23

92153-0627

1
Out of stock

92171

1

$23.22

In stock

92171A

1

$20.86

In stock

92172

SCREW

92172-0083

1

$3.48

In stock
