2000 Kawasaki Vulcan Frame Fittings Diagram

← All diagrams

Find the part on the Frame Fittings diagram for your 2000 Kawasaki Vulcan, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

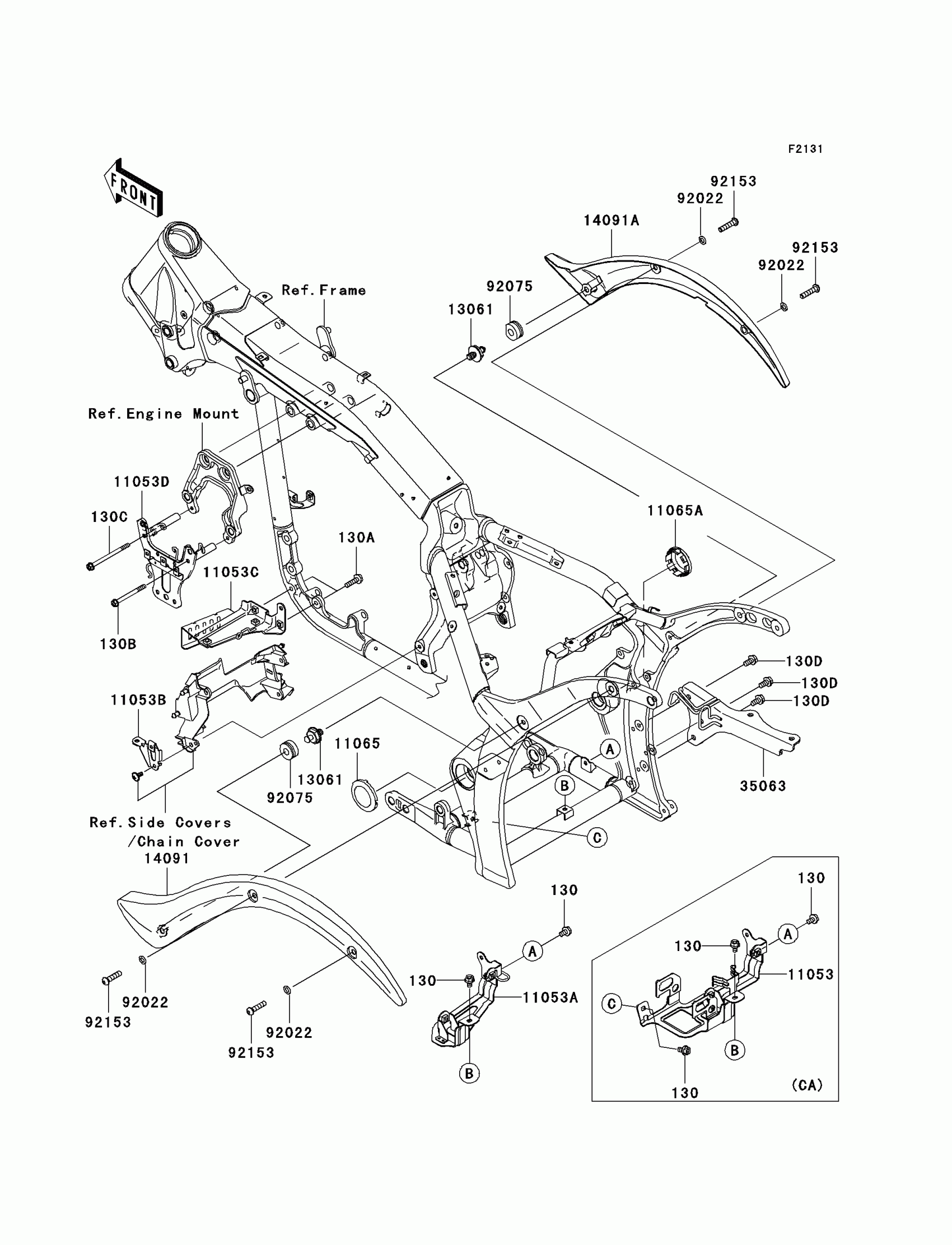

2000 Kawasaki Vulcan Frame Fittings Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130A

BOLT-FLANGED,6X22

130L0622

1
Out of stock

130B

BOLT-FLANGED,6X70

130L0670

1
Out of stock

130C

BOLT-FLANGED,6X90

130L0690

1
Out of stock

130D

BOLT-FLANGED,8X16

130L0816

1
Out of stock

11053B

BRACKET,FUSE&SENSOR

11053-0494

1

$12.49

In stock

11053C

BRACKET,REGULATOR

11053-0519

1

$19.22

In stock

11053D

BRACKET,IGNITION COIL

11053-0619

1
Out of stock

11065

CAP,PIVOT,LH

11065-0052

1

$21.66

In stock

11065A

CAP,PIVOT,RH

11065-0053

1

$21.66

In stock

13061

BOSS

13061-0060

1
Out of stock

14091

COVER,FENDER,LH

14091-0253

1

$220.31

In stock

14091A

COVER,FENDER,RH

14091-0255

1

$223.66

In stock

35063

STAY,MUFFLER

35063-0048

1
Out of stock

92022

WASHER,PLAIN,8MM

92022-3043

1
Out of stock

92075

DAMPER

92075-1986

1

$4.19

In stock

92153

BOLT,SOCKET,8X35

92153-0419

1
Out of stock

130

BOLT-FLANGED,6X10

130L0610

1
Out of stock

130

BOLT-FLANGED,6X10

130L0610

1
Out of stock

11053

BRACKET,RESERVOIR

11053-0312

1

$77.67

In stock

11053A

BRACKET,RESERVOIR

11053-0350

1

$58.08

In stock
