2000 Kawasaki Vulcan Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 2000 Kawasaki Vulcan, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

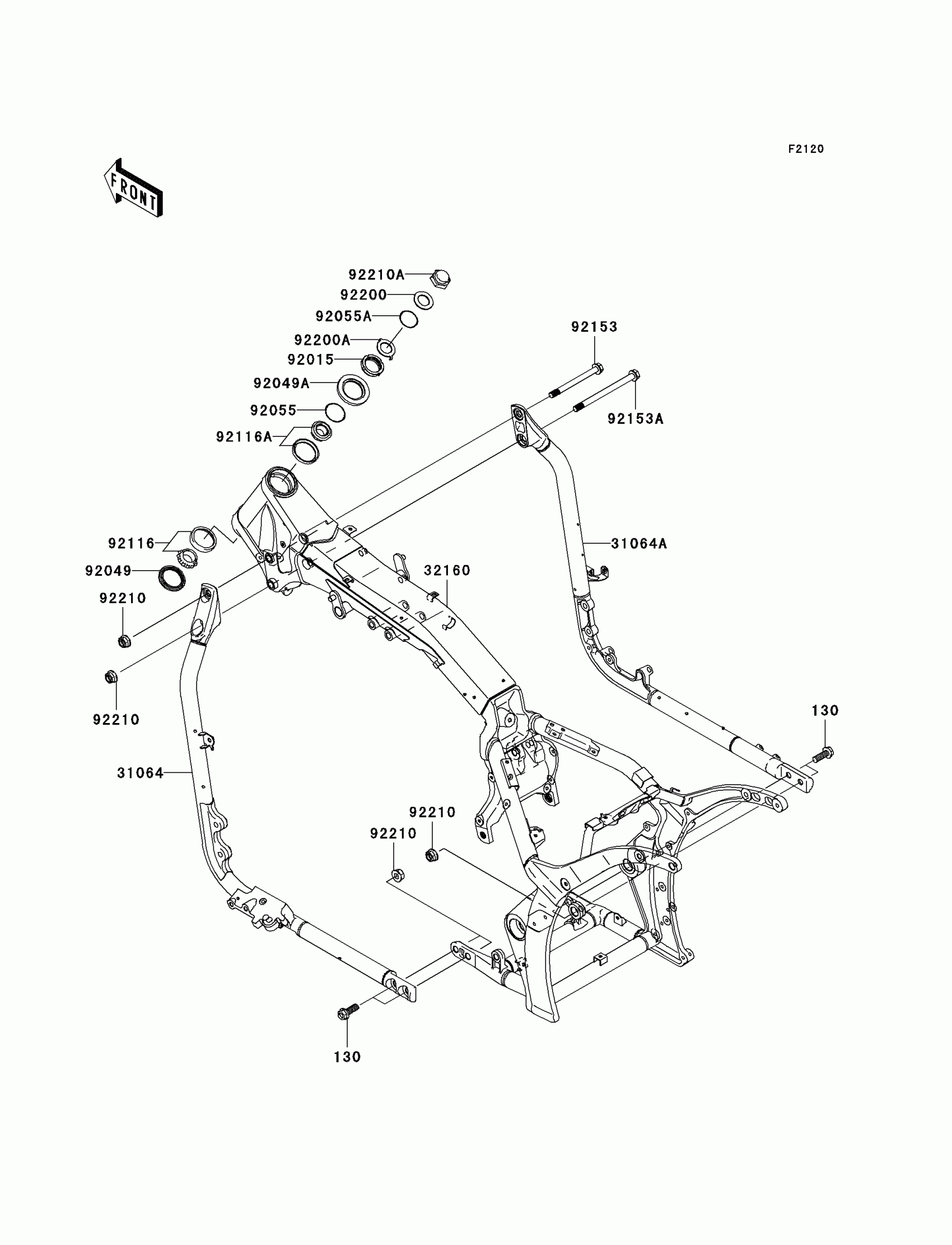

2000 Kawasaki Vulcan Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,12X35

130W1235

1
Out of stock

31064

PIPE-COMP,DOWNTUBE,LH

31064-0003

1
Out of stock

31064A

1

$637.94

In stock

32160

FRAME-COMP

32160-0012

1

$3,268.63

In stock

92015

1

$44.93

In stock

92049

SEAL-OIL,XMHE 43 55 4J

92049-1383

1
Out of stock

92049A

SEAL-OIL,MX043N2

92049-1483

1
Out of stock

92055

RING-O,34.5X2.0

92055-1452

1

$4.16

In stock

92055A

RING-O,ID=24.5

92055-1459

1

$3.75

In stock

92116

1

$73.29

In stock

92116A

1

$73.29

In stock

92153

BOLT,FLANGED,12X132

92153-0598

1
Out of stock

92153A

BOLT,FLANGED,12X168

92153-0599

1
Out of stock

92200

WASHER,25.5X42X2.3

92200-0105

1
Out of stock

92200A

WASHER,CLAW,25.5X40X2.3

92200-0137

1
Out of stock

92210

NUT,LOCK,FLANGED,12MM

92210-0110

1
Out of stock

92210A

NUT,CAP,25MM

92210-1166

1
Out of stock
← Footrests Frame Fittings →
