2000 Kawasaki Vulcan Fenders Diagram

← All diagrams

Find the part on the Fenders diagram for your 2000 Kawasaki Vulcan, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

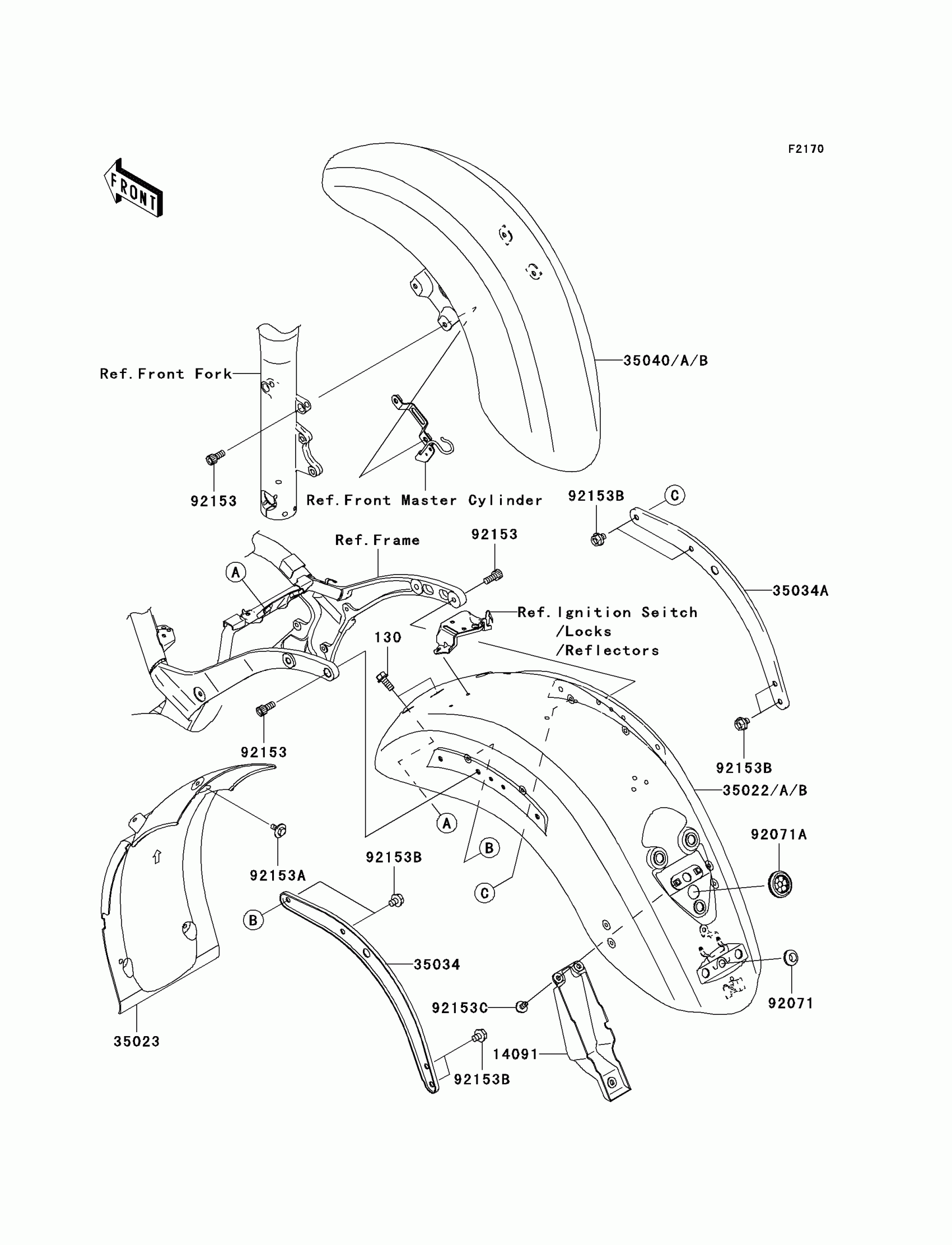

2000 Kawasaki Vulcan Fenders Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,8X16

130L0816

1
Out of stock

14091

COVER,REAR FENDER

14091-0070

1

$18.02

In stock

35022

FENDER-COMP-REAR,M.D.PURPLE

35022-0021-664

1
Out of stock

35022A

FENDER-COMP-REAR,M.M.RED

35022-0021-665

1

$1,219.50

In stock

35022B

FENDER-COMP-REAR,P.G.BLUE

35022-0021-666

1

$1,219.50

In stock

35023

FENDER-REAR,INNER

35023-0033

1

$67.68

In stock

35034

REINFORCE,RR FENDER,LH

35034-0047

1
Out of stock

35034A

1

$77.67

In stock

35040

1

$763.28

In stock

35040A

FENDER-COMP-FRONT,M.M.RED

35040-0005-665

1

$763.28

In stock

35040B

FENDER-COMP-FRONT,P.G.BLUE

35040-0005-666

1
Out of stock

92071

GROMMET,10MM

92071-019

1

$3.10

In stock

92071A

GROMMET

92071-1265

1

$4.12

In stock

92153

BOLT,SOCKET,8X18

92153-0672

1
Out of stock

92153A

BOLT,6X16

92153-0698

1
Out of stock

92153B

BOLT,FLANGED,8X10

92153-0724

1
Out of stock

92153C

BOLT,SOCKET,6X14

92153-0729

1
Out of stock
