2000 Kawasaki Vulcan Right Engine Cover Diagram

← All diagrams

Find the part on the Right Engine Cover diagram for your 2000 Kawasaki Vulcan, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

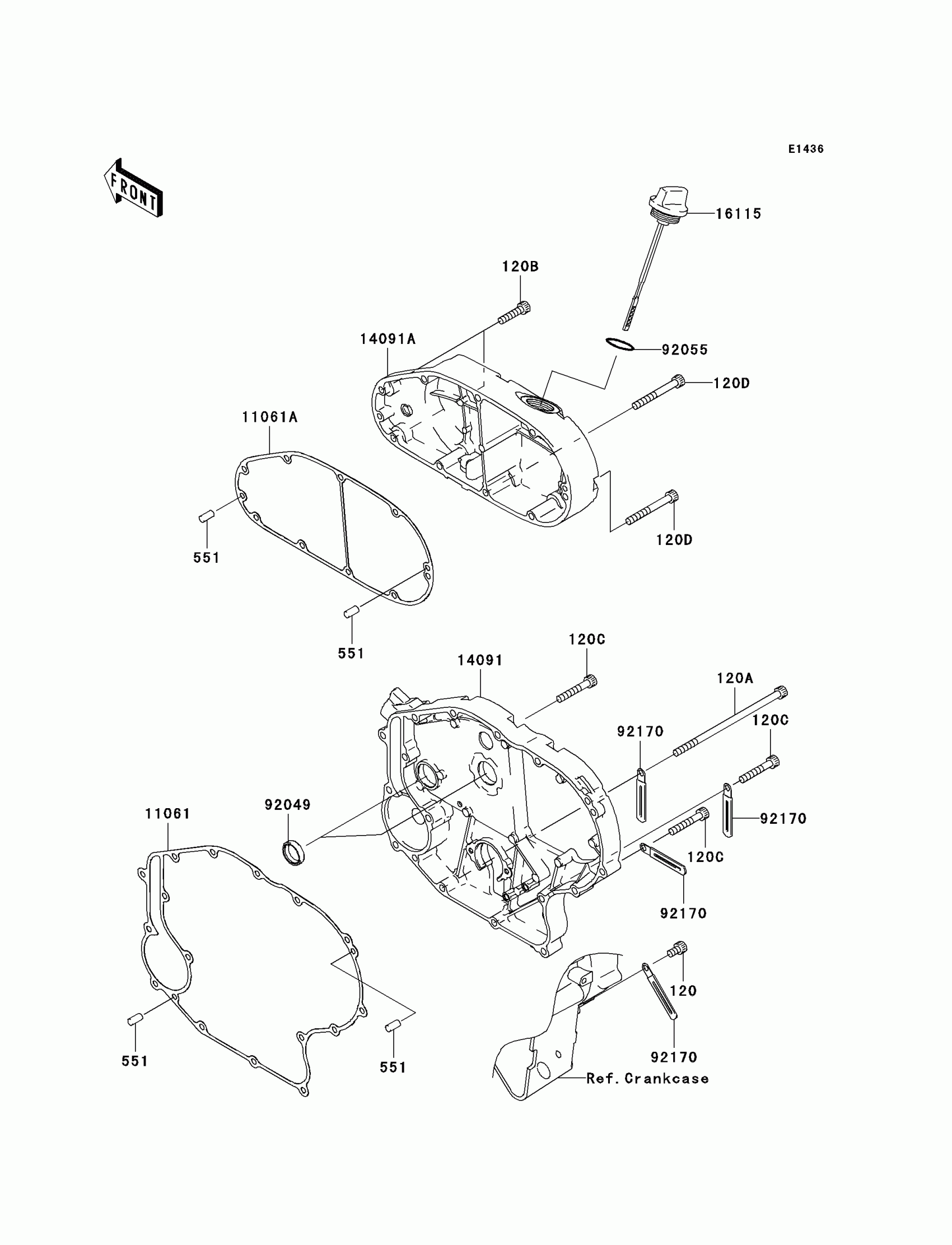

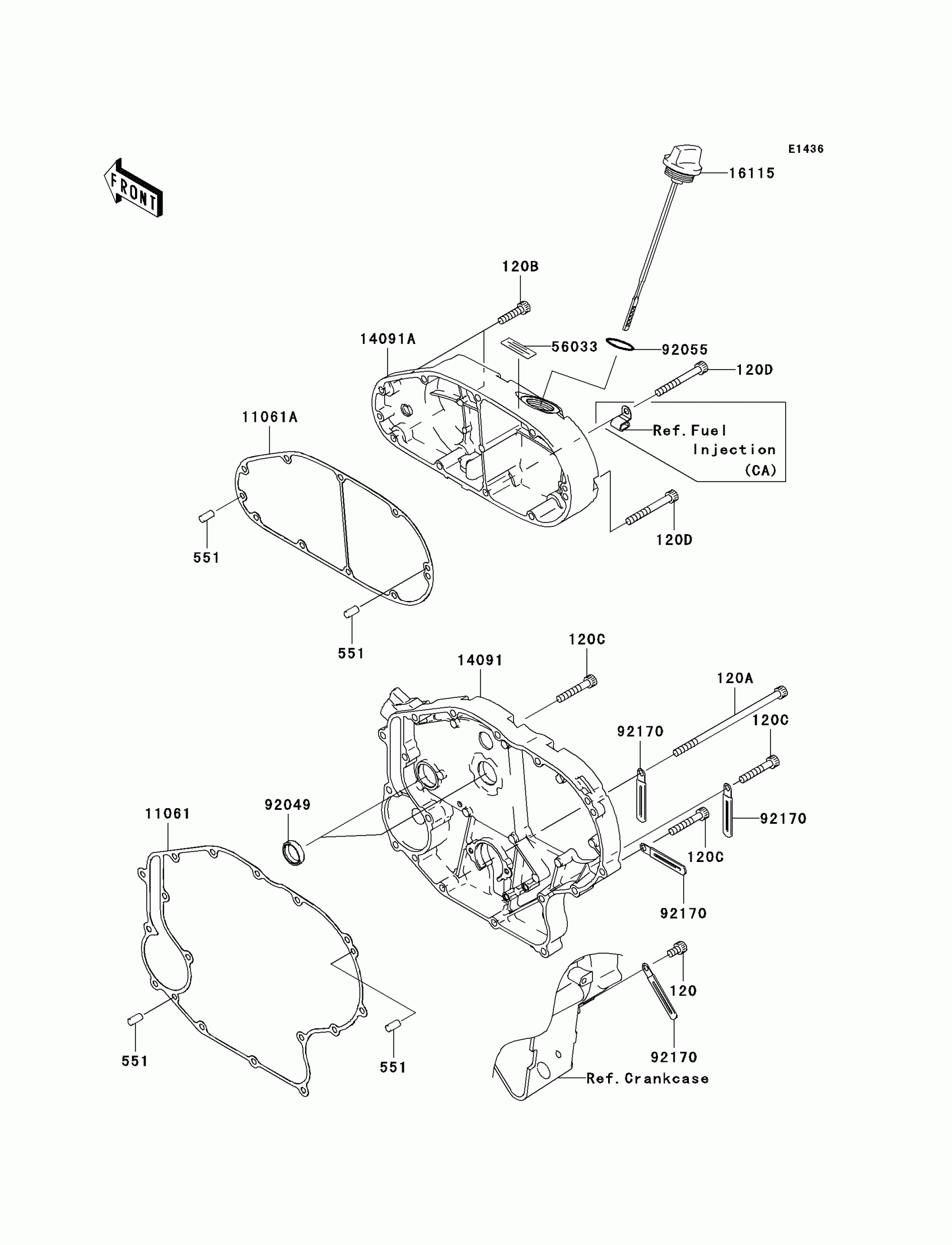

2000 Kawasaki Vulcan Right Engine Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,6X10

120R0610

1
Out of stock

120A

BOLT-SOCKET,6X125

120R06125

1
Out of stock

120B

BOLT-SOCKET,6X25

120R0625

1
Out of stock

120C

BOLT-SOCKET,6X35

120R0635

1
Out of stock

120D

BOLT-SOCKET,6X50

120R0650

1
Out of stock

551

PIN-DOWEL,6X12

551A0612

1
Out of stock

11061

GASKET,TRANSMISSION,INSIDE

11061-0017

1
Out of stock

11061A

GASKET,TRANSMISSION,OUTSIDE

11061-0018

1
Out of stock

14091

COVER,TRANSMISSION,INSIDE

14091-0251

1
Out of stock

14091A

COVER,TRANSMISSION OUTSIDE

14091-0263

1
Out of stock

16115

CAP-OIL FILLER

16115-0010

1
Out of stock

56033

LABEL-MANUAL,OIL CAPACITY

56033-0050

1
Out of stock

92049

SEAL-OIL,20X26X6

92049-0019

1
Out of stock

92055

RING-O,31.5X2.6

92055-049

1
Out of stock

92170

CLAMP

92170-1514

1

$3.43

In stock
