2000 Kawasaki Vulcan® Left Engine Cover Diagram

← All diagrams

Find the part on the Left Engine Cover diagram for your 2000 Kawasaki Vulcan®, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

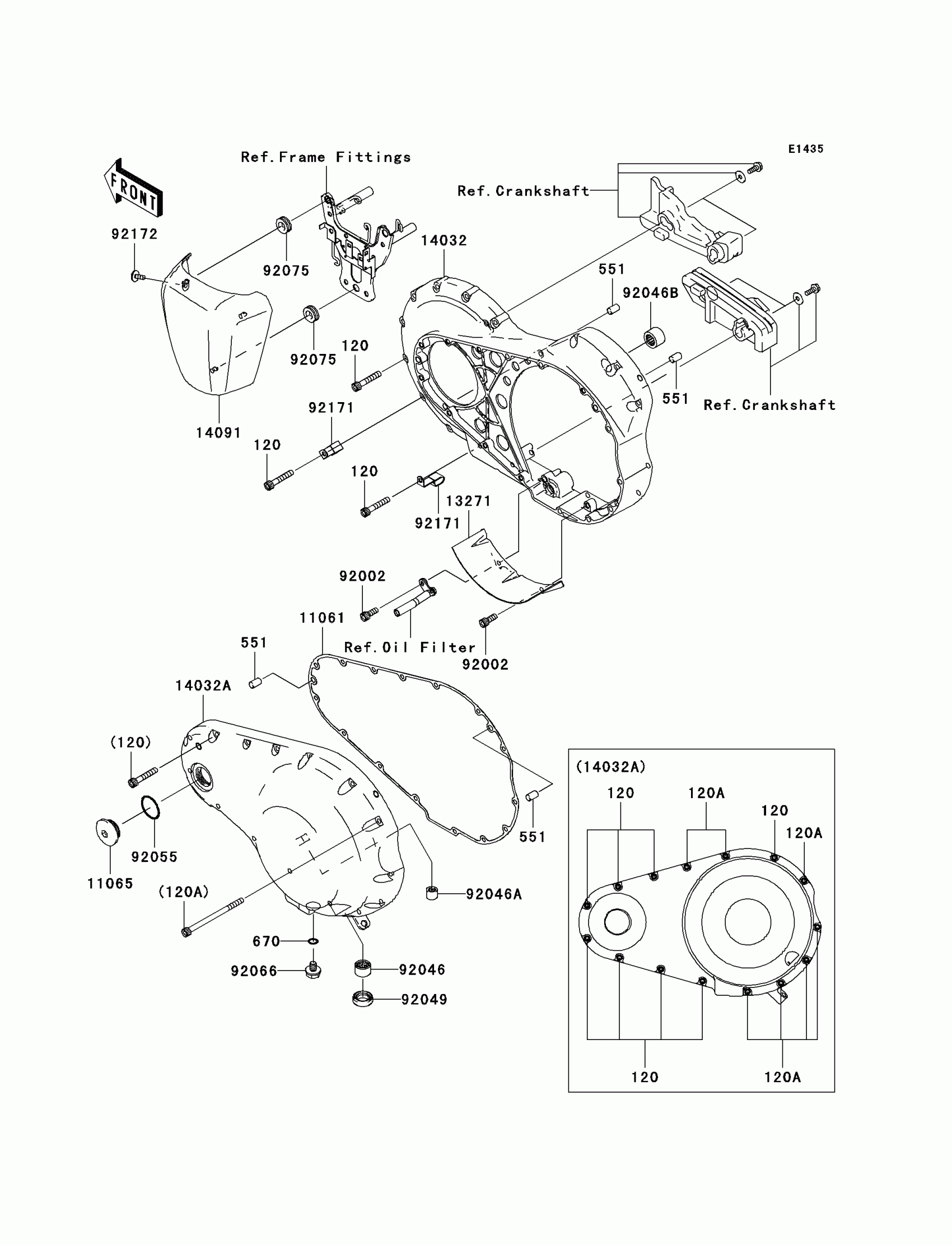

2000 Kawasaki Vulcan® Left Engine Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,6X35

120R0635

1
Out of stock

120A

BOLT-SOCKET,6X90

120R0690

1
Out of stock

551

PIN-DOWEL,8X14

551A0814

1
Out of stock

670

O RING,8MM

670D1508

1
Out of stock

11061

GASKET,CLUTCH,OUTSIDE

11061-0016

1
Out of stock

11065

CAP

11065-0025

1
Out of stock

13271

PLATE

13271-0083

1

$13.05

In stock

14032

COVER-CLUTCH,INNER

14032-0009

1

$318.73

In stock

14032A

COVER-CLUTCH,OUTER

14032-0073

1

$857.28

In stock

14091

COVER

14091-0289

1
Out of stock

92002

BOLT,SOCKET,6X16

92002-1778

1
Out of stock

92046

BEARING-NEEDLE,HK1210

92046-1010

1
Out of stock

92046A

BEARING-NEEDLE,HK0709

92046-1142

1
Out of stock

92046B

BEARING-NEEDLE,HK1212

92046-1163

1
Out of stock

92049

SEAL-OIL,CLUTCH RELEASE

92049-1475

1
Out of stock

92055

RING-O,31.5X2.6

92055-049

1
Out of stock

92066

PLUG,DRAIN,8X10

92066-1026

1
Out of stock

92075

DAMPER

92075-1629

1
Out of stock

92171

CLAMP,SENSOR CODE

92171-0153

1

$8.66

In stock

92172

SCREW,5X12

92172-0101

1
Out of stock
