2000 Kawasaki Vulcan® Footrests Diagram

← All diagrams

Find the part on the Footrests diagram for your 2000 Kawasaki Vulcan®, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

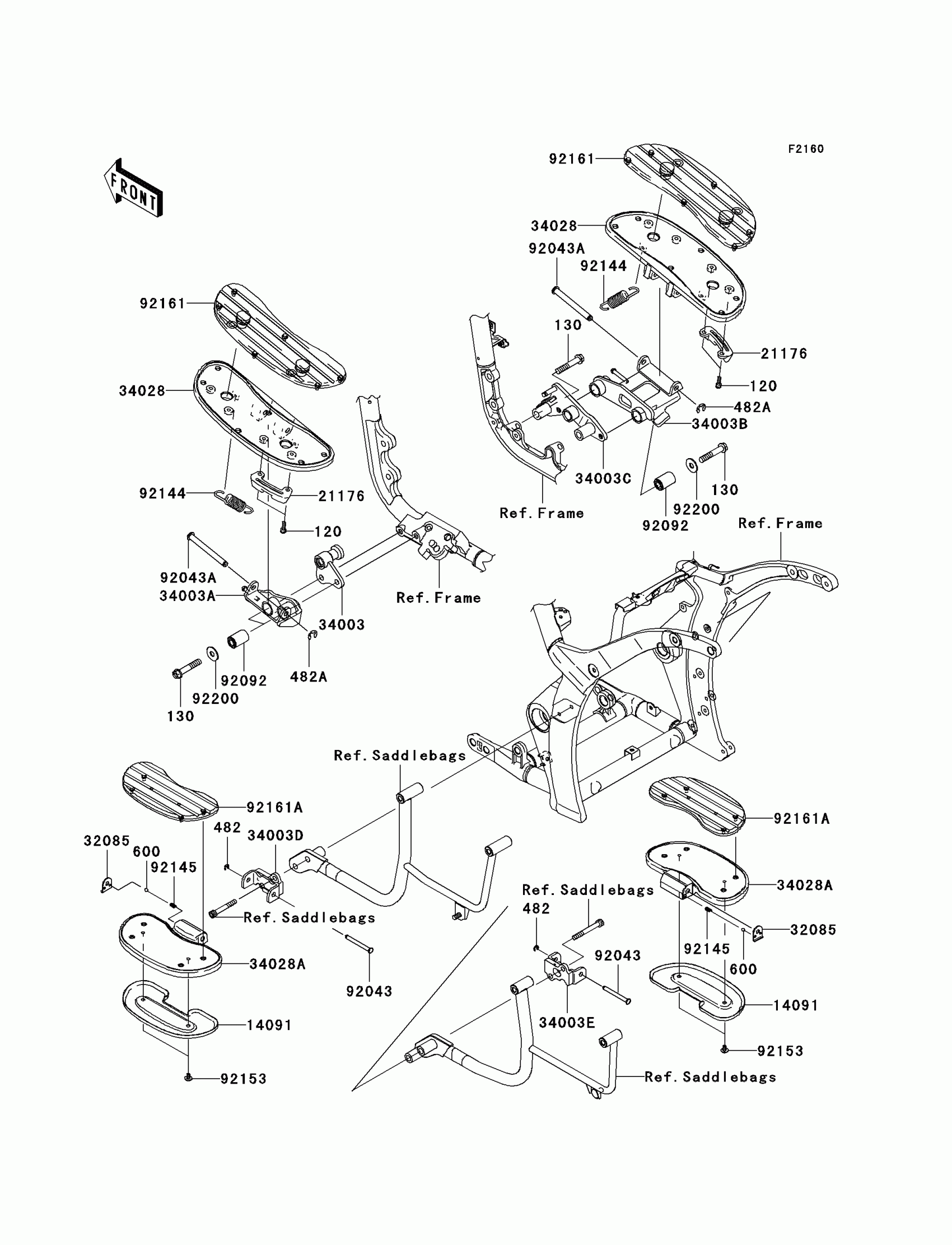

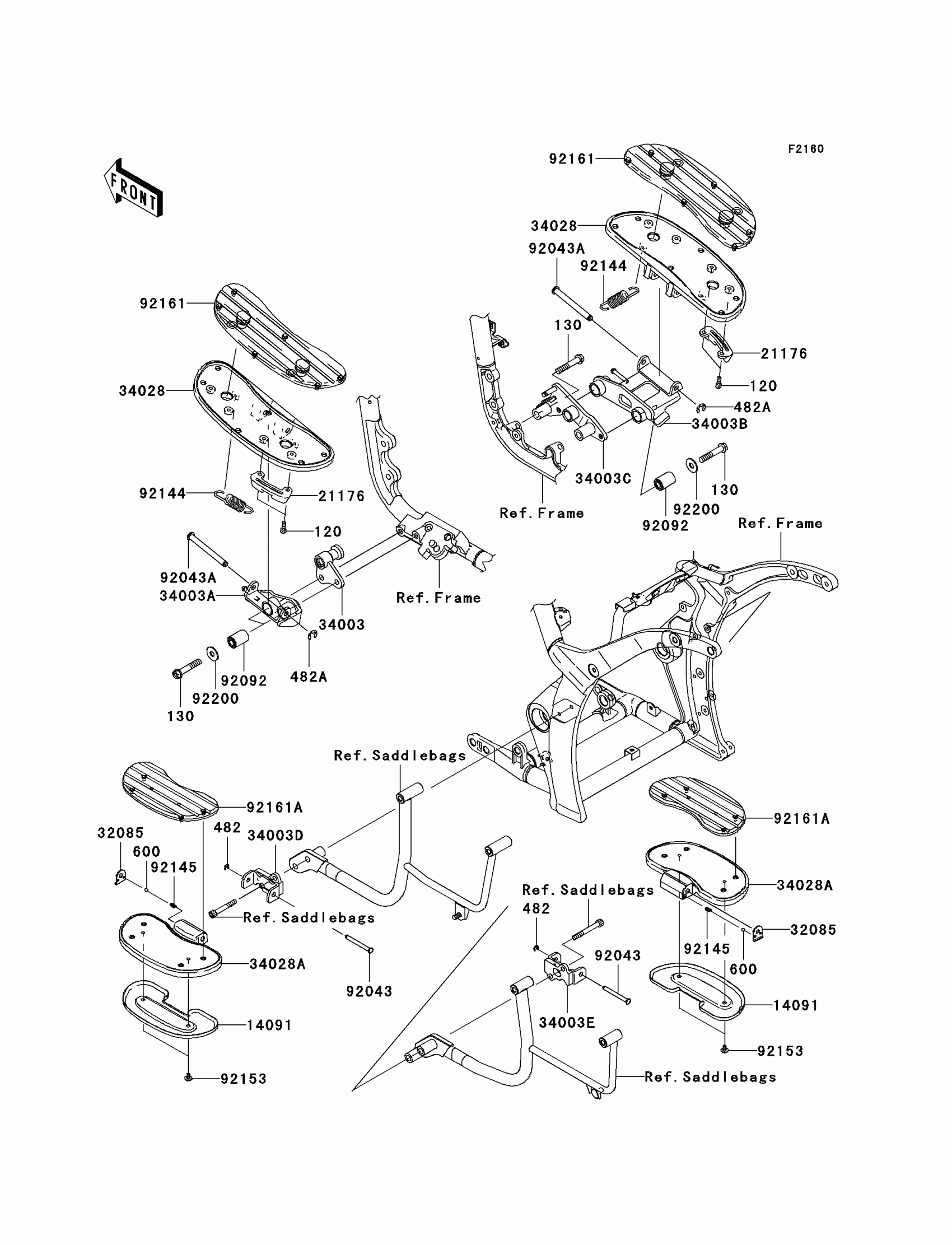

2000 Kawasaki Vulcan® Footrests Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,6X16

120CB0616

1
Out of stock

130

BOLT-FLANGED,10X55

130BB1055

1

$5.28

In stock

482

CIRCLIP-TYPE-E

482EA7000

1
Out of stock

482A

CIRCLIP-TYPE-E,8MM

482EA8000

1
Out of stock

600

BALL-STEEL,1/4

600A0800

1
Out of stock

14091

COVER,REAR STEP

14091-0229

1
Out of stock

21176

SENSOR,BANK

21176-0021

1
Out of stock

32085

STOPPER,REAR STEP

32085-0045

1
Out of stock

34003

HOLDER-STEP,FR,LH,F.S.BLACK

34003-0066-18R

1
Out of stock

34003A

HOLDER-STEP,FR,LH,F.S.BLACK

34003-0067-18R

1
Out of stock

34003B

HOLDER-STEP,FR,RH,F.S.BLACK

34003-0068-18R

1
Out of stock

34003C

HOLDER-STEP,FR,RH,F.S.BLACK

34003-0069-18R

1
Out of stock

34003D

HOLDER-STEP,RR,LH,F.S.BLACK

34003-0070-18R

1
Out of stock

34003E

HOLDER-STEP,RR,RH,F.S.BLACK

34003-0071-18R

1
Out of stock

34028

STEP,FR

34028-0011

1

$104.80

In stock

34028A

STEP,RR

34028-0051

1

$73.61

In stock

92043

PIN,8X76.5

92043-0054

1
Out of stock

92043A

PIN,10X98.5

92043-1707

1
Out of stock

92092

BUSHING-RUBBER

92092-0005

1
Out of stock

92144

SPRING

92144-1266

1
Out of stock

92145

SPRING

92145-1319

1
Out of stock

92153

BOLT,SOCKET,6X10

92153-1096

1
Out of stock

92161

DAMPER,FOOT BOARD

92161-0126

1
Out of stock

92161A

DAMPER,REAR STEP

92161-0145

1
Out of stock

92200

WASHER,10.3X28X2.3

92200-0113

1
Out of stock
