2000 Kawasaki Vulcan Saddlebags Diagram

← All diagrams

Find the part on the Saddlebags diagram for your 2000 Kawasaki Vulcan, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

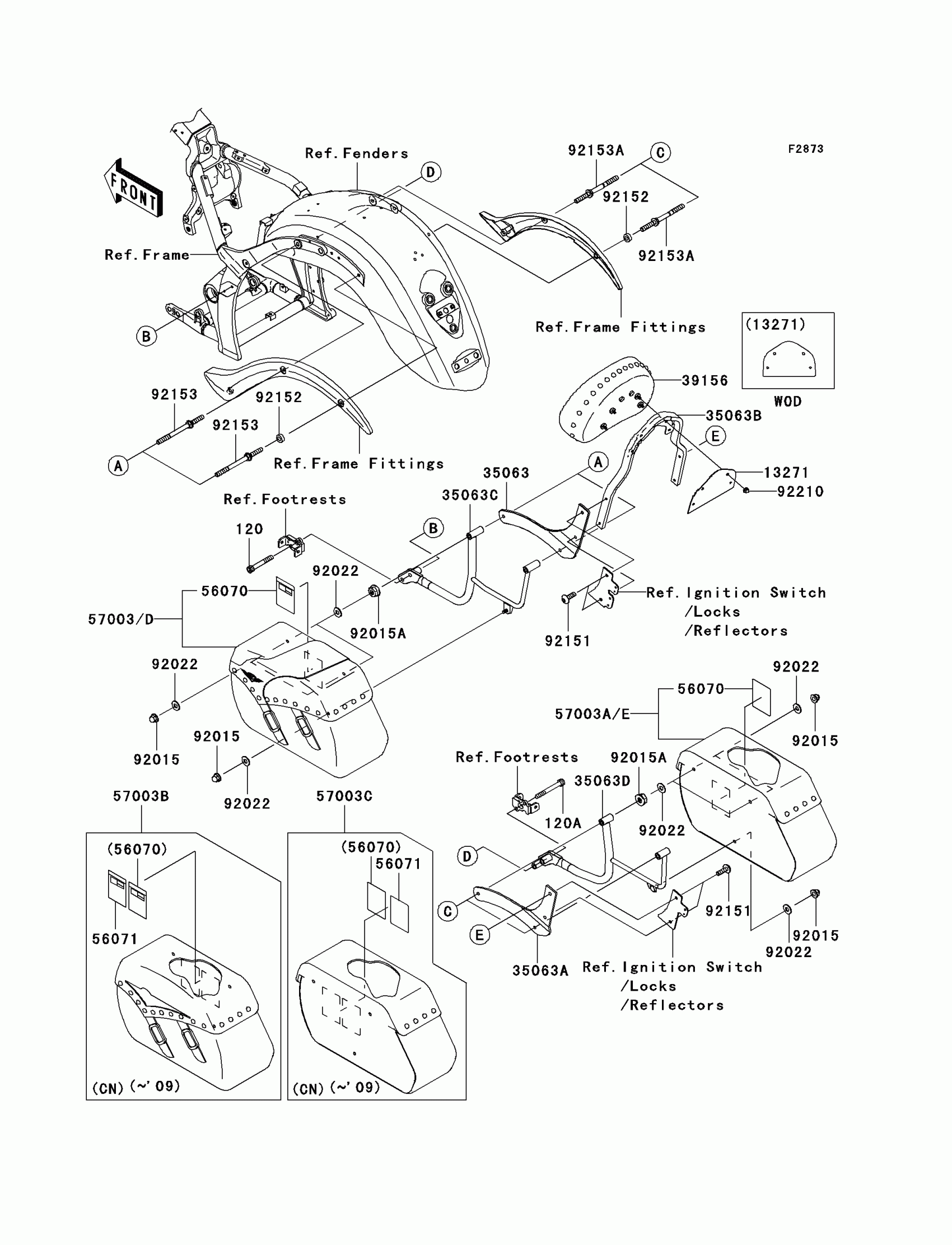

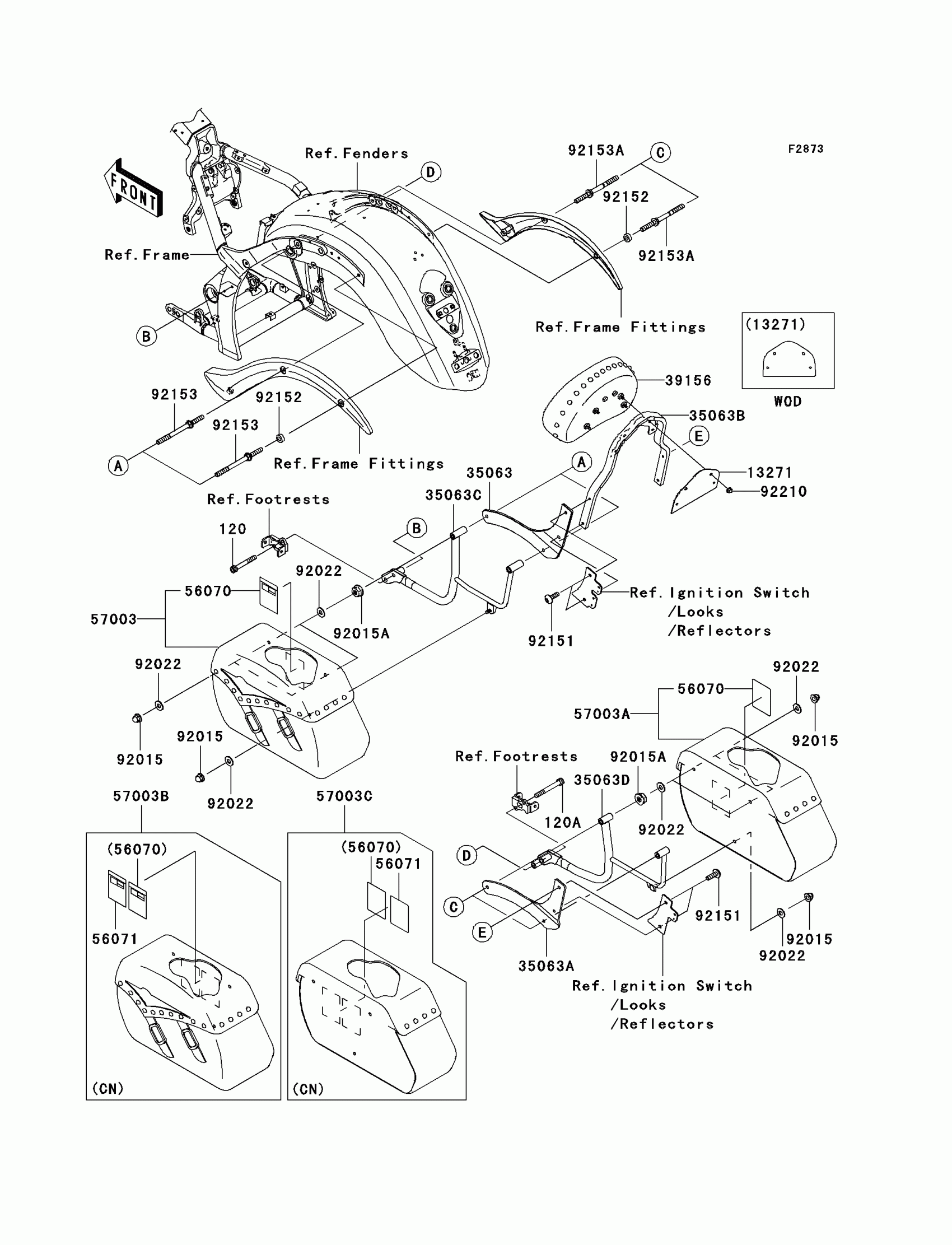

2000 Kawasaki Vulcan Saddlebags Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,8X55

120W0855

1
Out of stock

120A

BOLT-SOCKET,8X65

120W0865

1
Out of stock

13271

PLATE,BACKREST

13271-0719

1
Out of stock

35063

STAY,BACKREST,LH

35063-0271

1

$112.43

In stock

35063A

STAY,BACKREST,RH

35063-0272

1

$112.43

In stock

35063B

STAY,BACKREST,CNT

35063-0273

1

$225.61

In stock

35063C

STAY,SIDE BAG,LH

35063-0308

1

$110.92

In stock

35063D

STAY,SIDE BAG,RH

35063-0309

1

$110.92

In stock

39156

PAD,BACKREST,BLACK

39156-0119-MA

1

$133.09

In stock

56070

1

$8.32

In stock

92015

NUT,CAP,LOCK,8MM,BLACK

92015-1209

1
Out of stock

92015A

NUT,FLANGED,8MM

92015-1409

1
Out of stock

92022

1

$3.43

In stock

92151

BOLT,SOCKET,8X25

92151-1753

1

$6.06

In stock

92152

COLLAR,8.5X16X5.8

92152-0417

1

$5.95

In stock

92153

BOLT,8MM

92153-1510

1
Out of stock

92153A

BOLT,8MM

92153-1511

1
Out of stock

92210

NUT,CAP,6MM

92210-1252

1
Out of stock

56071

1

$8.32

In stock

57003

BAG-ASSY,LH

57003-0009

1

$587.41

In stock

57003A

BAG-ASSY,RH

57003-0010

1

$587.41

In stock

57003B

BAG-ASSY,LH

57003-0015

1

$585.80

In stock

57003C

BAG-ASSY,RH

57003-0016

1

$585.80

In stock
