2013 Kawasaki Vulcan® 1700 Voyager® Meter Diagram

← All diagrams

Find the part on the Meter diagram for your 2013 Kawasaki Vulcan® 1700 Voyager®, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

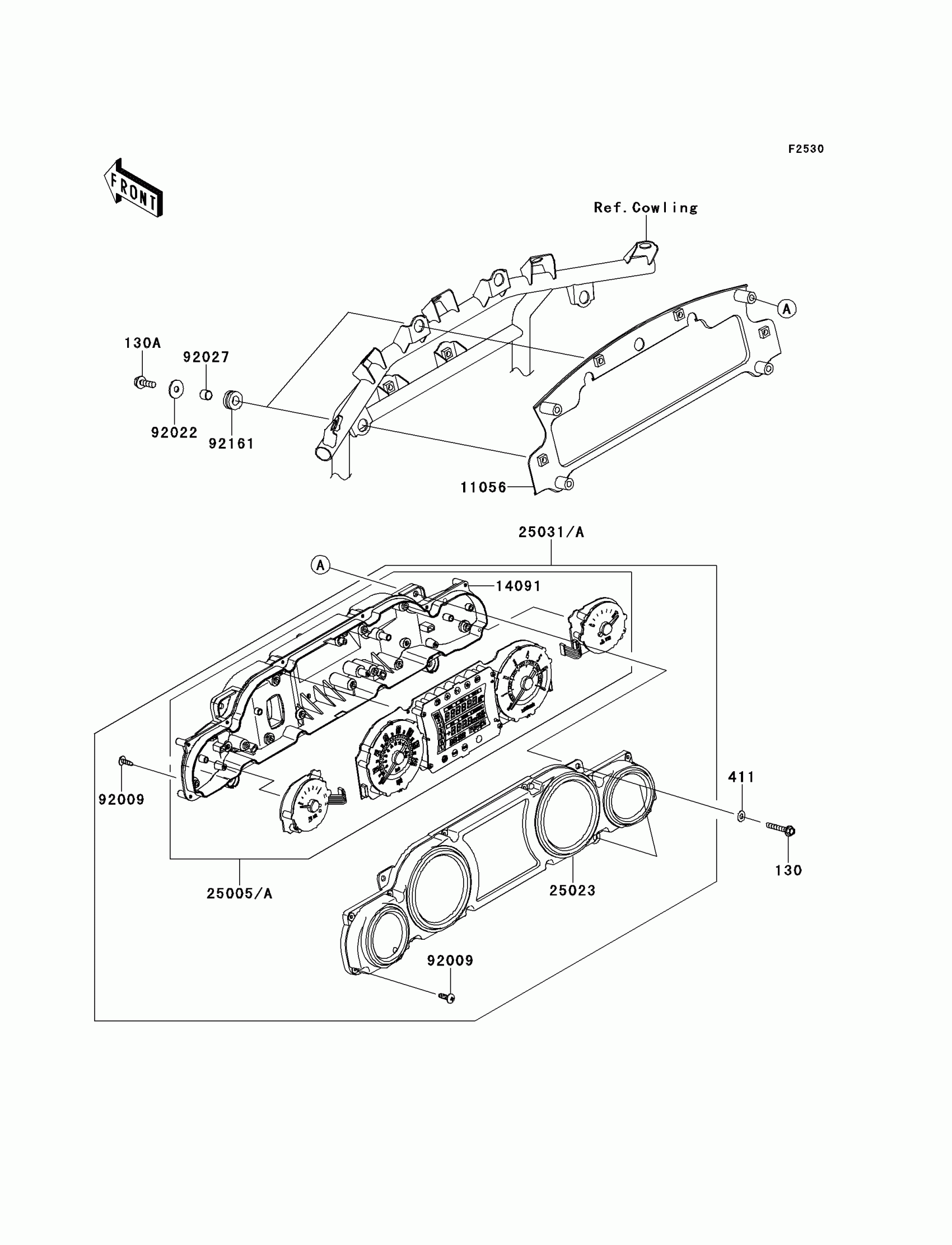

2013 Kawasaki Vulcan® 1700 Voyager® Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,5X35

130BA0535

1

$3.69

In stock

130A

BOLT-FLANGED,6X20

130BA0620

1

$1.49

In stock

411

WASHER-PLAIN,5MM

411AB0500

1
Out of stock

11056

BRACKET,METER

11056-1139

1
Out of stock

14091

COVER,METER,LWR

14091-1577

1
Out of stock

25023

COVER-METER CASE,UPP

25023-0037

1
Out of stock

92009

SCREW,TAPPING,3X16

92009-1391

1
Out of stock

92022

WASHER,6.5X20X1.6,BLACK

92022-1346

1
Out of stock

92027

COLLAR,6.8X10X8.5

92027-129

1
Out of stock

92161

DAMPER

92161-0154

1
Out of stock

25005

SPEEDOMETER,MPH

25005-0102

1
Out of stock

25005A

SPEEDOMETER,KPH

25005-0103

1
Out of stock

25031

METER-ASSY,MPH

25031-0381

1
Out of stock

25031A

METER-ASSY,KPH

25031-0382

1
Out of stock
