2012 Kawasaki Vulcan® 1700 Voyager® Headlight Diagram

← All diagrams

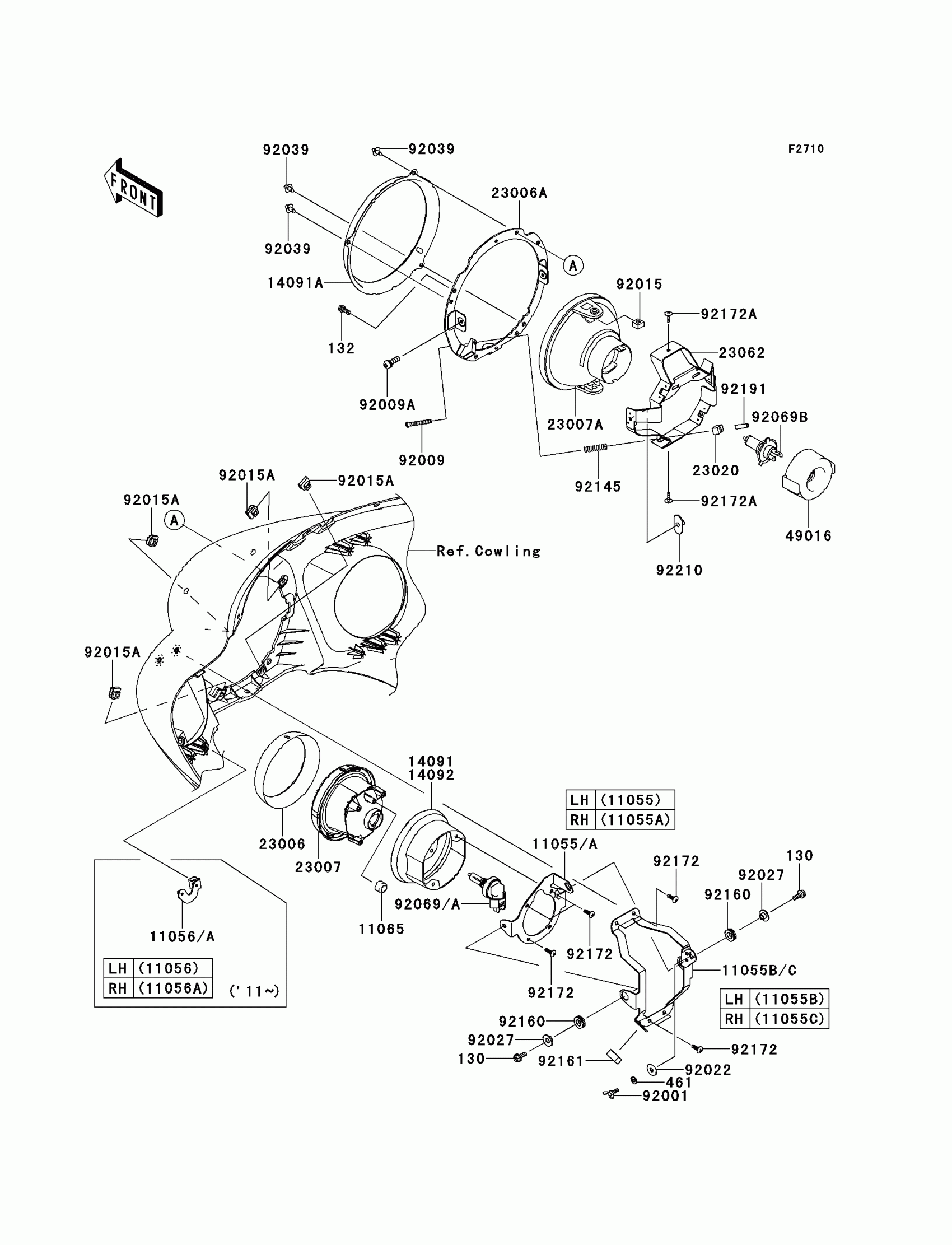

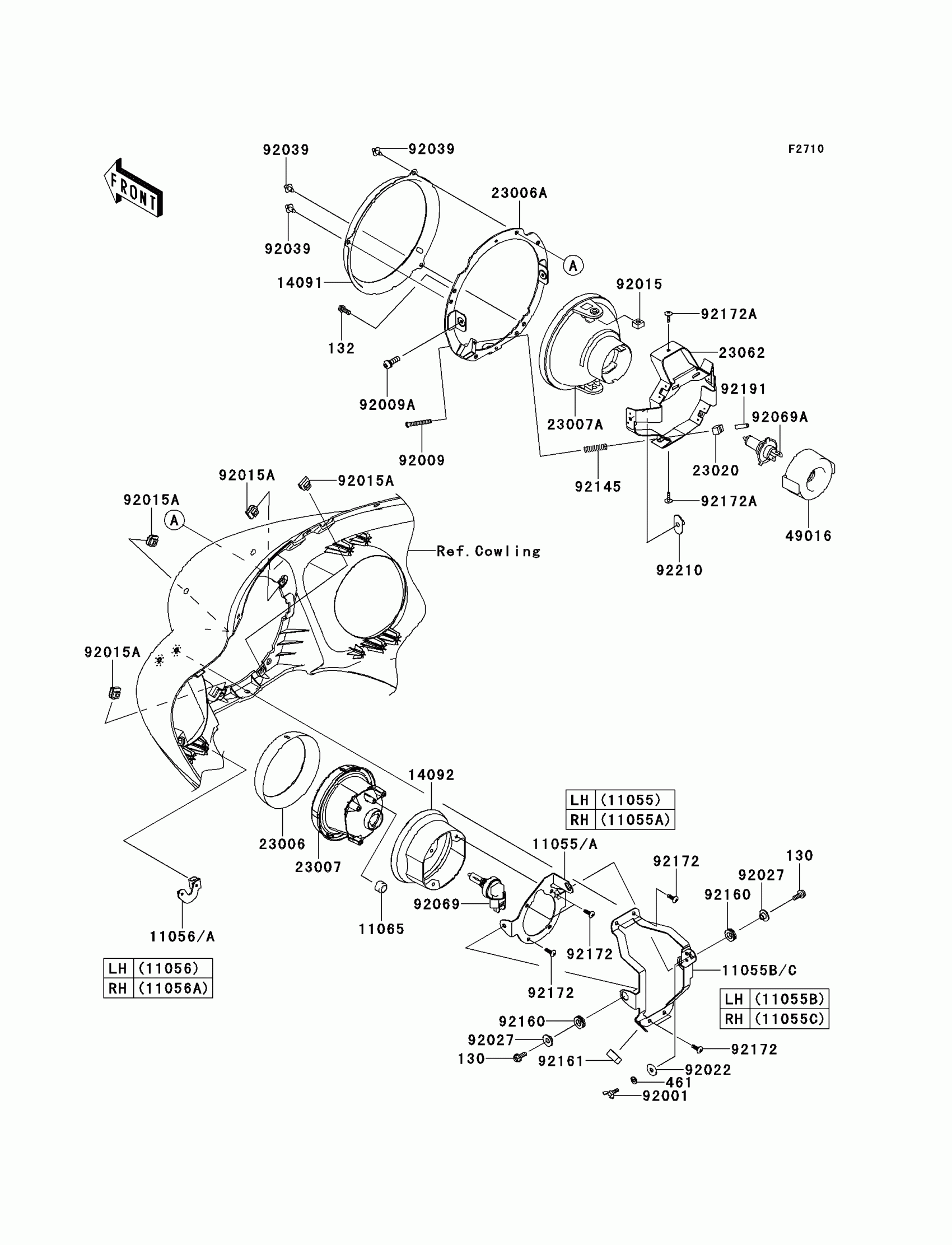

Find the part on the Headlight diagram for your 2012 Kawasaki Vulcan® 1700 Voyager®, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Kawasaki Vulcan® 1700 Voyager® Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X16

130AA0616

1
Out of stock

132

BOLT-FLANGED-SMALL,6X16

132BA0616

1
Out of stock

461

WASHER-SPRING,6MM

461DA0600

1
Out of stock

11055

BRACKET,AIMING,LH

11055-0730

1
Out of stock

11055A

BRACKET,AIMING,RH

11055-0990

1
Out of stock

11055B

BRACKET,AIMING,LH

11055-1779

1
Out of stock

11055C

BRACKET,AIMING,RH

11055-1780

1
Out of stock

11056

BRACKET,SUB LAMP,LH,LWR

11056-1145

1
Out of stock

11056A

BRACKET,SUB LAMP,RH,LWR

11056-1146

1
Out of stock

11065

CAP

11065-0135

1
Out of stock

14091A

COVER,RETAINER

14091-1620

1
Out of stock

14092

COVER

14092-0130

1
Out of stock

23006

RIM-LAMP

23006-0015

1
Out of stock

23006A

RIM-LAMP

23006-0016

1
Out of stock

23007

LENS-COMP,SUB LAMP

23007-0118

1
Out of stock

23007A

LENS-COMP,HEAD LAMP

23007-1396

1
Out of stock

23020

NUT,4MM,FOCUS ADJUST

23020-018

1
Out of stock

23062

BRACKET-COMP,HEAD LAMP

23062-1132

1
Out of stock

49016

COVER-SEAL,SOCKET

49016-1203

1
Out of stock

92001

BOLT,WING,6X15

92001-1703

1
Out of stock

92009

SCREW,FOCUS ADJUST,4X60

92009-1816

1
Out of stock

92009A

SCREW,5X16

92009-1879

1
Out of stock

92015

NUT,5MM

92015-1157

1
Out of stock

92015A

NUT,CLIP,6MM

92015-1904

1
Out of stock

92022

WASHER,6.5X20X1.6

92022-1557

1
Out of stock

92027

COLLAR,L=7.4

92027-1848

1
Out of stock

92039

RIVET

92039-0083

1
Out of stock

92069A

BULB,12V 35W,H8

92069-0054

1
Out of stock

92069B

BULB,12V 60/55W,H4

92069-1002

1
Out of stock

92145

SPRING,HEAD LAMP LENS

92145-1268

1
Out of stock

92160

DAMPER

92160-1278

1
Out of stock

92161

DAMPER

92161-0718

1
Out of stock

92172

SCREW,TAPPING,5X16

92172-0238

1
Out of stock

92172A

SCREW,TAPPING,4X16

92172-0391

1
Out of stock

92191

TUBE,3.5X5.5X19

92191-1217

1
Out of stock

92210

NUT,SPECIAL,5MM

92210-1060

1
Out of stock
