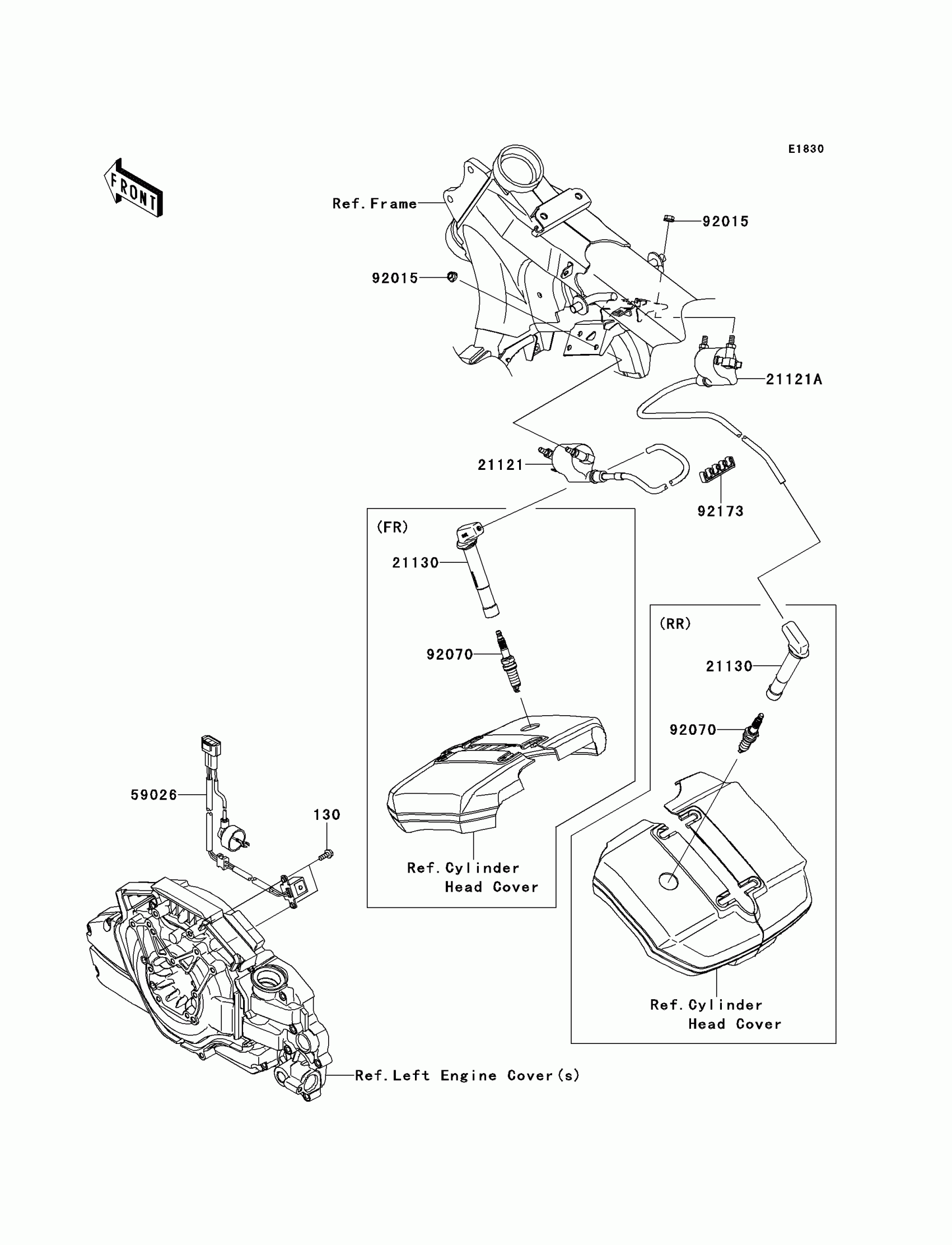

Find the part on the Ignition System diagram for your 2012 Kawasaki Vulcan® 1700 Voyager®, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Kawasaki Vulcan® 1700 Voyager® Ignition System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,5X14

130BA0514

1

$1.73

In stock

21121

COIL-IGNITION,FR

21121-0052

1
Out of stock

21121A

COIL-IGNITION,RR

21121-0053

1
Out of stock

21130

CAP-SPARK PLUG

21130-0008

1
Out of stock

59026

COIL-PULSING

59026-0029

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1367

1
Out of stock

92070

PLUG-SPARK,ILZKAR7B11(NGK)

92070-0036

1
Out of stock

92173

CLAMP

92173-0149

1
Out of stock
