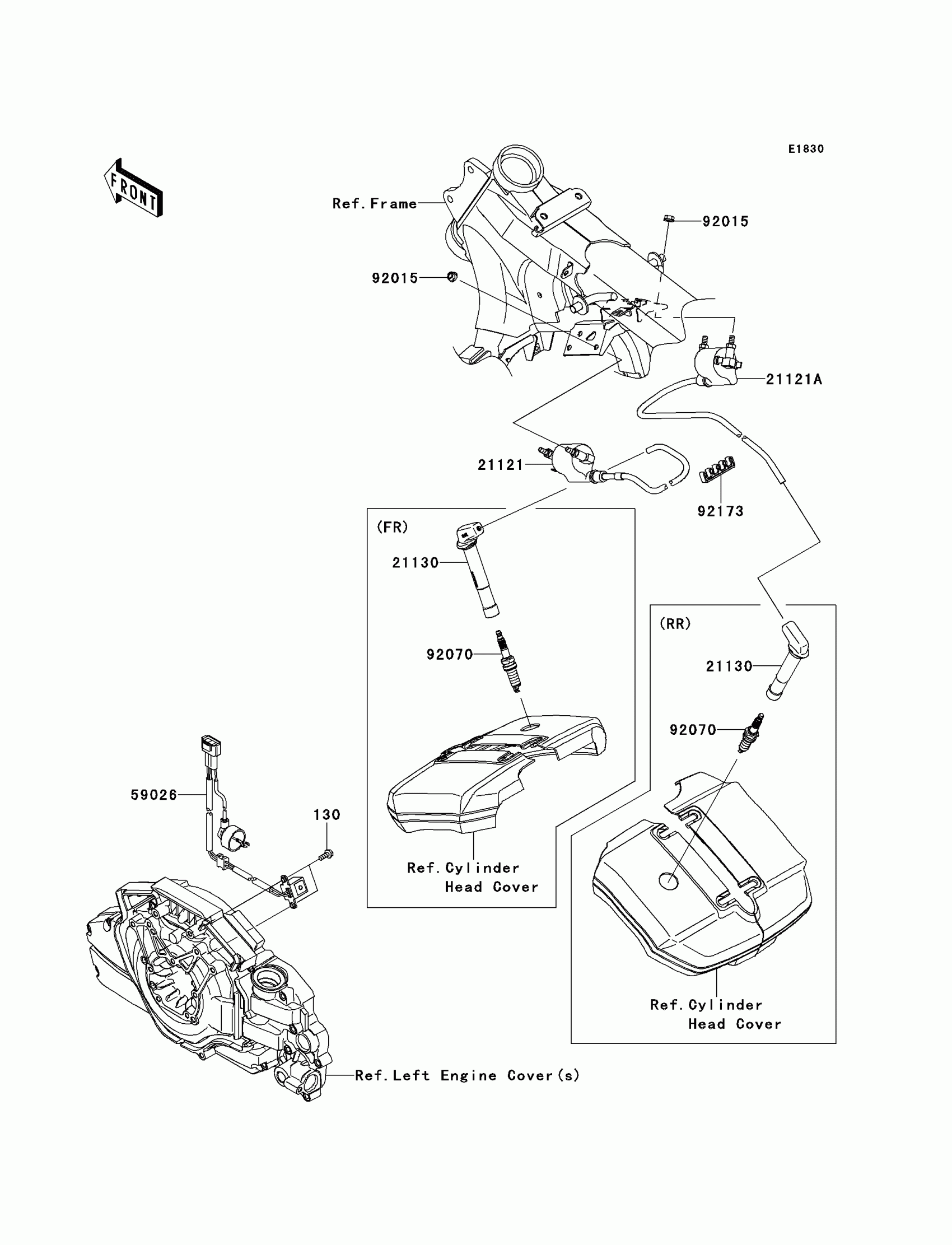

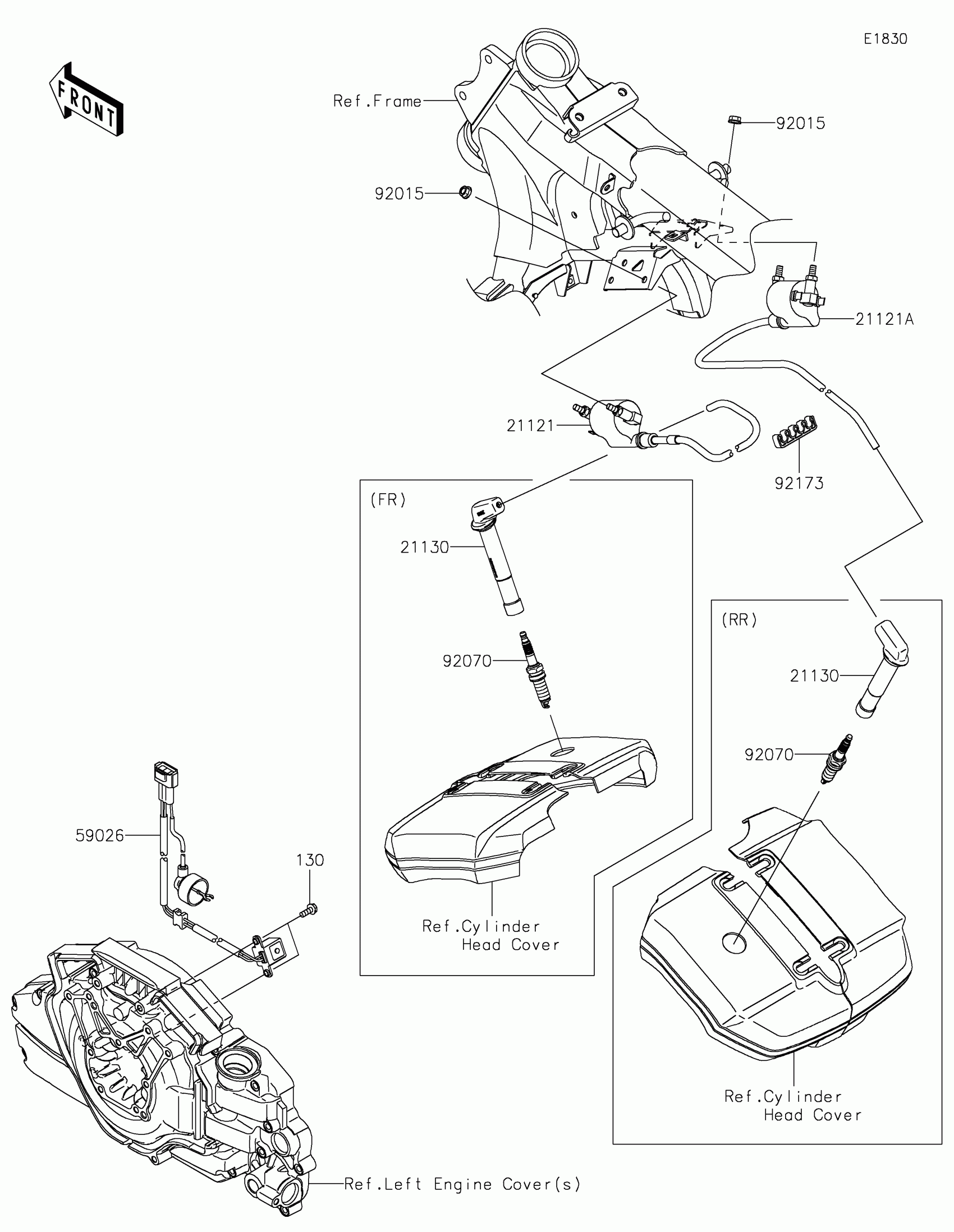

Kawasaki VULCAN® 1700 VOYAGER® ABS Ignition System Diagram

#

Description
Price

130

BOLT-FLANGED,5X14

130BA0514

$1.49

21121

COIL-IGNITION,FR

21121-0052

$105.16

21121A

COIL-IGNITION,RR

21121-0053

$105.16

21130

CAP-SPARK PLUG

21130-0008

$42.43

59026

COIL-PULSING

59026-0029

$118.09

92015

NUT,FLANGED,6MM

92015-1367

$2.53

92070

PLUG-SPARK,ILZKAR7B11(NGK)

92070-0036

$16.32

92173

CLAMP

92173-0149

$3.12
