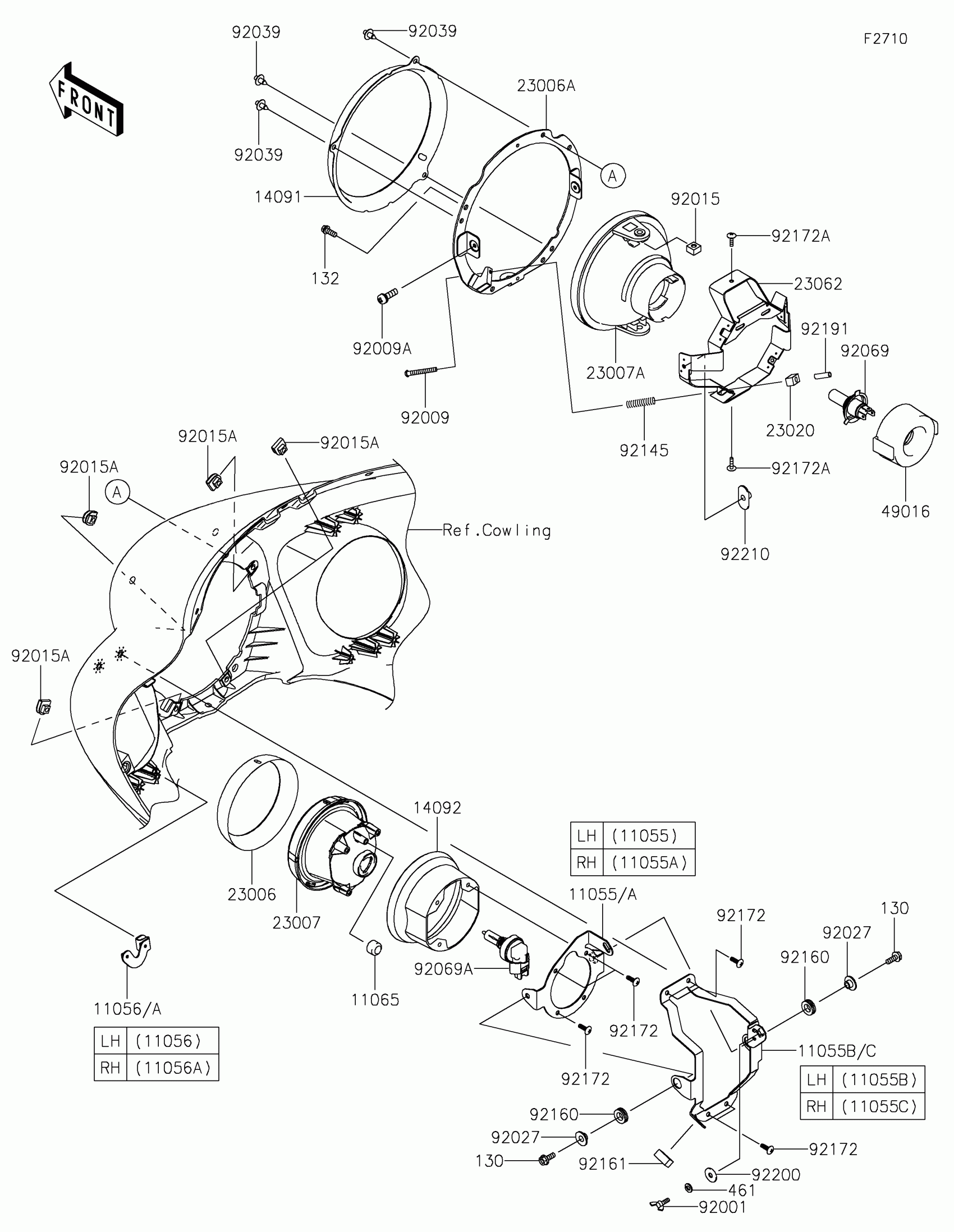

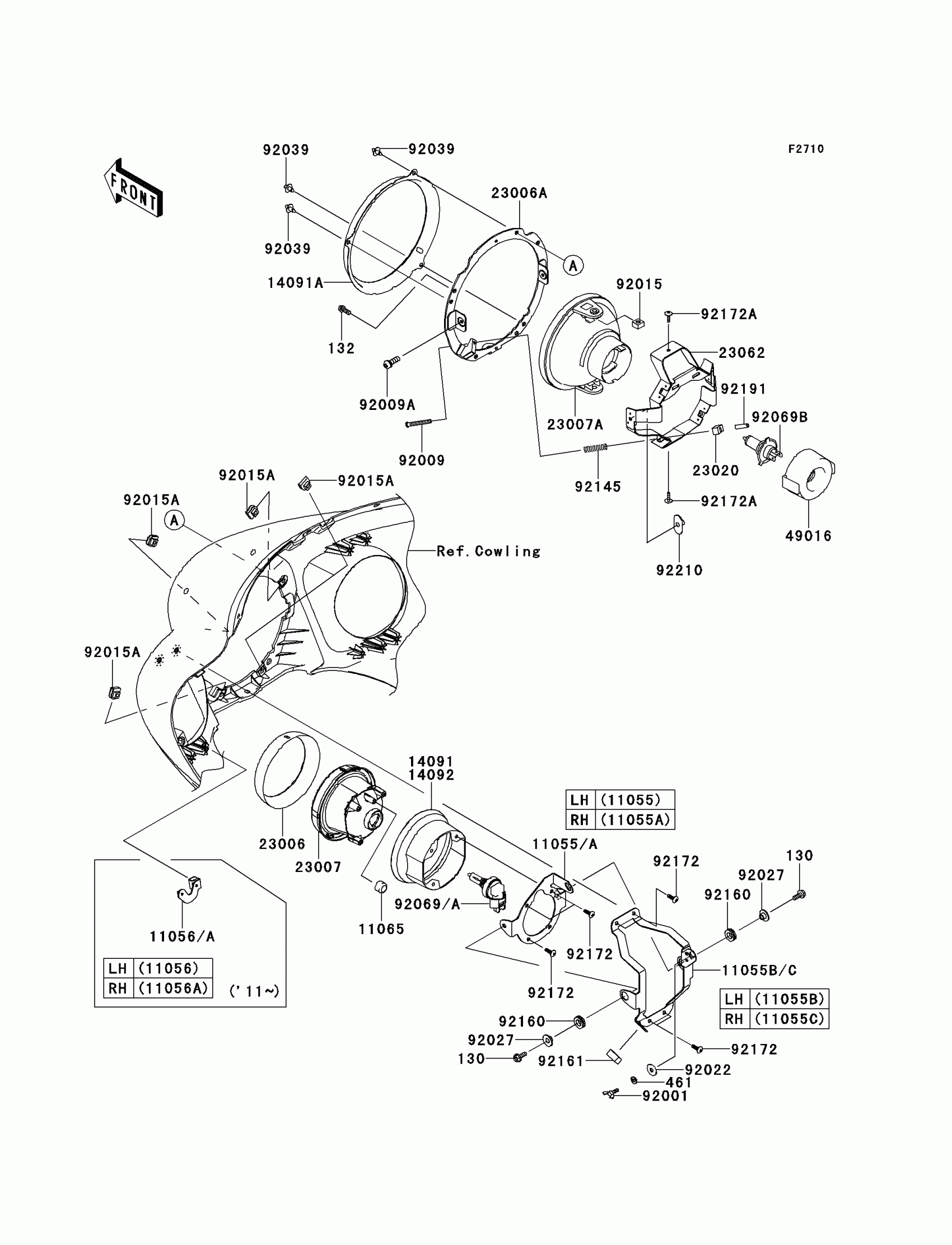

Kawasaki VULCAN® 1700 VOYAGER® ABS Headlight(s) Diagram

#

Description
Price

130

BOLT-FLANGED,6X16

130AA0616

$0.51

132

BOLT-FLANGED-SMALL,6X16

132BA0616

$1.16

461

WASHER-SPRING,6MM

461DA0600

$0.66

11055

BRACKET,AIMING,LH

11055-0730

$20.08

11055A

BRACKET,AIMING,RH

11055-0990

$20.08

11055B

BRACKET,AIMING,LH

11055-1779

$44.23

11055C

BRACKET,AIMING,RH

11055-1780

$44.23

11056

BRACKET,SUB LAMP,LH,LWR

11056-1145

$5.76

11056A

BRACKET,SUB LAMP,RH,LWR

11056-1146

$5.76

11065

CAP

11065-0135

$4.92

14091A

COVER,RETAINER

14091-1620

$97.16

14092

COVER

14092-0130

$43.95

23006

RIM-LAMP

23006-0015

$60.57

23006A

RIM-LAMP

23006-0016

$88.97

23007

LENS-COMP,SUB LAMP

23007-0118

$104.68

23007A

LENS-COMP,HEAD LAMP

23007-1396

$131.47

23020

NUT,4MM,FOCUS ADJUST

23020-018

$3.54

23062

BRACKET-COMP,HEAD LAMP

23062-1132

$51.45

49016

COVER-SEAL,SOCKET

49016-1203

$11.61

92001

BOLT,WING,6X15

92001-1703

$2.36

92009

SCREW,FOCUS ADJUST,4X60

92009-1816

$5.17

92009A

SCREW,5X16

92009-1879

$0.86

92015

NUT,5MM

92015-1157

$4.32

92015A

NUT,CLIP,6MM

92015-1904

$4.93

92022

WASHER,6.5X20X1.6

92022-1557

$1.08

92027

COLLAR,L=7.4

92027-1848

$3.57

92039

RIVET

92039-0083

$1.95

92069A

BULB,12V 35W,H8

92069-0054

$52.53

92069B

BULB,12V 60/55W,H4

92069-1002

Unavailable

92145

SPRING,HEAD LAMP LENS

92145-1268

$4.39

92160

DAMPER

92160-1278

$3.35

92161

DAMPER

92161-0718

$1.17

92172

SCREW,TAPPING,5X16

92172-0238

$0.84

92172A

SCREW,TAPPING,4X16

92172-0391

$2.64

92191

TUBE,3.5X5.5X19

92191-1217

$2.02

92210

NUT,SPECIAL,5MM

92210-1060

$2.03
