2012 Kawasaki Vulcan® 1700 Voyager® ABS Generator Diagram

← All diagrams

Find the part on the Generator diagram for your 2012 Kawasaki Vulcan® 1700 Voyager® ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

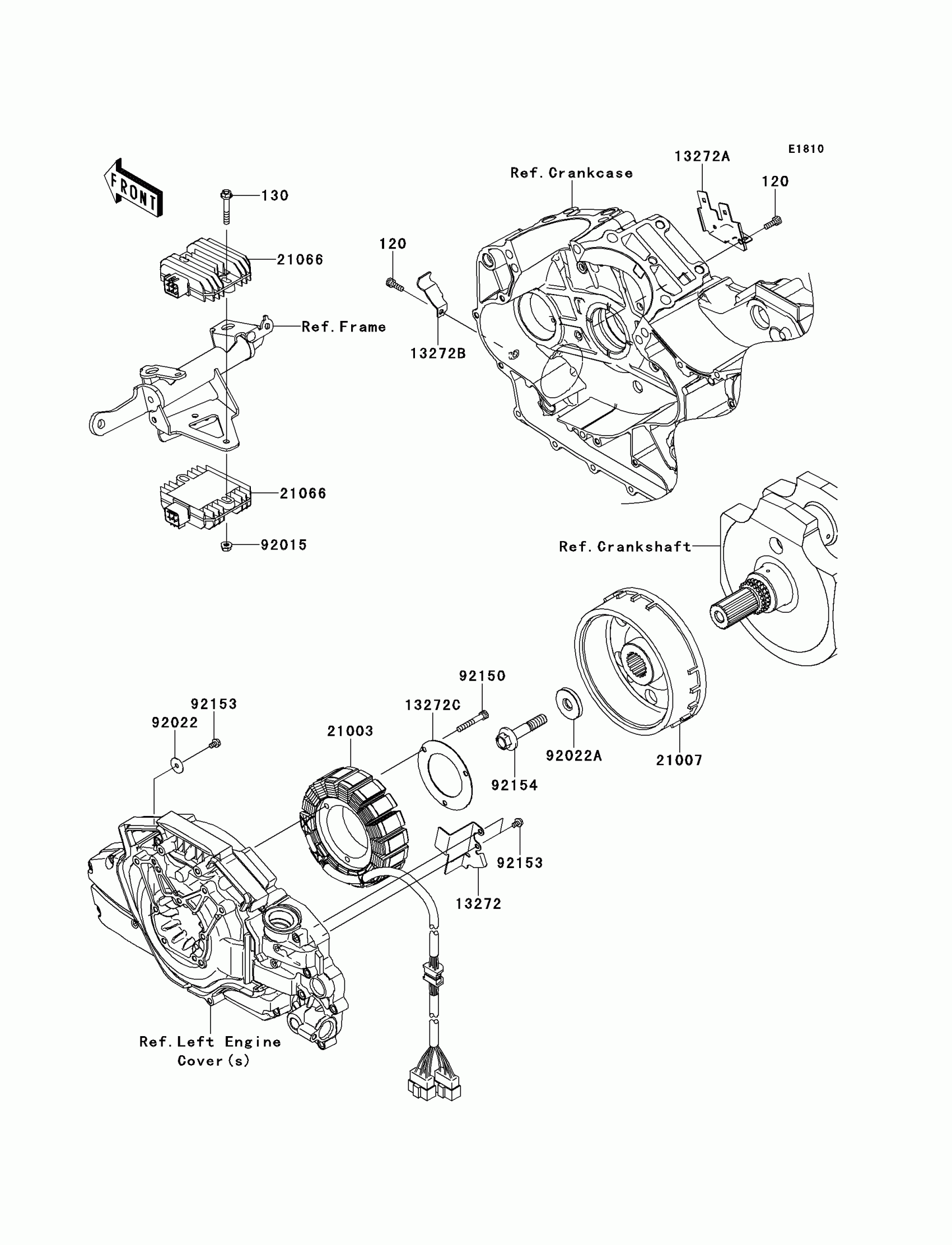

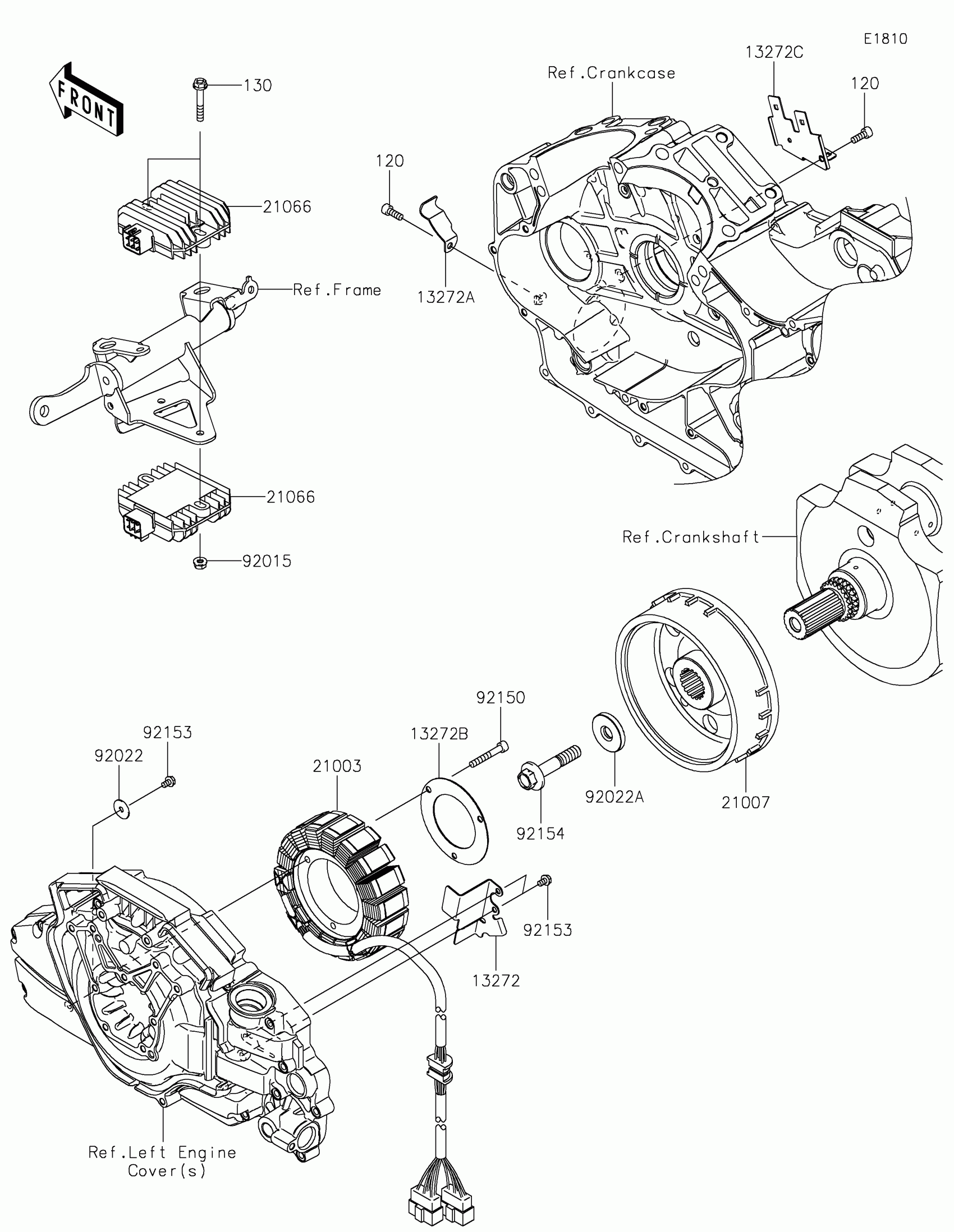

2012 Kawasaki Vulcan® 1700 Voyager® ABS Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,6X16

120CA0616

1
Out of stock

130

BOLT-FLANGED,6X40

130BB0640

1

$2.53

In stock

13272

1

$9.31

In stock

13272A

PLATE,COUPLER

13272-0426

1

$8.14

In stock

13272B

PLATE,FR RH CASE

13272-0427

1

$4.66

In stock

13272C

PLATE,STATOR

13272-0683

1

$4.66

In stock

21003

STATOR

21003-0076

1
Out of stock

21007

ROTOR

21007-0116

1
Out of stock

21066

REGULATOR-VOLTAGE

21066-0043

1
Out of stock

92015

NUT,FLANGED,6MM,BLACK

92015-1233

1
Out of stock

92022

WASHER,5.5X20X1.2

92022-104

1
Out of stock

92022A

WASHER,12X40X6

92022-1904

1
Out of stock

92150

BOLT,SOCKET,6X40

92150-1958

1
Out of stock

92153

BOLT,5X10

92153-0687

1
Out of stock

92154

BOLT,ROTOR,12X60

92154-0032

1
Out of stock
