2012 Kawasaki Vulcan® 1700 Nomad™ Taillight Diagram

← All diagrams

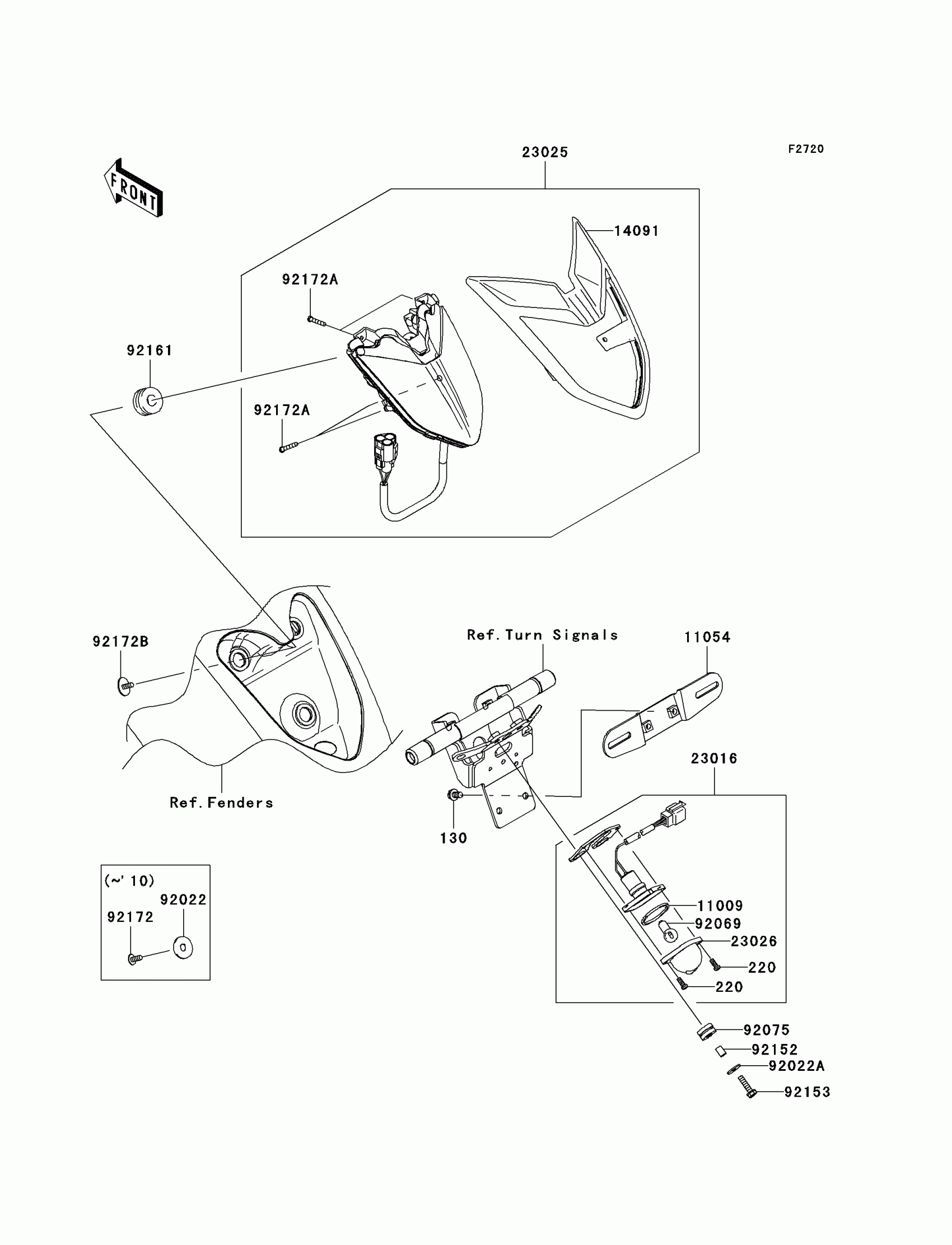

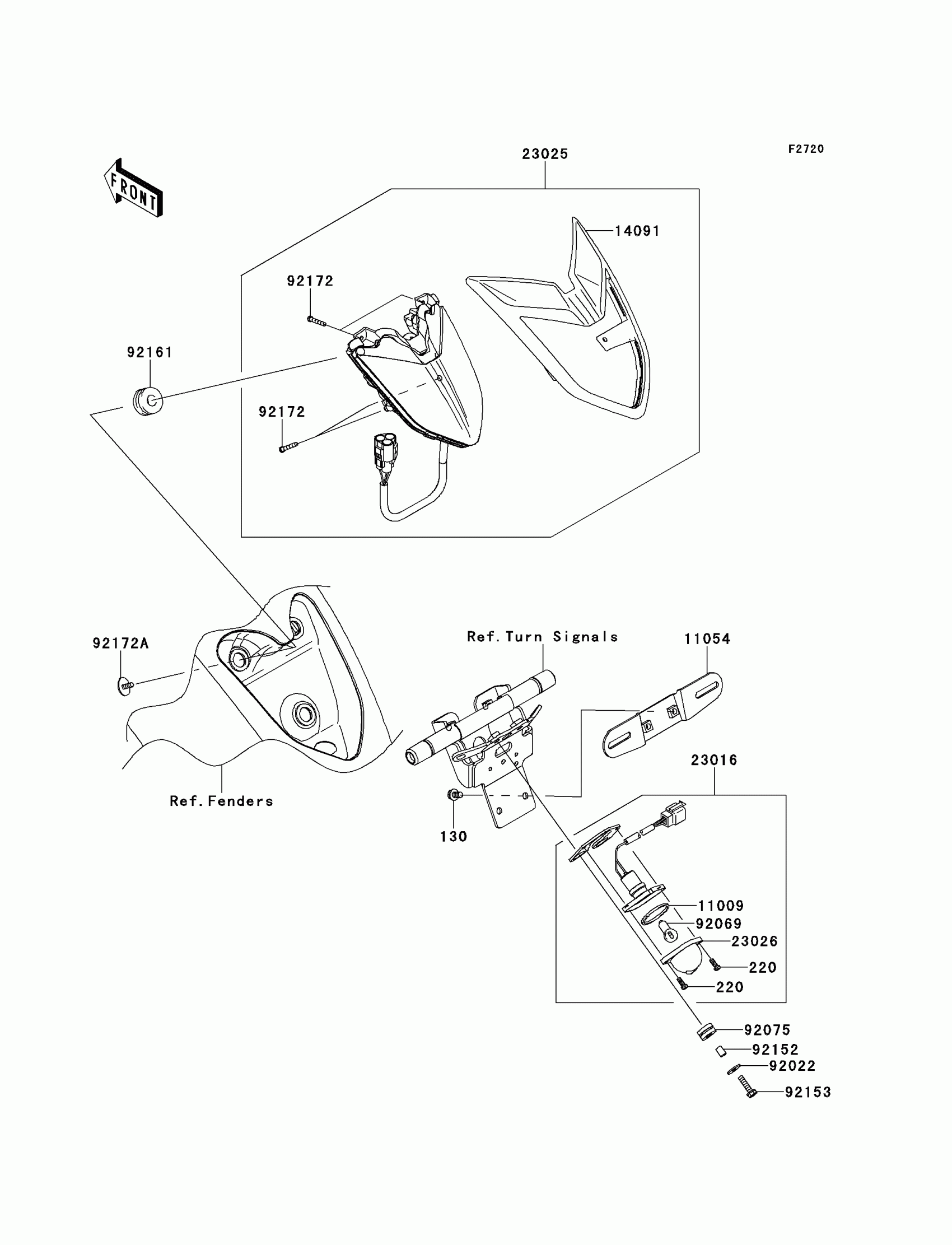

Find the part on the Taillight diagram for your 2012 Kawasaki Vulcan® 1700 Nomad™, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Kawasaki Vulcan® 1700 Nomad™ Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X12

130BB0612

1

$1.95

In stock

220

SCREW-PAN-CROS,4X10

220AA0410

1
Out of stock

11009

GASKET,LICENSE PLATE LAMP

11009-1372

1
Out of stock

11054

BRACKET,LICENSE

11054-1761

1

$18.29

In stock

14091

COVER,TAIL LAMP

14091-1592

1
Out of stock

23016

LAMP-ASSY,LICENSE

23016-0032

1
Out of stock

23025

LAMP-TAIL

23025-0052

1
Out of stock

23026

LENS,LAMP

23026-1054

1
Out of stock

92022A

WASHER,6.5X20X1.6

92022-1557

1
Out of stock

92069

BULB,12V 5W

92069-1055

1
Out of stock

92075

DAMPER RUBBER,RR FENR

92075-209

1
Out of stock

92152

COLLAR,6.8X10X13

92152-0580

1
Out of stock

92153

BOLT,FLANGED,6X25

92153-0514

1
Out of stock

92161

DAMPER

92161-0163

1
Out of stock

92172A

SCREW,TAPPING,4X16

92172-0392

1
Out of stock

92172B

SCREW,TAPPING+PW,5X14

92172-0477

1
Out of stock
