2012 Kawasaki Vulcan® 1700 Nomad™ Starter Motor Diagram

← All diagrams

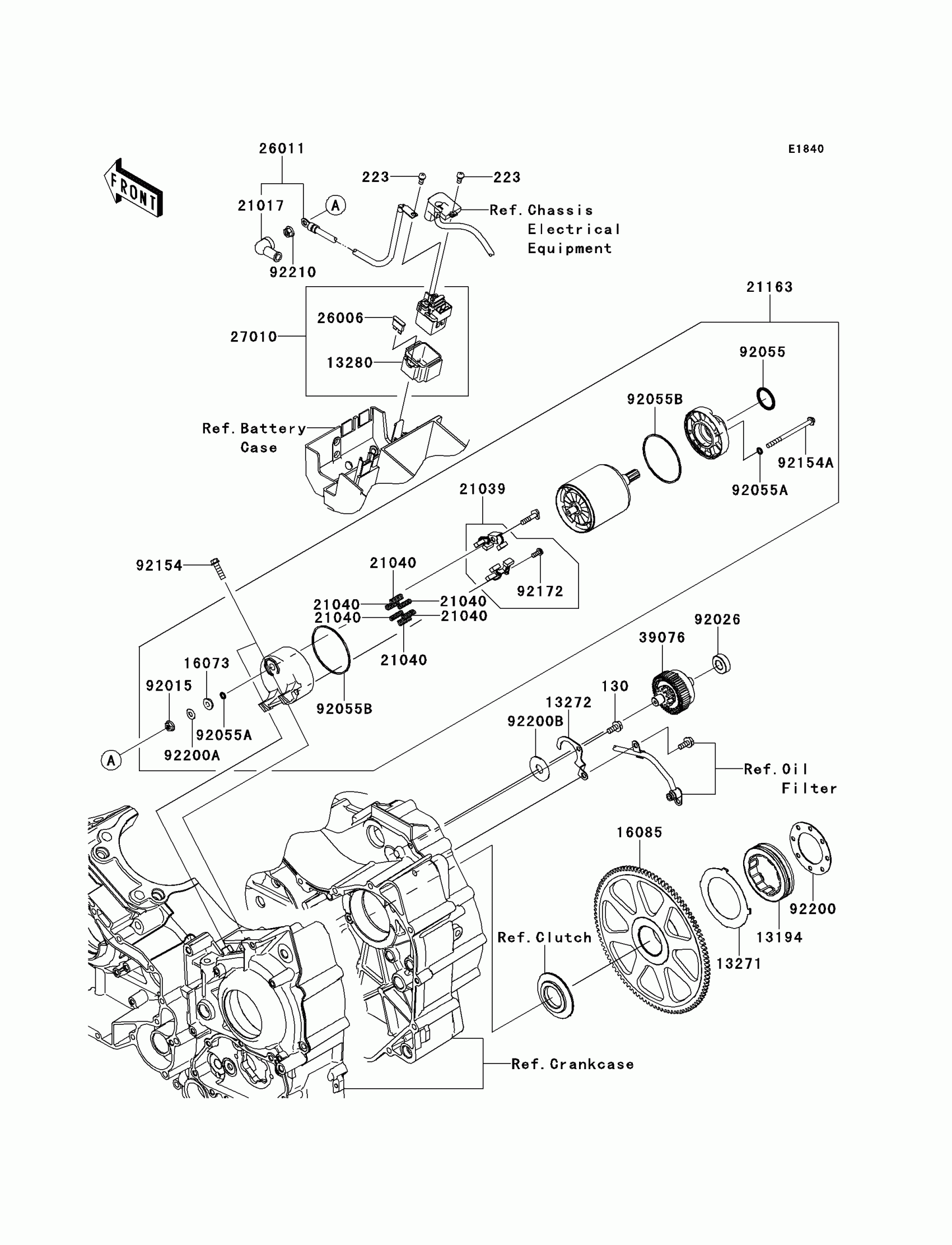

Find the part on the Starter Motor diagram for your 2012 Kawasaki Vulcan® 1700 Nomad™, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Kawasaki Vulcan® 1700 Nomad™ Starter Motor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X14

130BA0614

1

$1.12

In stock

223

SCREW-PAN-WS-CROS,5X10

223AA0510

1
Out of stock

13194

CLUTCH-ONEWAY

13194-0001

1
Out of stock

13271

PLATE

13271-0037

1

$11.73

In stock

13272

PLATE,LIMITER

13272-0673

1

$4.66

In stock

13280

HOLDER

13280-1263

1

$13.05

In stock

16073

INSULATOR

16073-0053

1
Out of stock

16085

GEAR,FREE WHEEL

16085-0121

1
Out of stock

21017

GROMMET,STARTER TERMINAL

21017-017

1
Out of stock

21039

BRUSH

21039-0009

1
Out of stock

21040

SPRING-BRUSH

21040-0003

1
Out of stock

21163

STARTER-ELECTRIC

21163-0055

1
Out of stock

26006

FUSE,BLADE,30A,GREEN

26006-1006

1
Out of stock

26011

WIRE-LEAD

26011-0239

1
Out of stock

27010

SWITCH,MAGNETIC

27010-1446

1
Out of stock

39076

1

$246.89

In stock

92015

NUT,STARTER MOTOR

92015-1476

1
Out of stock

92026

SPACER,12.3X25X8.1

92026-0127

1
Out of stock

92055

RING-O

92055-1276

1
Out of stock

92055A

RING-O,4.5X2.0

92055-1370

1
Out of stock

92055B

RING-O,STARTER MOTOR

92055-1381

1
Out of stock

92154

BOLT,FLANGED-SMALL,6X22

92154-0198

1
Out of stock

92154A

BOLT

92154-0265

1
Out of stock

92172

SCREW

92172-0334

1
Out of stock

92200

WASHER,44X73.5X1.2

92200-0019

1
Out of stock

92200A

WASHER

92200-0386

1
Out of stock

92200B

WASHER,12X34X1.6

92200-0478

1
Out of stock

92210

NUT,6MM

92210-0188

1
Out of stock
