2012 Kawasaki Vulcan® 1700 Nomad™ Ignition Switch/locks/reflectors Diagram

← All diagrams

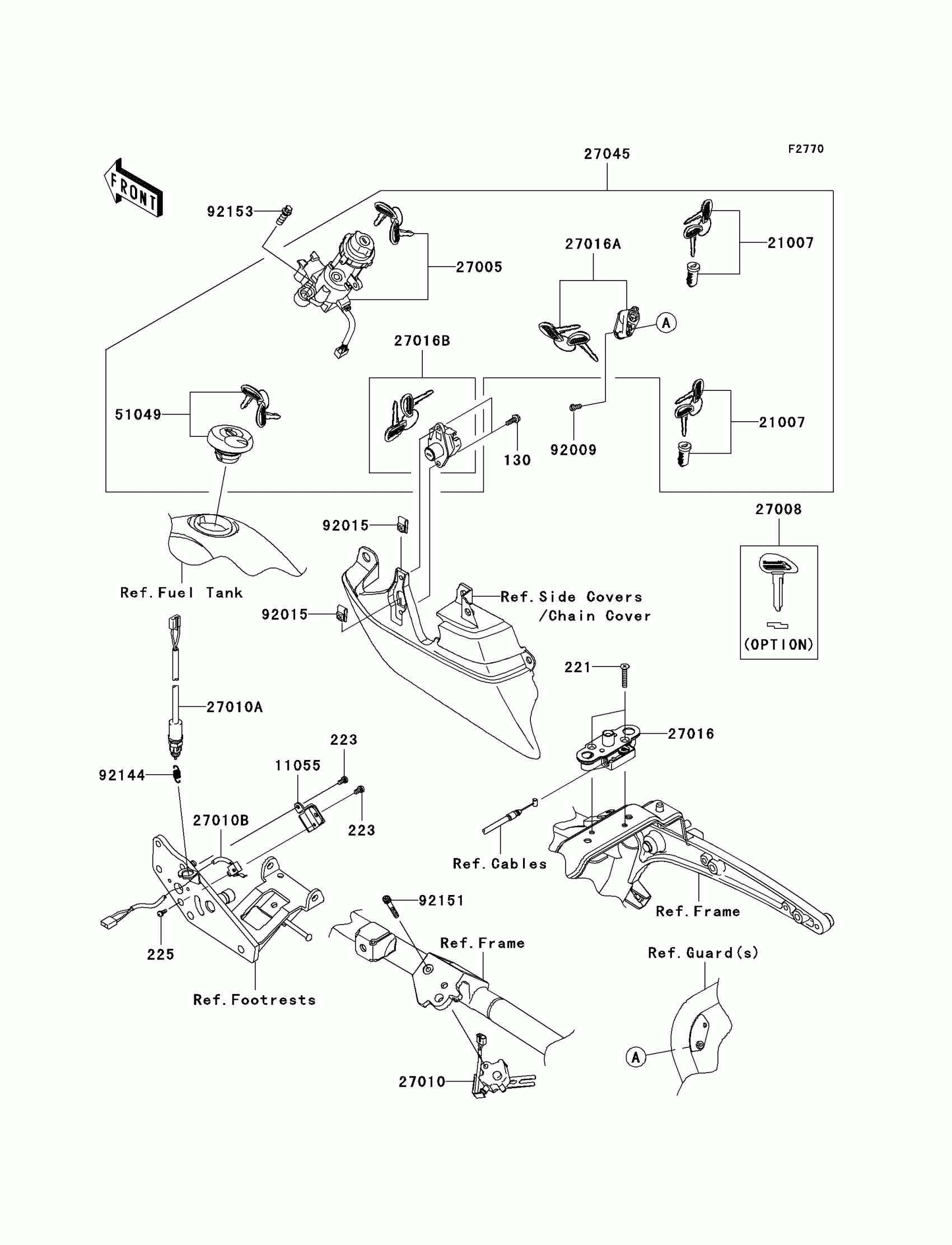

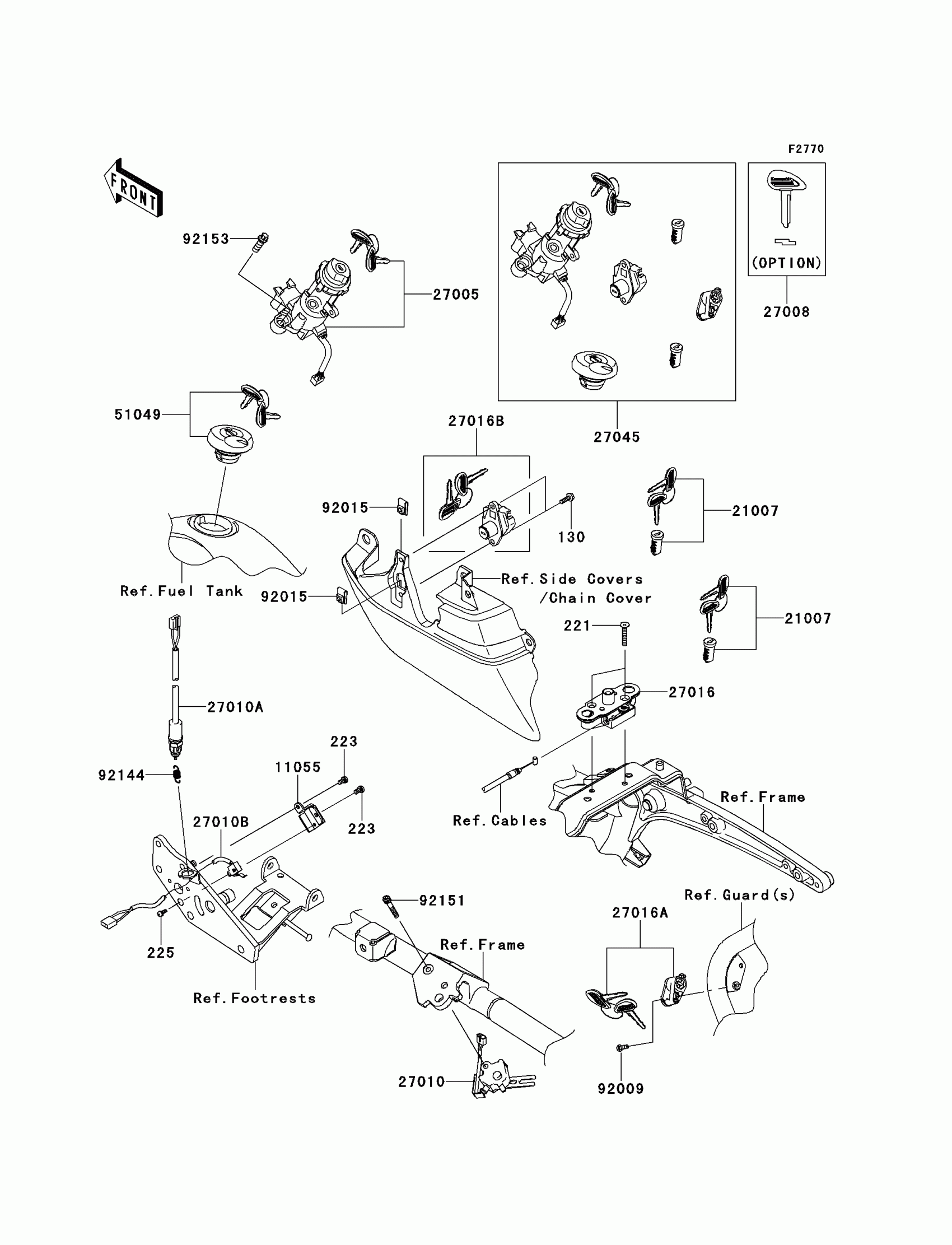

Find the part on the Ignition Switch/locks/reflectors diagram for your 2012 Kawasaki Vulcan® 1700 Nomad™, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Kawasaki Vulcan® 1700 Nomad™ Ignition Switch/locks/reflectors Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,5X16

130BA0516

1

$0.85

In stock

221

SCREW-CSK-CROS,6X30

221AA0630

1
Out of stock

223

SCREW-PAN-WS-CROS,5X10

223AB0510

1
Out of stock

225

SCREW-PAN-WSP-CROS,4X12

225AB0412

1
Out of stock

11055

1

$11.17

In stock

21007

ROTOR,PANNIER LOCK

21007-5065

1
Out of stock

27005

SWITCH-ASSY-IGNITION

27005-0052

1
Out of stock

27008

KEY-LOCK,BLANK

27008-1211

1
Out of stock

27010

SWITCH,SIDE STAND

27010-0088

1
Out of stock

27010A

SWITCH,REAR BRAKE

27010-0089

1
Out of stock

27010B

SWITCH,CRUISE CONTROL

27010-0090

1
Out of stock

27016

LOCK-ASSY,SEAT STRIKER

27016-1098

1
Out of stock

27016A

LOCK-ASSY,HELMET

27016-5311

1
Out of stock

27016B

LOCK-ASSY,SEAT

27016-5359

1
Out of stock

27045

SWITCH-ASSY

27045-5404

1
Out of stock

51049

CAP-TANK,FUEL

51049-5004

1
Out of stock

92009

SCREW,5X12

92009-1296

1
Out of stock

92015

NUT,5MM

92015-1710

1
Out of stock

92144

SPRING,REAR BRAKE SWITCH

92144-1141

1
Out of stock

92151

BOLT,SOCKET,6X35

92151-1390

1
Out of stock

92153

BOLT,TORX,8X22

92153-1273

1
Out of stock
