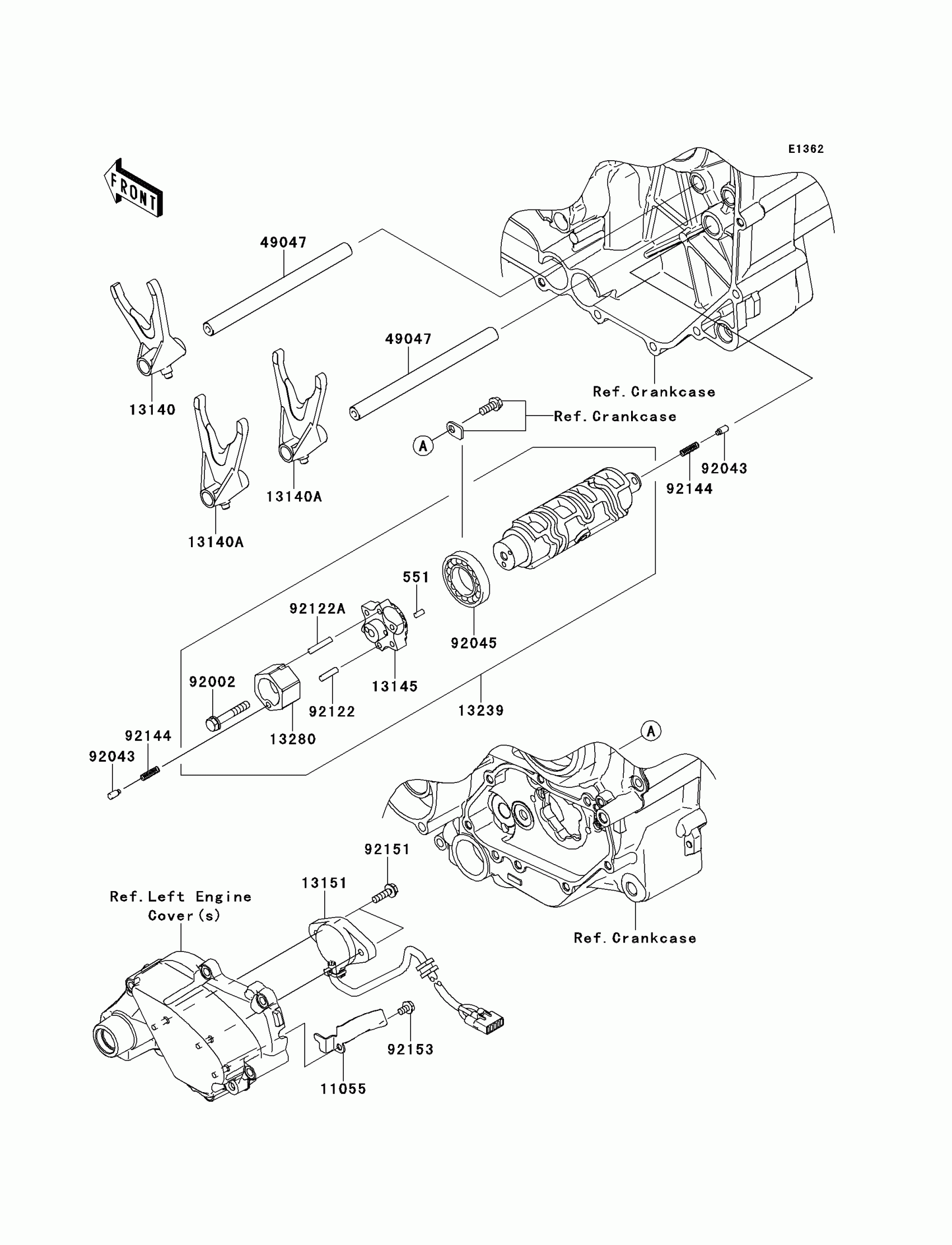

Kawasaki VULCAN® 1700 NOMAD™ Gear Change Drum/Shift Fork(s) Diagram

Description

Price

551

PIN-DOWEL,4X8

551A0408

$0.68

11055

BRACKET

11055-0525

$7.47

13140

FORK-SHIFT,INPUT

13140-0054

$109.41

13140A

FORK-SHIFT,OUTPUT

13140-0060

$109.41

13145

CAM-CHANGE DRUM

13145-0041

$67.09

13151

SWITCH-COMP,NEUTRAL

13151-0041

$130.70

13239

DRUM-ASSY-CHANGE

13239-0033

$243.71

13280

HOLDER

13280-0106

$29.88

49047

ROD-SHIFT

49047-0002

$24.24

92002

BOLT,6X38

92002-1431

$4.85

92043

92043-0085

$7.66

92045

BEARING-BALL,16005

92045-1045

$28.80

92122

ROLLER,4.5X17.8

92122-0001

$5.39

92122A

ROLLER,4.5X23.8

92122-0010

$5.31

92144

SPRING

92144-1245

$3.25

92151

BOLT

92151-1776

$1.95

92153

BOLT,5X10

92153-0687

$2.15
