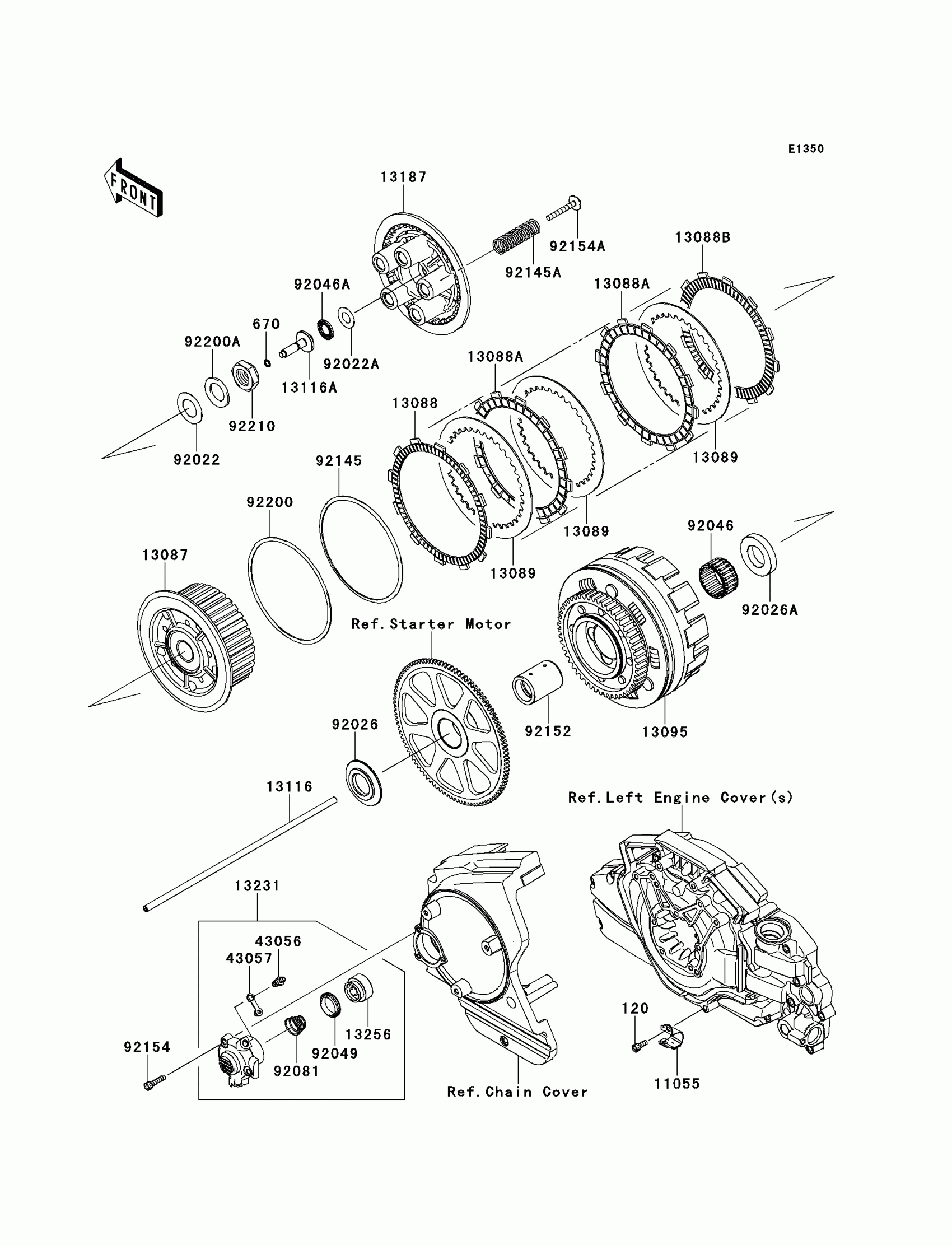

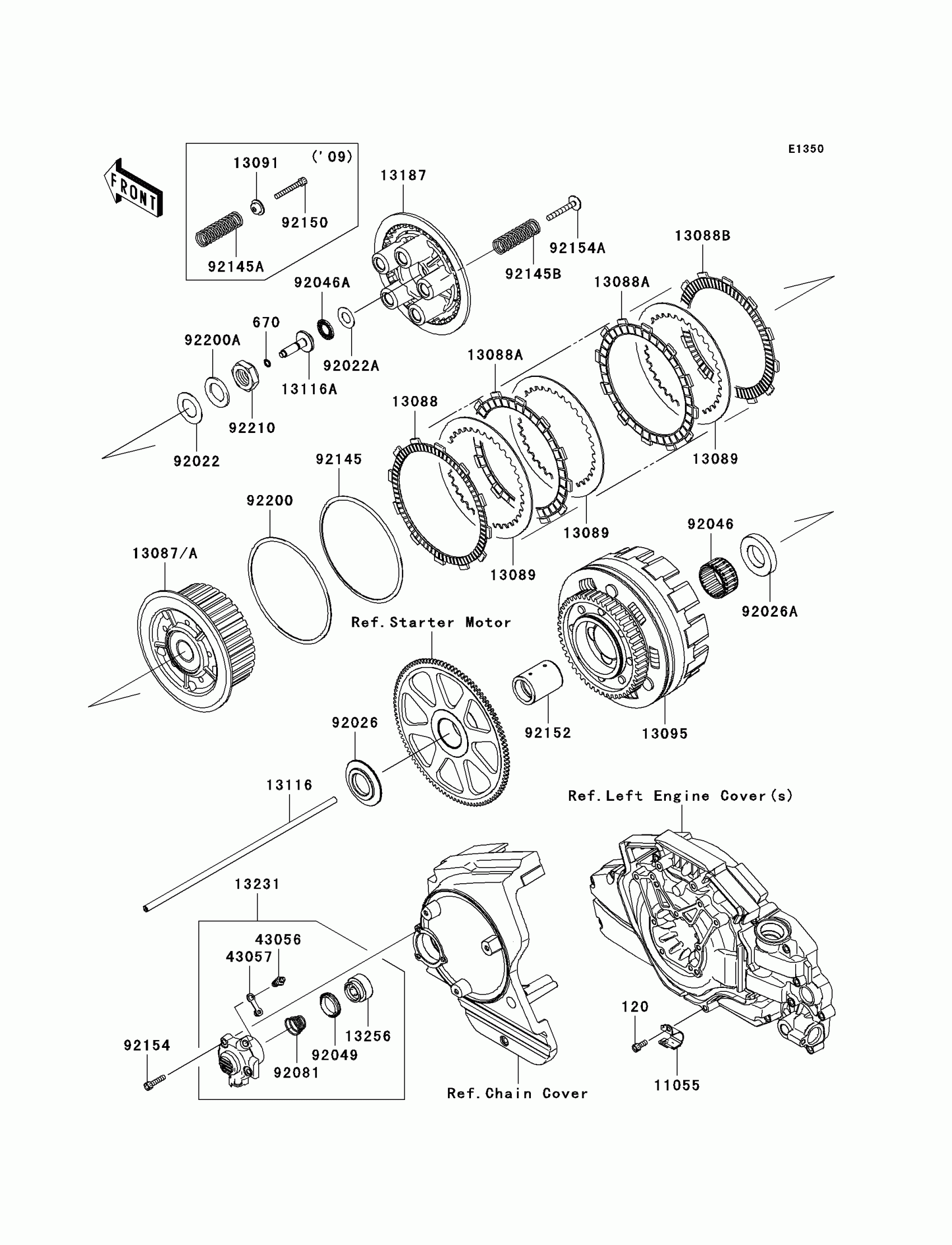

Find the part on the Clutch diagram for your 2012 Kawasaki Vulcan® 1700 Nomad™, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Kawasaki Vulcan® 1700 Nomad™ Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,6X14

120CC0614

1
Out of stock

670

O RING,7MM

670D1507

1
Out of stock

11055

BRACKET

11055-0528

1

$8.25

In stock

13087A

HUB-CLUTCH

13087-0052

1
Out of stock

13088

PLATE-FRICTION

13088-0001

1
Out of stock

13088A

PLATE-FRICTION

13088-0011

1
Out of stock

13088B

PLATE-FRICTION

13088-1146

1
Out of stock

13089

PLATE-CLUTCH,T=2.0

13089-1075

1
Out of stock

13095

HOUSING-COMP-CLUTCH

13095-0111

1

$901.40

In stock

13116

ROD-PUSH

13116-0027

1
Out of stock

13116A

ROD-PUSH

13116-0033

1
Out of stock

13187

PLATE-CLUTCH OPERATING

13187-0002

1
Out of stock

13231

RELEASE-ASSY-CLUTCH

13231-0003

1
Out of stock

13256

PISTON

13256-1052

1
Out of stock

43056

BREATHER

43056-1055

1
Out of stock

43057

CAP-BREATHER

43057-1001

1
Out of stock

92022

WASHER,25.3X44X1

92022-1390

1
Out of stock

92022A

WASHER,15.1X29X1.0

92022-1463

1
Out of stock

92026

SPACER

92026-0124

1
Out of stock

92026A

SPACER

92026-0136

1
Out of stock

92046

BEARING-NEEDLE,K40X48X25V3

92046-0001

1
Out of stock

92046A

BEARING-NEEDLE,AXK1102

92046-1052

1
Out of stock

92049

SEAL-OIL,PISTON

92049-1165

1
Out of stock

92081

SPRING,CLUTCH RELEASE

92081-1644

1
Out of stock

92145

SPRING

92145-0033

1
Out of stock

92145B

SPRING

92145-0771

1
Out of stock

92152

COLLAR,30X40X52.3

92152-0190

1
Out of stock

92154

BOLT,SOCKET,6X25

92154-0085

1
Out of stock

92154A

BOLT,CLUTCH OPERATING

92154-0352

1
Out of stock

92200

WASHER,140.1X150X1.2

92200-0015

1
Out of stock

92200A

WASHER,25.5X42X2.6

92200-0016

1
Out of stock

92210

NUT,25MM

92210-0138

1
Out of stock
