2014 Kawasaki Vulcan® 1700 Nomad™ ABS Front Brake Diagram

← All diagrams

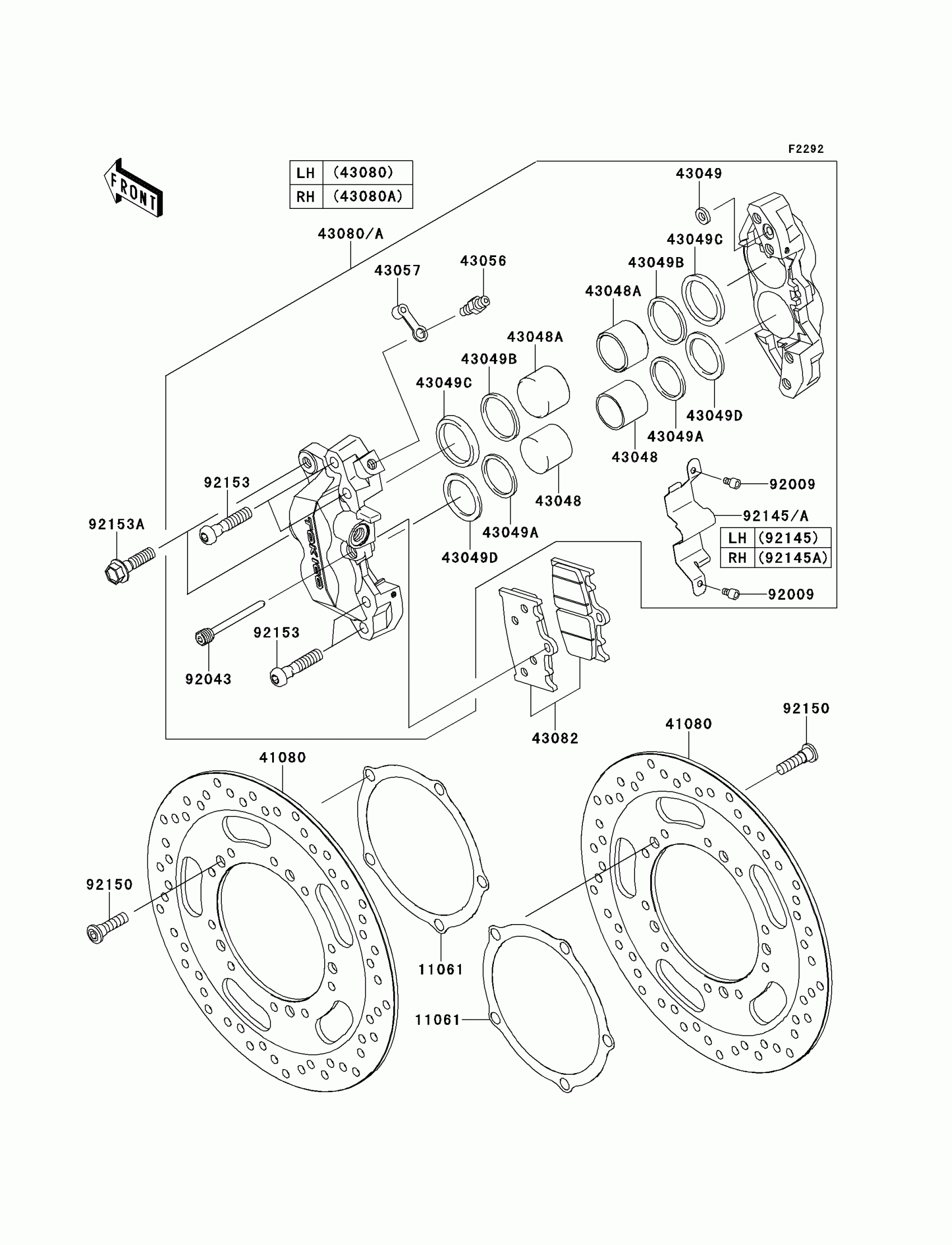

Find the part on the Front Brake diagram for your 2014 Kawasaki Vulcan® 1700 Nomad™ ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2014 Kawasaki Vulcan® 1700 Nomad™ ABS Front Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11061

GASKET,DISC PLATE

11061-0894

1
Out of stock

41080

DISC,FR,BLACK

41080-0181-11H

1
Out of stock

43048

PISTON-CALIPER,DIA=26.97

43048-1078

1
Out of stock

43048A

PISTON-CALIPER,DIA=30.2

43048-1098

1
Out of stock

43049

PACKING,SEAL,6.5X11.5X2.2

43049-1004

1
Out of stock

43049A

PACKING,PISTON

43049-1055

1
Out of stock

43049B

PACKING

43049-1068

1
Out of stock

43049C

PACKING,PISTON SEAL

43049-1092

1
Out of stock

43049D

PACKING,PISTON SEAL

43049-1096

1
Out of stock

43056

BREATHER-BRAKE

43056-0007

1
Out of stock

43057

CAP-BREATHER

43057-003

1
Out of stock

43080

CALIPER-SUB-ASSY,FR,LH,BLACK

43080-0073-DJ

1
Out of stock

43080A

CALIPER-SUB-ASSY,FR,RH,BLACK

43080-0074-DJ

1
Out of stock

43082

PAD-ASSY-BRAKE

43082-0016

1
Out of stock

92009

BOLT,SOCKET,4X6

92009-1758

1
Out of stock

92043

PIN,PAD

92043-1683

1
Out of stock

92145

SPRING,COVER,LH

92145-1503

1
Out of stock

92145A

SPRING,COVER,RH

92145-1504

1
Out of stock

92150

BOLT,SOCKET,8X30

92150-1771

1
Out of stock

92153

BOLT,SOCKET,8X40

92153-0360

1
Out of stock

92153A

BOLT,FLANGED,8X30

92153-1089

1
Out of stock
