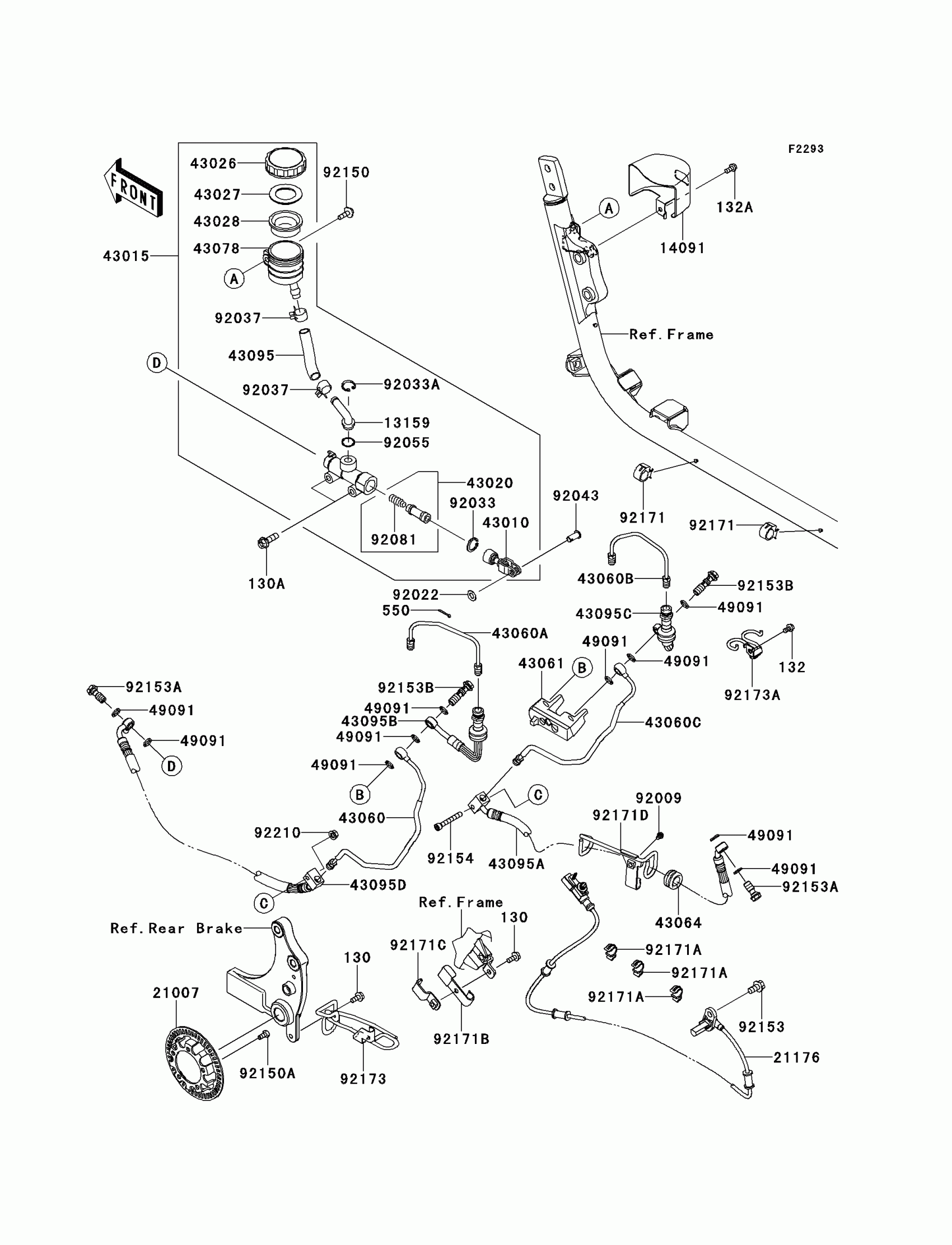

Kawasaki VULCAN® 1700 NOMAD™ ABS Rear Master Cylinder Diagram

#

Description
Price

13159

CONNECTOR,RR MASTER CYLINDER

13159-1052

$13.39

14091

COVER,RESERVOIR TANK

14091-1595

$68.43

21007

ROTOR,SPEED SENSOR

21007-0115

$44.23

21176

SENSOR,SPEED,RR

21176-0104

$156.43

43010

ROD-ASSY-BRAKE

43010-1062

$45.28

43015

CYLINDER-ASSY-MASTER,RR

43015-0081

$265.66

43020

PISTON-COMP-BRAKE

43020-1057

$58.51

43026

CAP-BRAKE

43026-1051

$30.63

43027

PLATE-DIAPHRAGM

43027-1051

$4.04

43028

DIAPHRAGM,MASTER CYLINDER

43028-1057

$14.40

43060

PIPE-BRAKE,RR M/CYLINDER-(HU)

43060-0078

$97.16

43060A

PIPE-BRAKE,(RR M/CYLINDER)-HU

43060-0079

$38.26

43060B

PIPE-BRAKE,HU-(RR CALIPER)

43060-0080

$38.26

43060C

PIPE-BRAKE,(HU)-RR CALIPER

43060-0081

$97.16

43061

JOINT-BRAKE

43061-0006

$35.46

43064

GROMMET,HOSE CLAMP

43064-007

$4.18

43078

RESERVOIR,RR MASTER CYLINDER

43078-1178

$24.59

43095

HOSE-BRAKE,RR MASTER CYLINDER

43095-0306

$15.29

43095A

HOSE-BRAKE,HU-RR CALIPER

43095-0391

$140.37

43095B

HOSE-BRAKE,(RR M/CYLINDER)-HU

43095-0520

$71.58

43095C

HOSE-BRAKE,HU-(RR CALIPER)

43095-0521

$49.45

43095D

HOSE-BRAKE,RR M/CYLINDER-(HU)

43095-0524

$91.95

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$1.57

92009

SCREW,6X10

92009-1661

$3.29

92022

WASHER,8.5X16X1.2

92022-1582

$0.81

92033

RING-SNAP,20.9X24.6X1.2

92033-0079

$5.94

92033A

RING-SNAP,20.5MM

92033-1186

$3.78

92037

CLAMP,BRAKE HOSE

92037-1547

$11.81

92043

PIN,8X16

92043-1013

$7.54

92055

RING-O,14.8X2.4

92055-0741

$2.82

92081

SPRING,MASTER CYLINDER

92081-1737

$11.69

92150

BOLT,6X20

92150-1339

$3.35

92150A

BOLT,SOCKET,6X14

92150-1836

$3.57

92153

BOLT,SOCKET,8X16

92153-0327

$4.72

92153A

BOLT,OIL,L=23

92153-0627

$4.15

92153B

BOLT,OIL,L=37

92153-1438

$3.74

92154

BOLT,SOCKET,6X45

92154-0134

$1.95

92171

CLAMP,DIA=15

92171-1424

$3.19

92171A

CLAMP,BRAKE HOSE

92171-1819

$4.85

92171B

CLAMP

92171-1826

$12.36

130

BOLT-FLANGED,6X14

130BA0614

$0.97

130A

BOLT-FLANGED,8X25

130BB0825

$3.39

132

BOLT-FLANGED-SMALL,6X10

132BA0610

$1.27

132A

BOLT-FLANGED-SMALL,6X12

132BB0612

$1.49

550

PIN-COTTER,2.0X15

550AA2015

$0.90

92171C

CLAMP

92171-1827

$11.22

92171D

CLAMP

92171-1828

$45.92

92173

CLAMP,BRAKE HOSE

92173-0138

$47.65

92173A

CLAMP,RR BRAKE HOSE

92173-0184

$20.97

92210

NUT,FLANGED,6MM

92210-0630

$1.46
