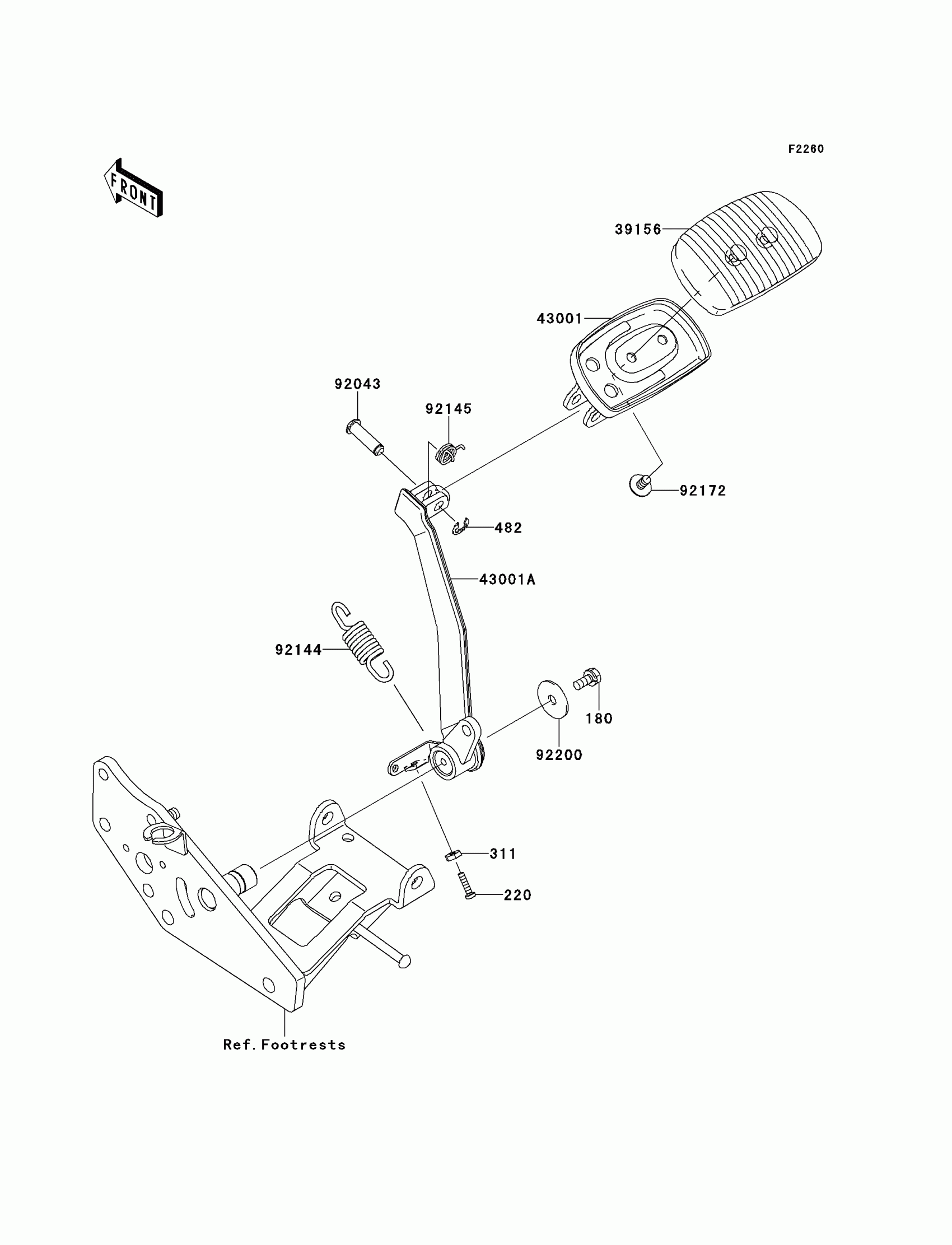

Kawasaki VULCAN® 1700 NOMAD™ ABS Brake Pedal/Torque Link Diagram

Description

Price

180

BOLT-UPSET-WS,6X14

180BA0614

$1.00

220

SCREW-PAN-CROS,4X16

220AB0416

$1.33

311

NUT-HEX,4MM

311AB0400

$0.63

482

CIRCLIP-TYPE-E

482EA7000

$2.99

39156

PAD,BRAKE PEDAL

39156-0045

$39.05

43001

LEVER-BRAKE

43001-0023

$36.45

43001A

LEVER-BRAKE,PEDAL

43001-0102

$120.91

92043

PIN,8X24.5

92043-0047

$7.80

92144

SPRING,BRAKE PEDAL RETURN

92144-1169

$9.14

92145

SPRING

92145-0168

$7.75

92172

SCREW,6X10

92172-0098

$1.98

92200

WASHER,7X28X1.6

92200-0279

$1.53
