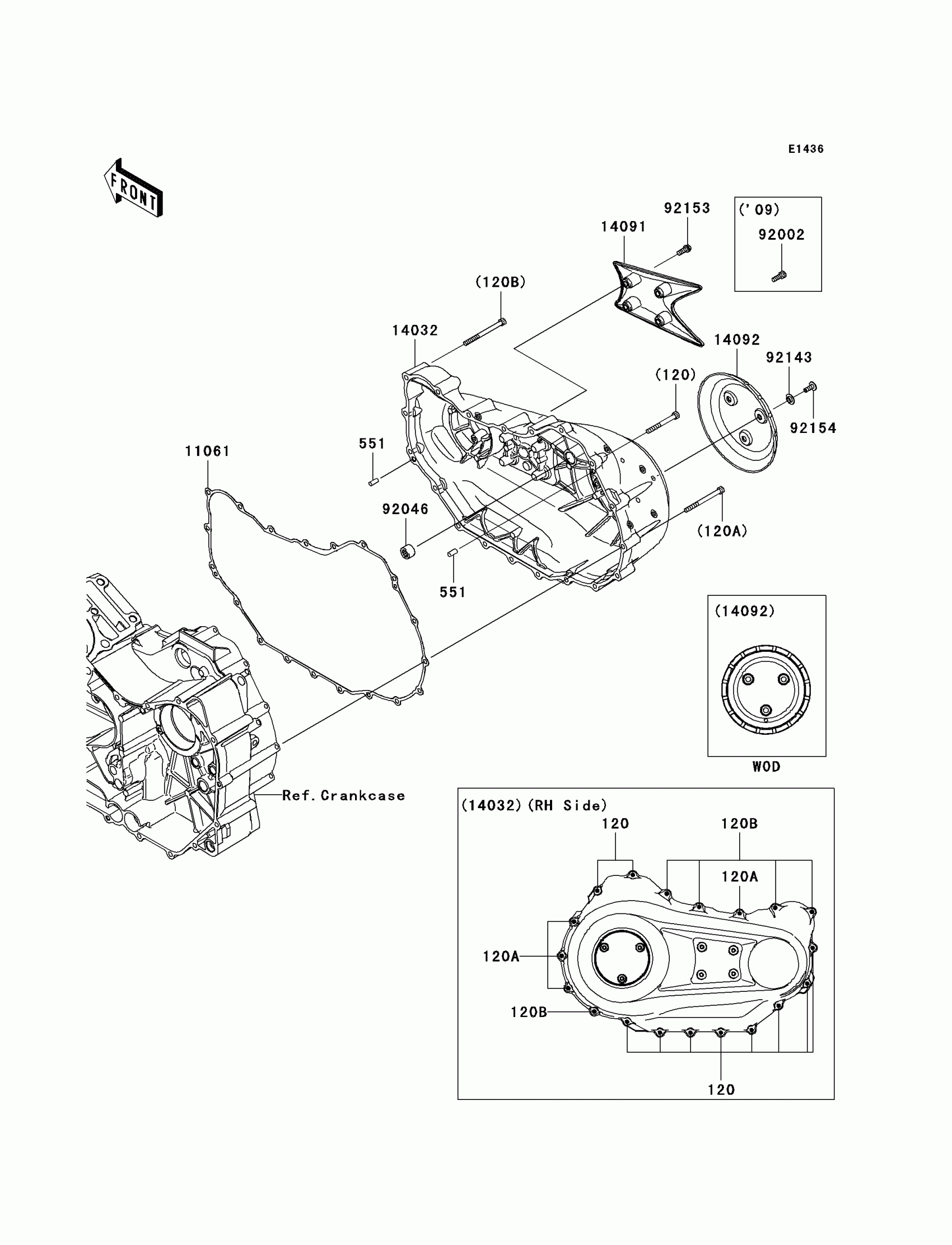

Kawasaki VULCAN® 1700 CLASSIC Right Engine Cover(s) Diagram

Description

Price

120

BOLT-SOCKET,6X50

120CC0650

$2.10

120A

BOLT-SOCKET,6X65

120CC0665

$2.59

120B

BOLT-SOCKET,6X75

120CC0675

$3.15

551

PIN-DOWEL,6X14

551A0614

$3.53

11061

GASKET,CLUTCH COVER

11061-0337

$45.93

14032

COVER-CLUTCH

14032-0141

$678.78

14091

COVER,CLUTCH,OUTER

14091-0995

$35.46

14092

COVER,CLUTCH OUTER

14092-0033

$29.08

92046

BEARING-NEEDLE,HK1212V11

92046-1292

$15.86

92143

COLLAR

92143-1087

$2.98

92153

BOLT,6X16

92153-0825

$2.15

92154

BOLT,SOCKET,6X16

92154-0257

$1.73
