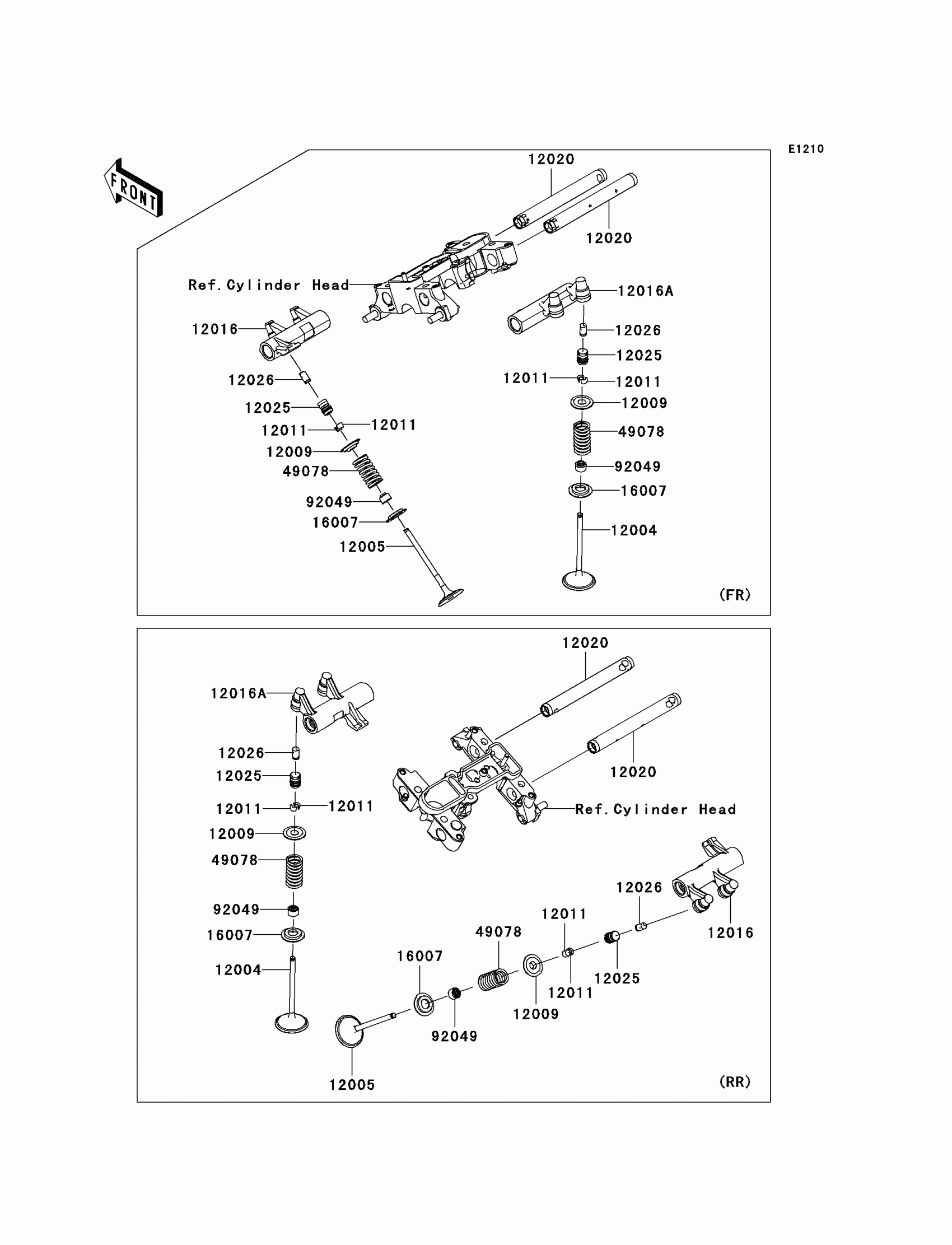

Find the part on the Valve diagram for your 2012 Kawasaki Vulcan® 1700 Classic, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2012 Kawasaki Vulcan® 1700 Classic Valve Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

12004

VALVE-INTAKE

12004-0001

1
Out of stock

12005

VALVE-EXHAUST

12005-0001

1
Out of stock

12009

RETAINER-VALVE SPRING

12009-0002

1
Out of stock

12011

COLLET

12011-0001

1
Out of stock

12016

ARM-ROCKER

12016-0027

1
Out of stock

12016A

ARM-ROCKER

12016-0028

1
Out of stock

12020

SHAFT-ROCKER

12020-0008

1
Out of stock

12025

ADJUSTER-LASH

12025-1053

1
Out of stock

12026

CHAMBER,OIL

12026-1001

1
Out of stock

16007

SEAT-SPRING

16007-0001

1
Out of stock

49078

SPRING-ENGINE VALVE

49078-0001

1
Out of stock

92049

SEAL-OIL,RVC2 6 10.5 9.4

92049-0009

1
Out of stock
