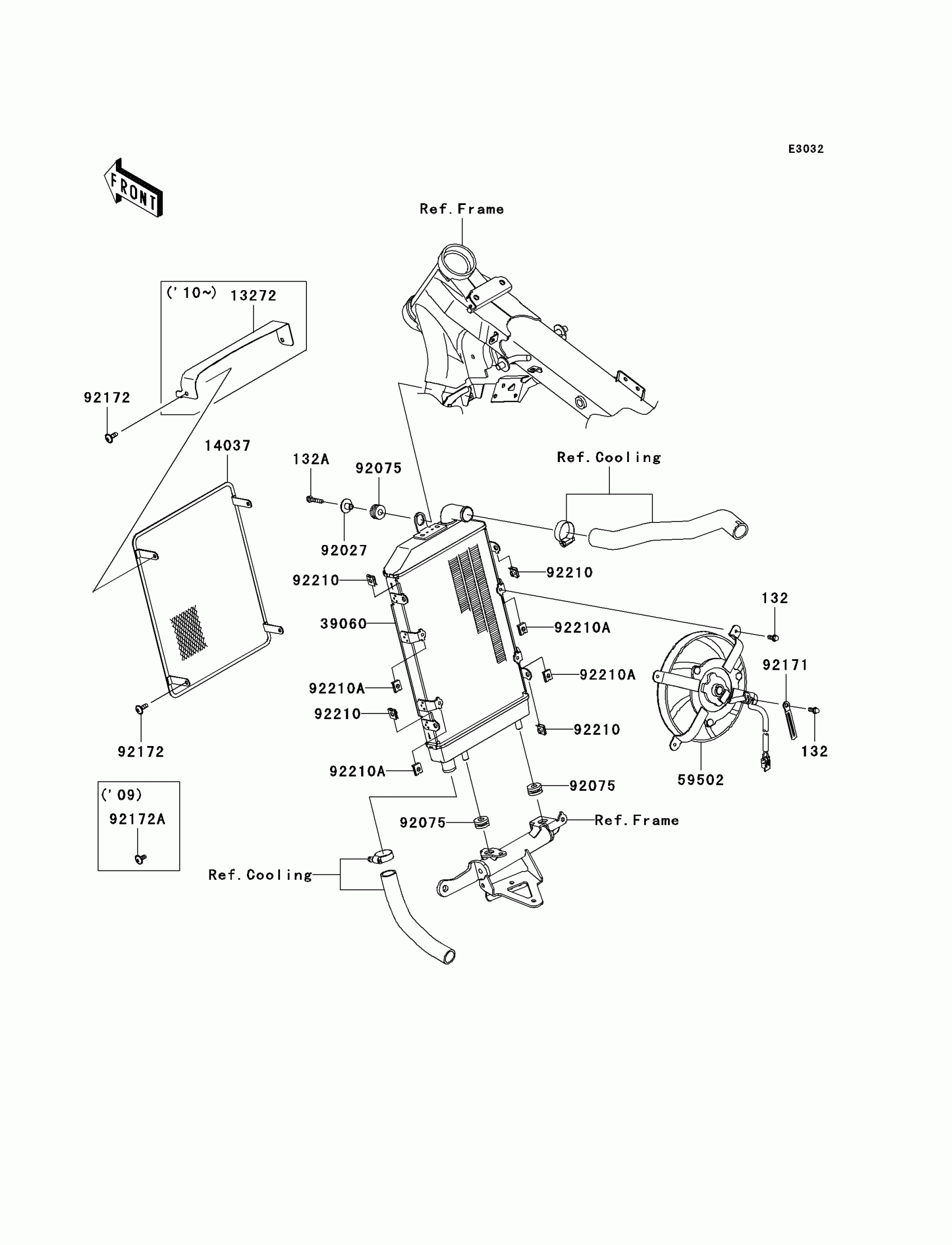

Kawasaki VULCAN® 1700 CLASSIC Radiator Diagram

Description

Price

132

BOLT-FLANGED-SMALL,6X14

132BB0614

$1.77

132A

BOLT-FLANGED-SMALL,6X20

132BB0620

$3.05

13272

PLATE

13272-0882

$35.81

14037

SCREEN,INNER

14037-0014

$73.48

39060

RADIATOR

39060-0059

$660.36

59502

FAN-ASSY

59502-0040

$801.03

92027

COLLAR,L=13.1,BLACK

92027-1450

$4.67

92075

DAMPER,10X24X12

92075-1690

$3.81

92171

CLAMP

92171-0791

$5.56

92172

SCREW,6X14

92172-0004

$1.98

92210

NUT

92210-1125

$3.63

92210A

NUT

92210-1323

$3.19
